37-100-M24X2-70-A GN 37-A without rubber underlay

37-100-M24X2-70-A GN 37-A without rubber underlay

with central fastening hole
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 37-100-M24x2-70-A
d1
100
d2
M 24 x 2
l1
70
d3 H13
11
l2 ≈
30
l3
17.5
A/F 1
19
A/F 2
19
Static load F
in kN
50
weight
664

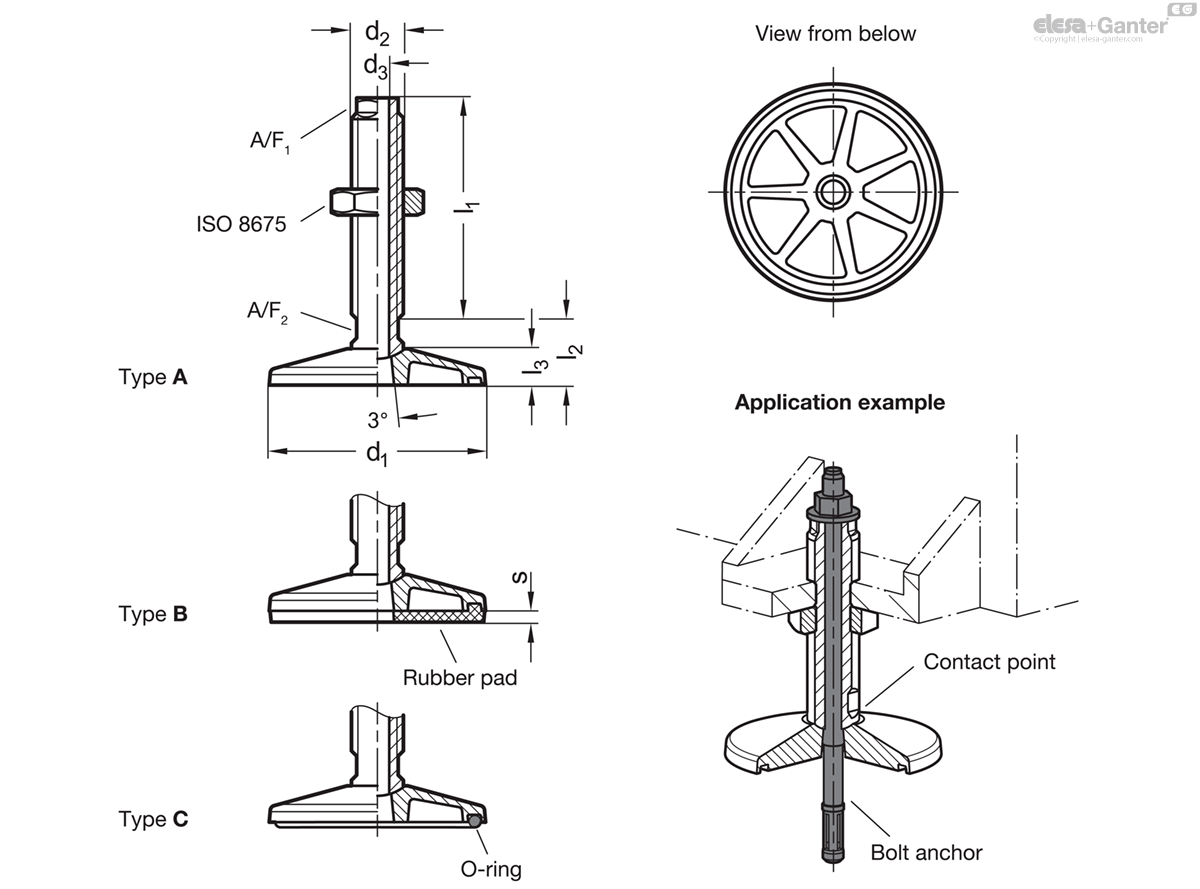

37-100-M24X2-70-A drawing

Types (Foot plate)

  • Type A: without rubber underlay
  • Type B: with rubber underlay
  • Type C: with O-ring

Foot plate

Steel, plastic coated

black, RAL 9005, textured finish

Threaded studs / Hexagon nut ISO 8675

Steel, zinc plated, blue passivated

Rubber underlay, inlaid

black, NBR

85±5 Shore A

O-ring, inlaid

black, NBR

≈ 70 Shore A

Machine feet GN 37 are characterized by their solid construction and large variety. They are used especially on large and heavy systems and machines. The through-hole allows the machine feet to be attached centrally to the ground, making them ideal for compressive and tensile loads.

Foot plates and threaded studs are not connected together, during setup they are automatically centered by the radius at the contact point.

Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot. When used in conjunction with a collection pan, lubricants for example cannot escape to reach the underlying surface.
