827-M10X1-80-NG-S GN 827 Stainless Steel-Adjusting screws

827-M10X1-80-NG-S

GN 827 Stainless Steel-Adjusting screws

for bearing blocks GN 828
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 827

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 827-M10x1-80-NG-S
d1
M10x1
l1
80
d2 -0.4/-0.6
10
d3
16
d4
24
l2 +0.1
15.1
l3
18
l4
5.9
s
8
106

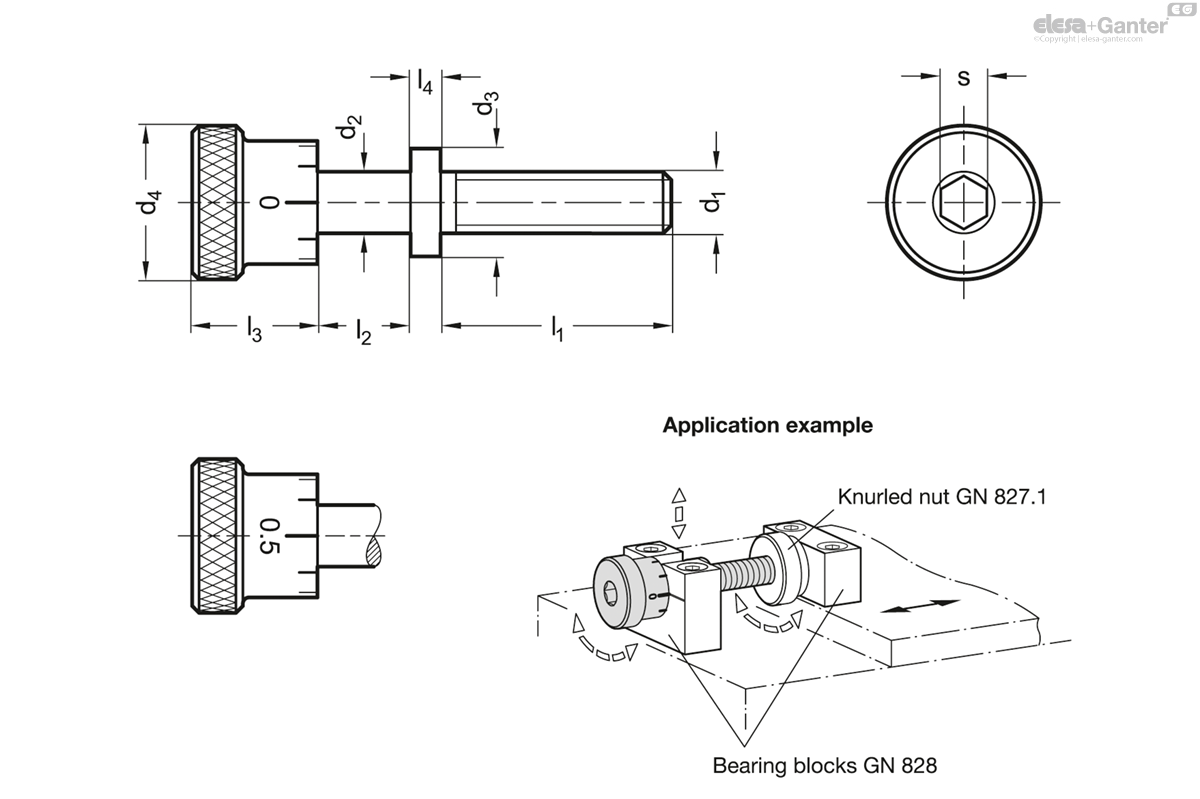

827-M10X1-80-NG-S drawing

Coding

Coding S: with standard scale 0...0,5, 10 graduations

Stainless Steel AISI 303 NG

matte shot-blasted

Scale

laser-engraved, black discharged

Stainless Steel-Adjusting screws GN 827 are used in combination with bearing blocks GN 828 for simple adjustment and positioning tasks.

For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
