1804.2-M14X1,5-ST GN 1804.2 Slotted locknuts

1804.2-M14X1,5-ST

GN 1804.2 Slotted locknuts

with thread locking
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 1804.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 1804.2-M14x1,5-ST
d1
M14x1.5
d2
30
d3
25
d4
M4
b
5
h
7
Code no. for
C-Spanner
DIN 1810-A30-32
28

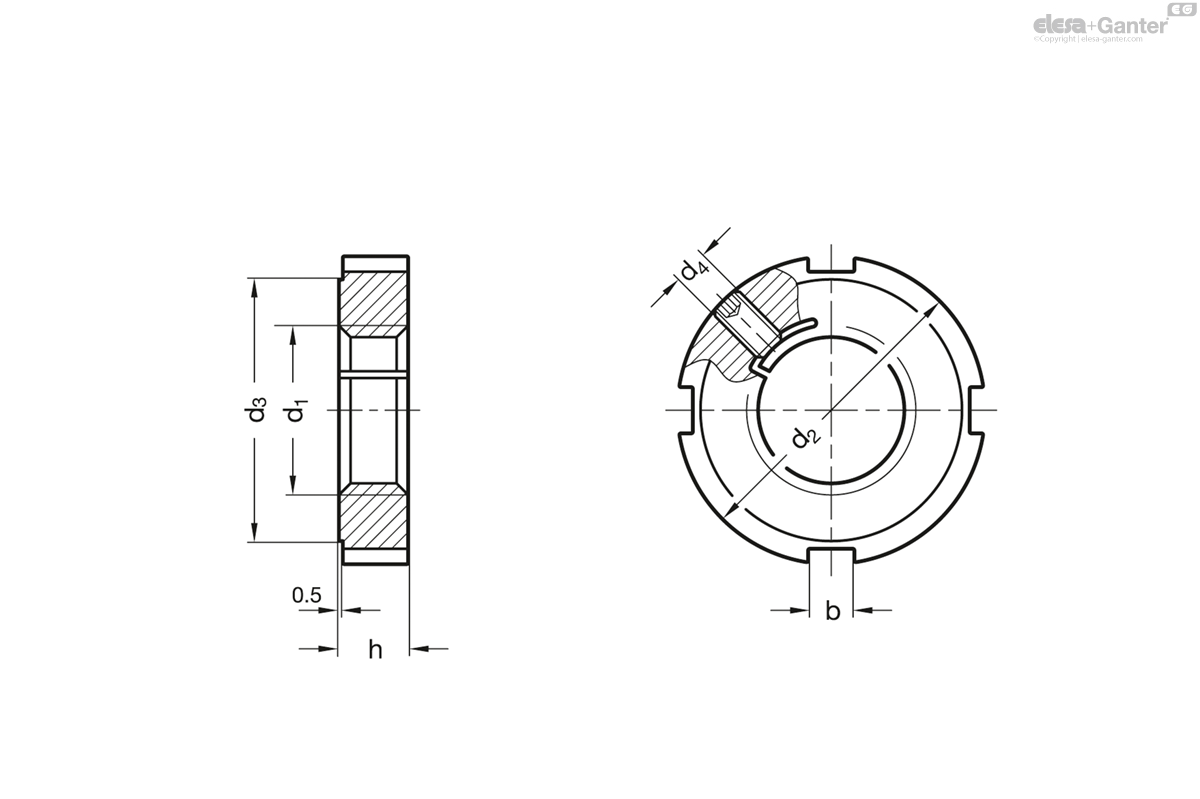

1804.2-M14X1,5-ST drawing

Nut

Steel ST

  • Tensile strength class 5.8
  • blackened

Set screw

Steel, blackened

GN 1804.2 slotted locknuts with thread locking can be secured against twisting by twisting off the threaded shaft via a d4 set screw. The thread flanks of the nut ensure damage-free securing and can be used as often as needed.

The d3 offset plane surface is intended as an axial contact surface.

  • C-Spanner DIN 1810 (Code no. see table)
