417.1-4-ST-SW GN 417.1-ST Steel
Steel / Stainless Steel, for Indexing Plungers GN 417
Expected delivery time 5-7 working days
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 417.1-4-ST-SW

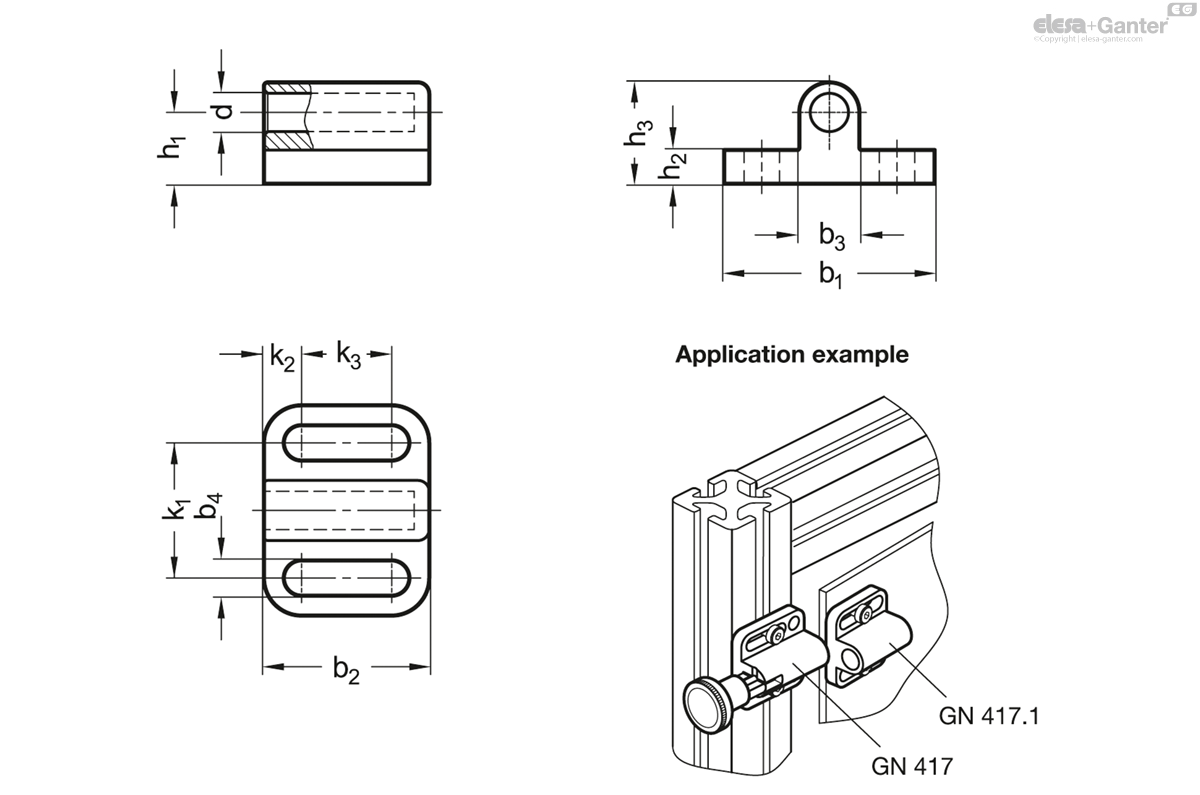

- d Nominal dimension
- 4
- d
Actual dimension +0.1 - 4.1
- b1
- 22
- b2
- 16.5
- b3
- 6
- b4 -0.2
- 3.3
- h1
- 7
- h2
- 4
- h3
- 10
- k1
- 14
- k2
- 4
- k3
- 8.5
- 10
Version in Steel precision casting ST
Powder coated
Black, RAL 9005, textured finish SW
Version in Stainless Steel precision casting NI
AISI CF-8
Blank, matte shot-blasted GS
Locators GN 417.1 are used for positioning the indexing pins of indexing plungers GN 417.
They are mounted using slots that permit adjustment parallel to the mounting hole. For example, this allows gap dimensions to be adjusted for doors or tolerance errors to be compensated. Washers make it easier to mount the parts using the slots.
