817.9-8-8-C
GN 817.9 Indexing plungers
Eta: 1-2 weeks All sizes and variants of GN 817.9
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 817.9-8-8-C
- d1 Pin -0.02/-0.05
Bore
+0.10/+0.03 - 8
- l1
- 8
- l2
- 10
- b
- 16
- d2
- 5.3
- d3
- 28
- d4
- 6
- d4 -0.05
- 6
- d5
- M 4
- d6
- 38
- k
- 26
- l3
- 25
- l4
- 58
- l5
- 26
- l6
- 8
- l7
- 39.
- l8
- 20.6
- l8 ±0.1
- 20.6
- t
- 8
- Spring load in N ≈
initial - 8.5
- Spring load in N ≈
end - 26
- 81
Types
- Type B: without rest position
- Type C: with rest position
Guide
Zinc die casting
plastic coated
black, textured finish
Pin
Stainless Steel AISI 303
Countersunk screw DIN 7991
Stainless Steel AISI 304
Knob
Plastic (Polyamide PA)
black, matt
Indexing plungers GN 817.9 have been designed such that special versions of the indexing pins can also be made economically in smaller unit quantities.

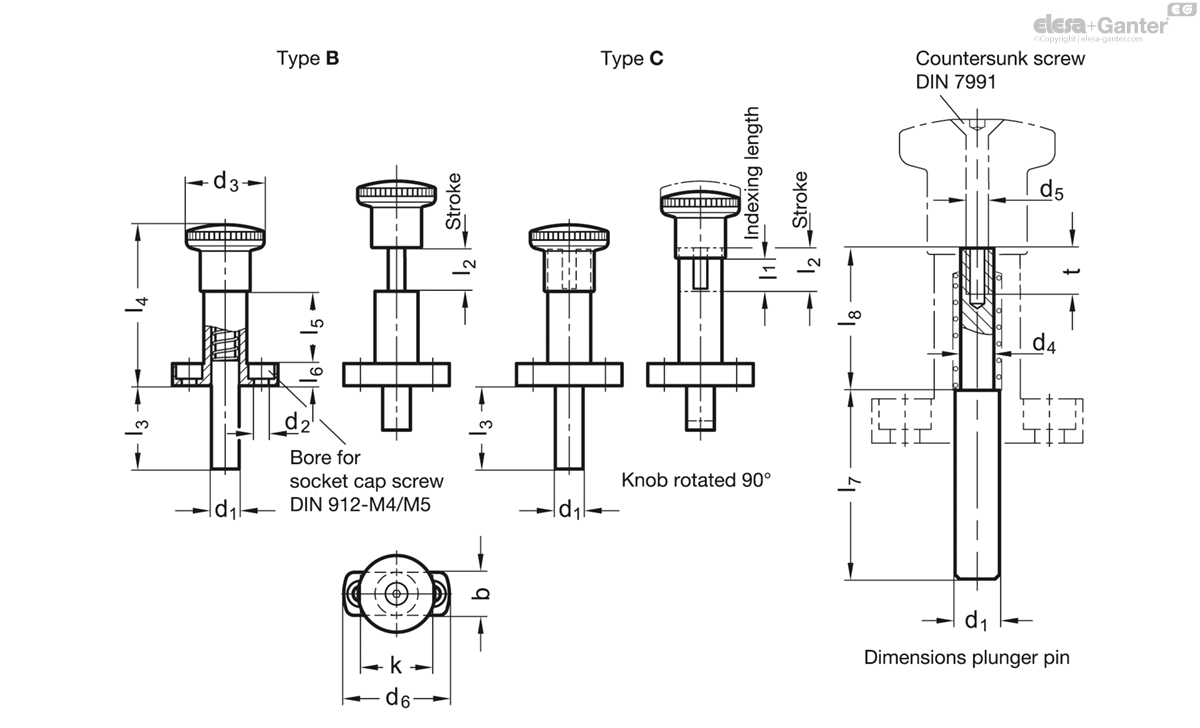

If reqired, the indexing pins can be machined or made by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be assembled several times. All parts are supplied in a non-assembled set.
The indexing plungers type C are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
