181-ZD-8-M4-SW
GN 181 Fastening Sets
Zinc Die Casting, for Cabinet U-Handles
Eta: 1-2 weeks All sizes and variants of GN 181
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

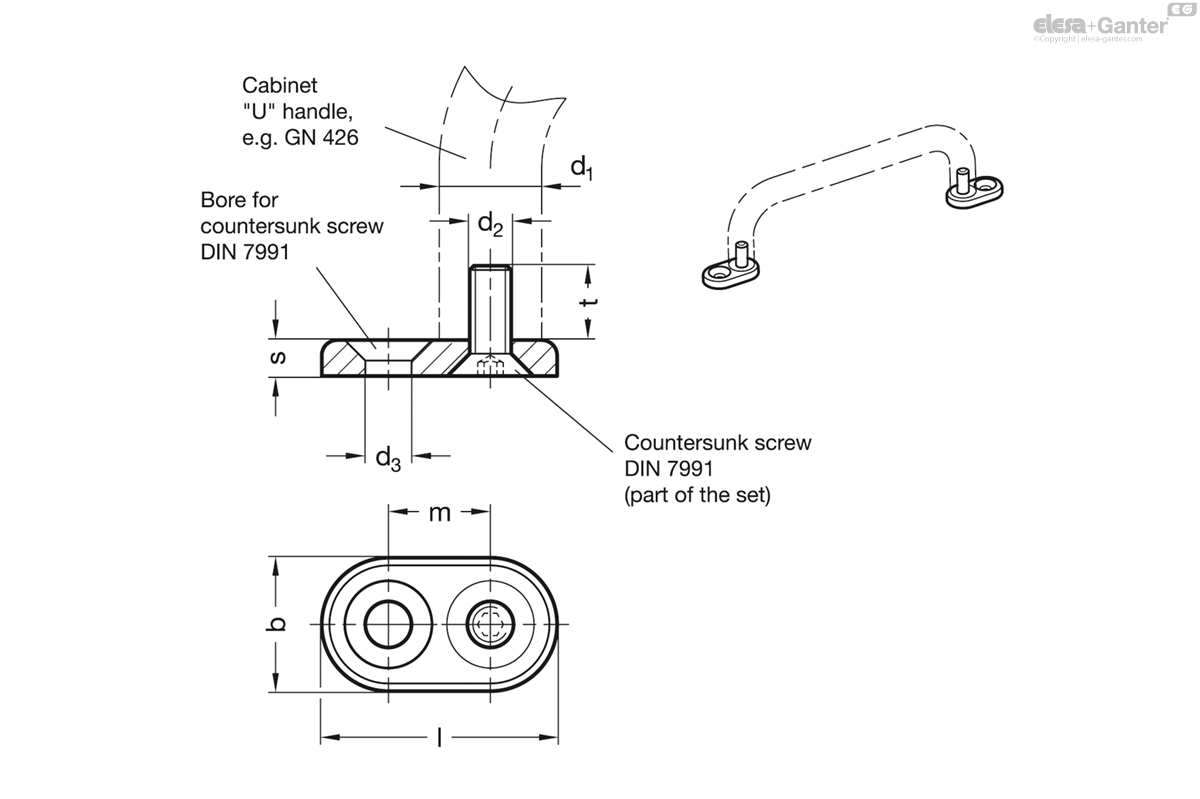

Technical datasheet
Technical data
- Catalogue
- GN 181-ZD-8-M4-SW
- d1
- 8
- d2
- M 4
- b
- 10
- d3 +0.2 / +0.5
- 4
- Länge l
- 20
- m
- 10
- s
- 3
- t
- 7
- Countersunk screw
DIN 7991 - M 4 x 10
- For cabinet U-handles
- GN 425-8-...
- 4
Fastening plates
Fastening plates
Zinc die casting ZD
Powder coated
- Black, RAL 9005, textured finish SW
- Silver, RAL 9006, textured finish SR
Countersunk screws DIN 7991
Countersunk screws DIN 7991
Steel
Zinc plated, blue passivated
Fastening sets GN 181 make it possible to mount different cabinet U-handles and tubular handles with internal thread from the operator‘s side.
The mounting position of the fastening plates is freely customizable, allowing a sideways offset or mounting with different drillhole spacings.
A fastening set consists of two fastening plates and two countersunk screws.
