3490-60-M10-24-ZB GN 3490 Threaded flanges

3490-60-M10-24-ZB

GN 3490 Threaded flanges

for profile systems
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 3490

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 3490-60-M10-24-ZB
d1
60
d2
M 10
h1
24
b
30
d3
21.5
d4
M 8
h2
6
m
40
108

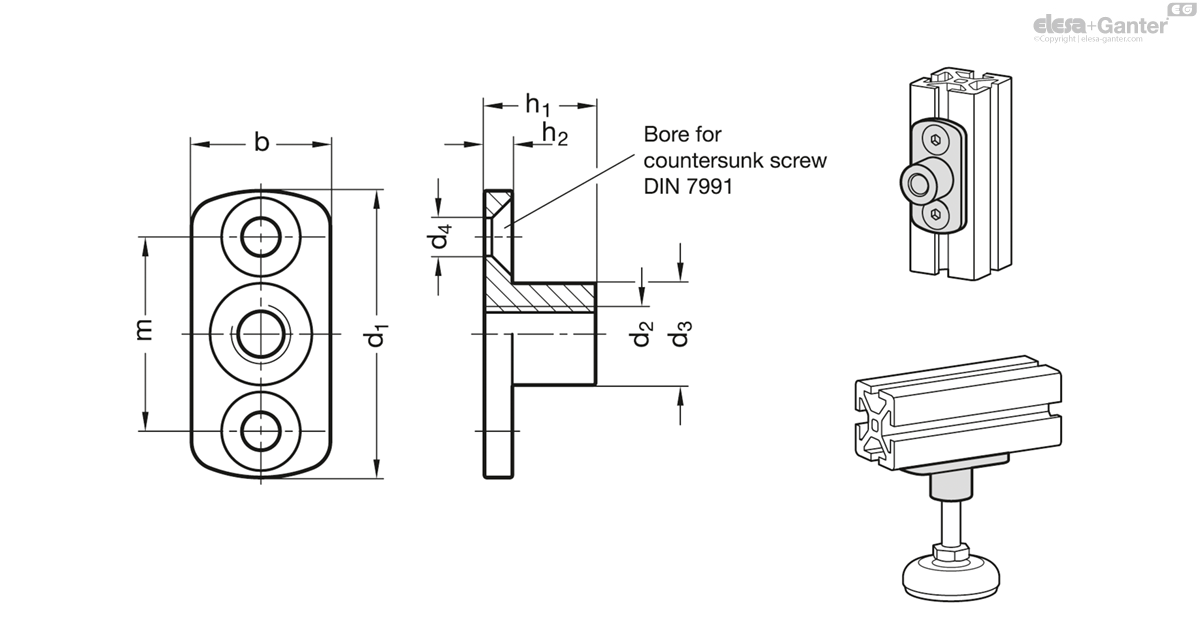

3490-60-M10-24-ZB drawing

Steel fine casting

  • zinc plated, blue passivated ZB
  • zinc plated and plastic coated black, RAL 9005, textured finish SW

Threaded flanges GN 3490 are used in connection with T-slot profile systems and allow elements to be assembled on or underneath the profiles, e.g. levelling feet.

Depending on the threaded flange, thread size and thread depth dimensions that are available can exceed the dimensions of the profile groove.
