817.4-12-15-B GN 817.4 Indexing plungers, Steel

817.4-12-15-B

GN 817.4 Indexing plungers, Steel

Steel / Stainless Steel, with T-Handle, with and without rest position
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 817.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 817.4-12-15-B
d1 Pin -0.02/-0.05 Bore H7
12
l1
15
d2
M 20 x 1.5
k
25
l2
68
l3
33
l4
10
l5
59
A/F
22
Spring load in N ≈
initial
11.5
Spring load in N ≈
end
40
119

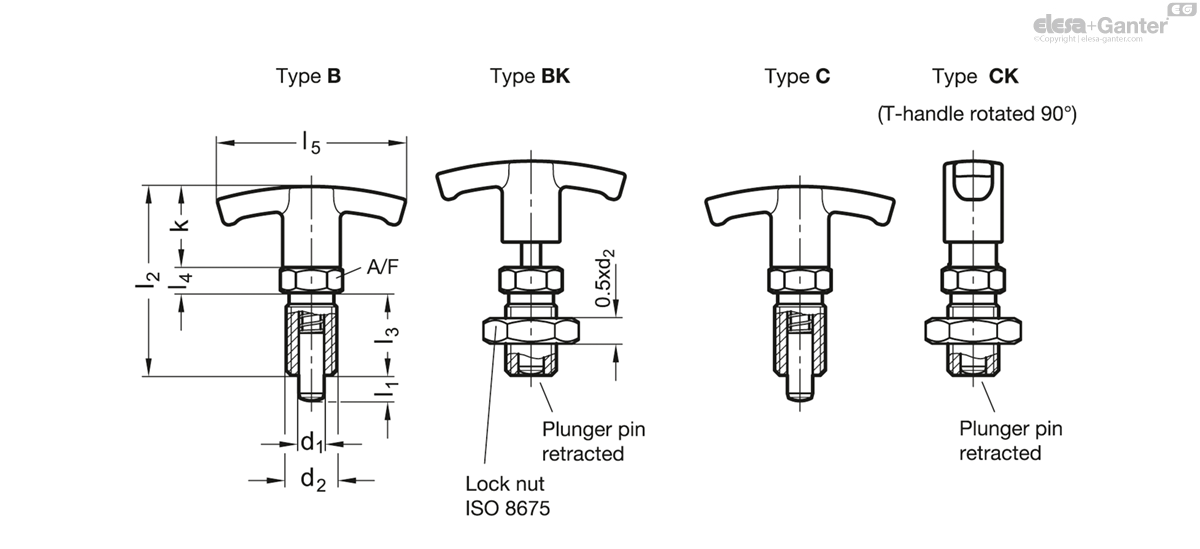

817.4-12-15-B drawing

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut

Version in Steel

  • blackened
  • Pin hardened and grounded

Version in Stainless Steel NI

  • AISI 303
  • Pin chemically nickel plated

T-Handle

Plastic Polyamide (PA)

  • not removable
  • black, matt

Indexing plungers GN 817.4 are similar to GN 817 but with a T-handle instead of a round head.

This shape allows better visual orientation of the indexing position of Type C and is advantageouse when greater unlocking forces occur.

Type C with rest position is used in such applications where the plunger must not protrude continually. In that case the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.
