436.1-28-B6-A-MT GN 436.1-A With arrow

436.1-28-B6-A-MT

GN 436.1-A With arrow

Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 436.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 436.1-28-B6-A-MT
d1
28
d2 H8 Bore
B 6
d3
26
d4
M 4
h1
27
h2
9
Length l
13
t min.
20
116

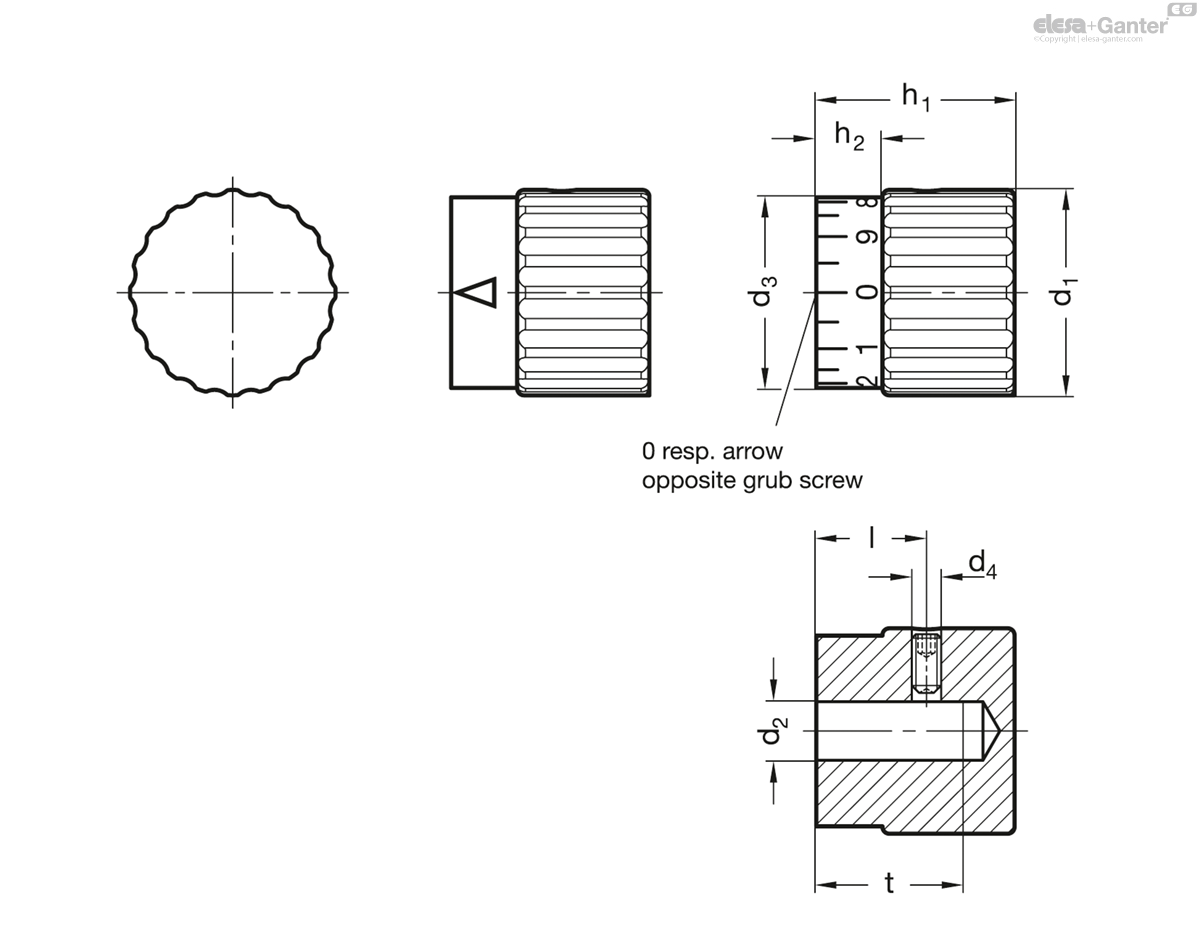

436.1-28-B6-A-MT drawing

Type

  • Type A: With arrow
  • Type B: Neutral, without arrow or scale
  • Type S: With standard scale 0...9, 20 graduations

Knob

Stainless steel AISI 304

  • Matte shot-blasted finish MT
  • Arrow for type A
  • Laser-engraved
  • Scale for type S
  • Laser-engraved

Grub screw DIN 916

Stainless steel

with internal hex and serrated point

Scale and arrow on the control knobs GN 436.1 are indelibly marked and easily legible.

Besides the standard scale (type S) the control knobs can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to Order Graduations' .

  • Special graduations (see „How to Order Graduations“)
