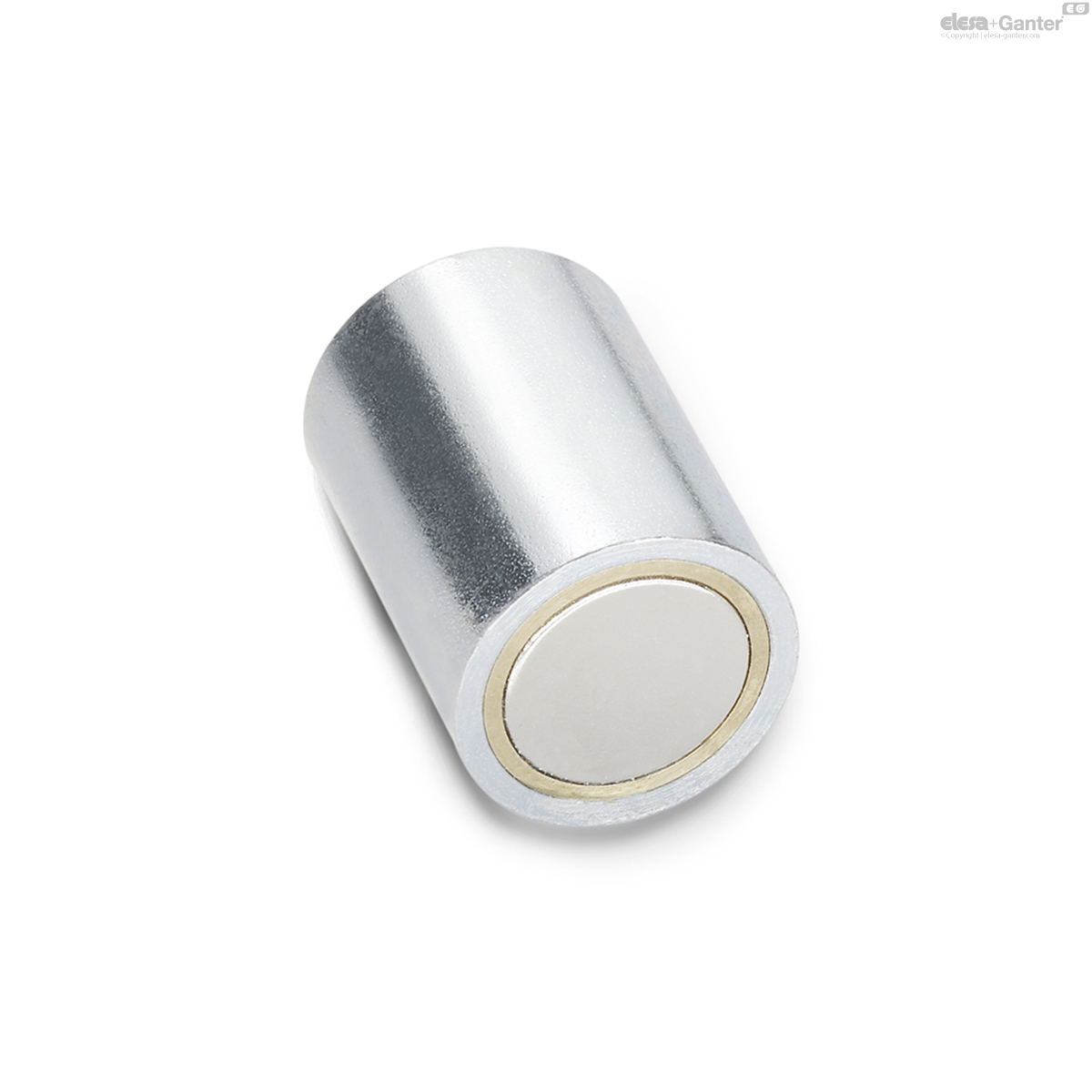

52.2-ND-40 GN 52.2 Retaining magnets

52.2-ND-40

GN 52.2 Retaining magnets

rod-shaped, with female thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 52.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 52.2-ND-40
d1 ±0.1
40
d1 ±0.2
40
h ±0.2
50
d2
M 8
t min.
12
Nominal adhesive forces in N
600
480
52.2-ND-40 drawing

Housing

Steel, zinc plated

Materials of the magnet:

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Retaining magnets GN 52.2 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
