607.4-8-8-ST GN 607.4 Indexing plungers

607.4-8-8-ST

GN 607.4 Indexing plungers

for welding, without rest position
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 607.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 607.4-8-8-ST
d1 Pin -0.02/-0.05
Bore
+0.30/+0.25
8
l1
8
b +0.3
20
d2 -0.02/-0.1
12
d3
31
d4
25
l2
44
l3
2
l4
6.5
l5
8
Spring load in N ≈
initial
15
Spring load in N ≈
end
29
Axial load in N
500
55

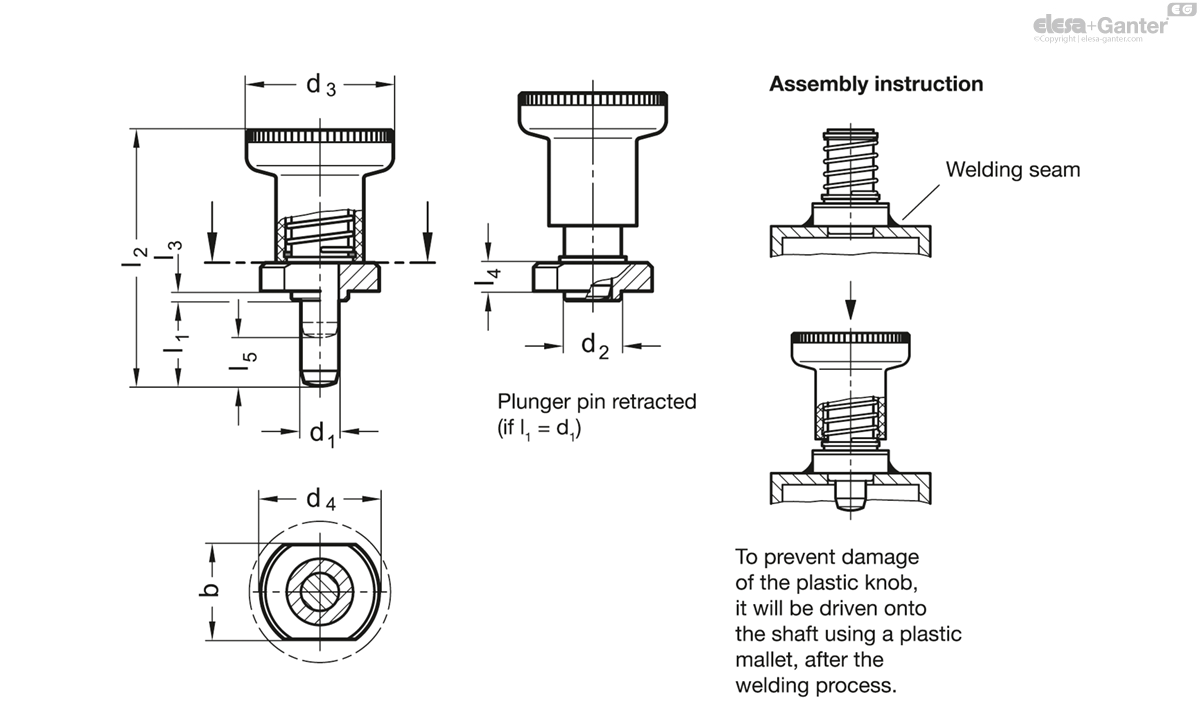

607.4-8-8-ST drawing

Steel ST

  • blackened
  • Pin hardened

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.4 are designed for welded fixing, in particular for use in steel square tubings.

The lug d2 is intended for positioning.

The plastic knob with the in-moulded indexing pin is driven on after the welding process.
