441-40-G1-1-SW GN 441 Threaded plugs

441-40-G1-1-SW

GN 441 Threaded plugs

Resistant up to 100 °C, Aluminium
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 441

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 441-40-G1-1-SW
d1
40
d2
G 1
d4
M 5
l1 ±0.5
32.5
l2
11
l3
18
s
7
t min.
8
48

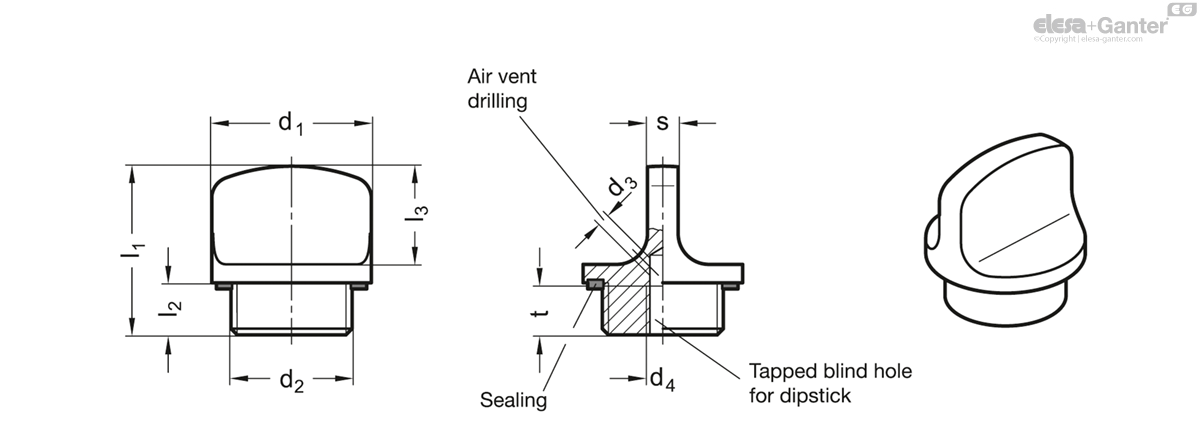

441-40-G1-1-SW drawing

Identification no.

  • No. 1: without vent hole
  • No. 2: with vent hole

Aluminium

plastic coated

black, RAL 9005, matte finish SW

blank BL

tumbled

temperature resistant up to 100 °C

Sealing ring rubber NBR (Perbunan)

Threaded plugs GN 441 with the external diameter d1 match the screw-in holes for DIN 3852 pipe bolt connections.

The sealing ring is embedded in a radial recess on the plane side, which makes the sealing ring captive and cannot be squeezed out during tightening. The sealing is also relatively soft, enhancing the sealing effect also on uneven surfaces.

  • Threaded plugs with dipstick
