99-160-M20-N DIN 99 Clamping levers, Steel

99-160-M20-N

DIN 99 Clamping levers, Steel

Steel / Stainless Steel
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of DIN 99

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 99-160-M20-N
d1
M 20
b
30
d3
25
d4 ≈
29.5
d5 -0.2
40
h ≈
76
l2 ≈
152
570

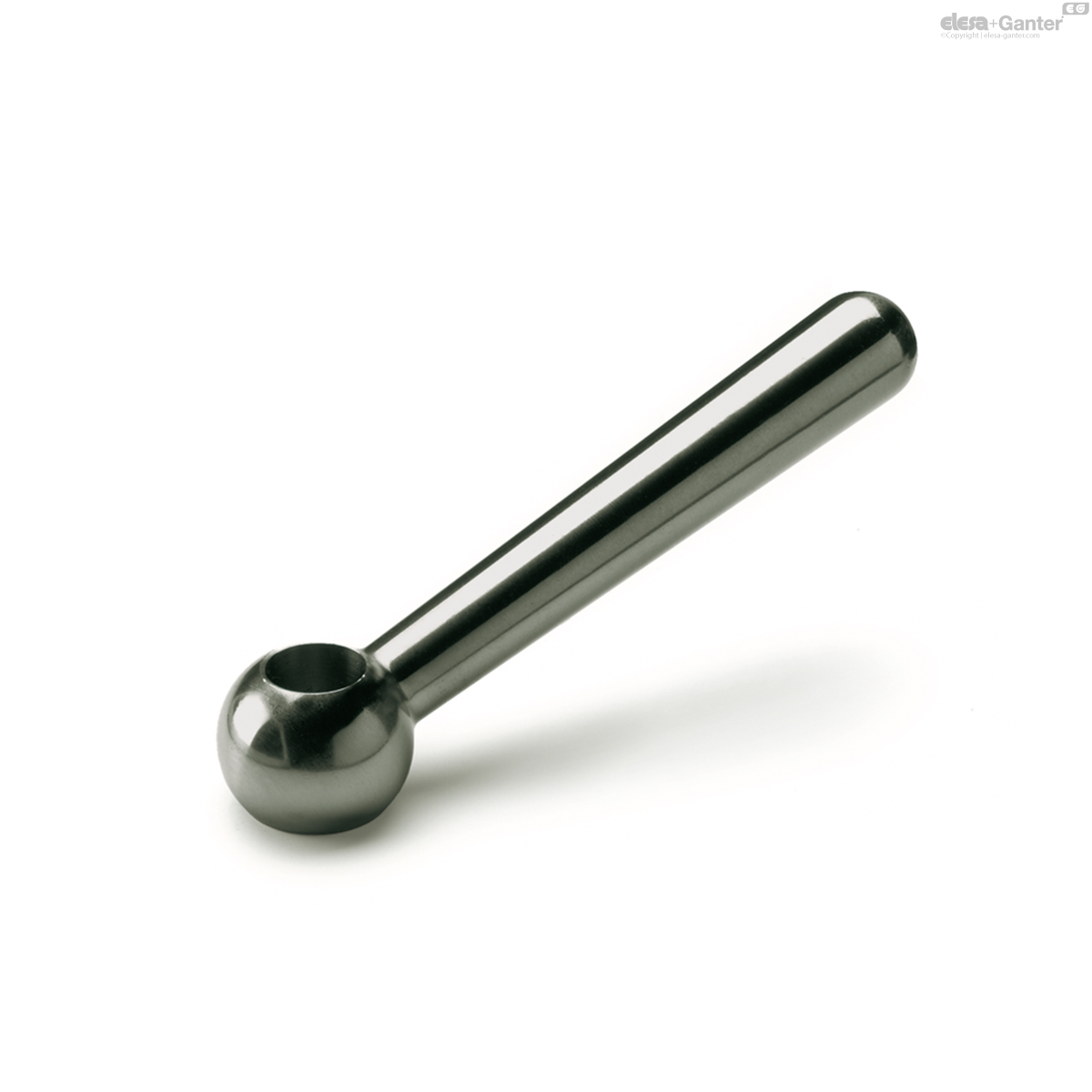

99-160-M20-N drawing

Types

  • Type K*: Straight lever with plain bore H7 (only l1 = 50 to 160)
  • Type M*: Straight lever with threaded bore H7 (only l1 = 50 to 160)
  • Type L: Angled lever with plain bore H7
  • Type N: Angled lever with threaded bore

* only Steel version.

Version in Steel

  • turned
  • blackened

Version in Stainless Steel

Stainless Steel AISI 303 NI

matt shot-blasted

The official DIN standard sheet specifies additional sizes 40 - M5 / B5.

Stainless Steel-Lever handles with straight lever
