804-M6-50 GN 804 Toggle clamp spindle assemblies

804-M6-50

GN 804 Toggle clamp spindle assemblies

with adjustable spring loaded thrust pad
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 804

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 804-M6-50
d1
M 6
l ±1
50
d2
16
d3
13
h
15
m
4
A/F
16
35

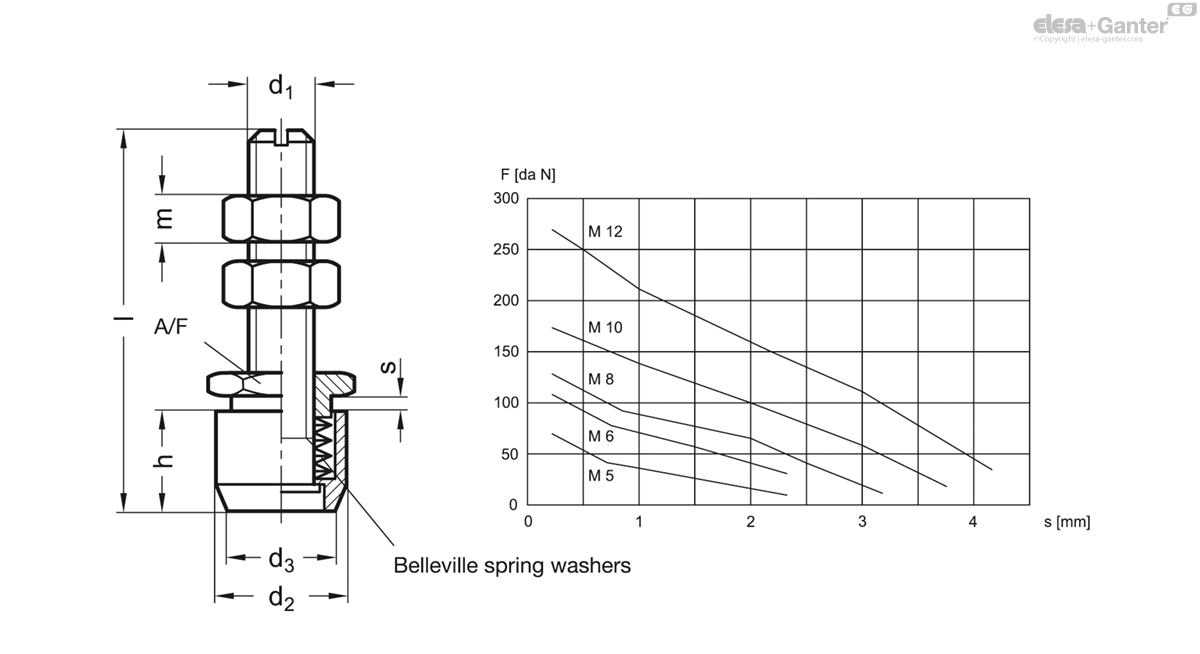

804-M6-50 drawing

Spindle

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Hexagon nuts ISO 4032

Steel

zinc plated, blue passivated

Thrust pad

Steel

nitrided, blackened

In order to pass the dead centre point and / or compensate for work piece tolerances when using hand operated toggle clamps, an elastic thrust pad such as GN 708.1- can be used.

GN 804 toggle clamp spindle assemblies fitted with Belleville spring washers do not only help to overcome workpiece tolerances but they also allow presetting of the required clamping force.

This adjustment can be made with the hexagon nut (A/F). The setting nut stroke is the distance by which the Belleville spring washers can be preloaded as shown on the graph to give the required clamping force.

The thrust pad is movable.

The two hexagon nuts are included parts of the order.
