729-34-B6
GN 729 Control Knobs
Aluminum
Eta: 1-2 weeks All sizes and variants of GN 729
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 729-34-B6
- d1
- 34
- d2 H8
- B 6
- b
- 28
- d3
- M 5
- d4
- 6
- d5
- 20
- l1
- 20
- l2
- 7.5
- t1 min.
- 14
- t2 +0.2
- 4
- s +0.3/+0.1
- 4
- 43
Knob
Knob
Aluminum
- Anodized, black
- Indexing line
- White
- Laser-engraved
Grub screw DIN 916
Grub screw DIN 916
Stainless Steel
with internal hex and serrated point

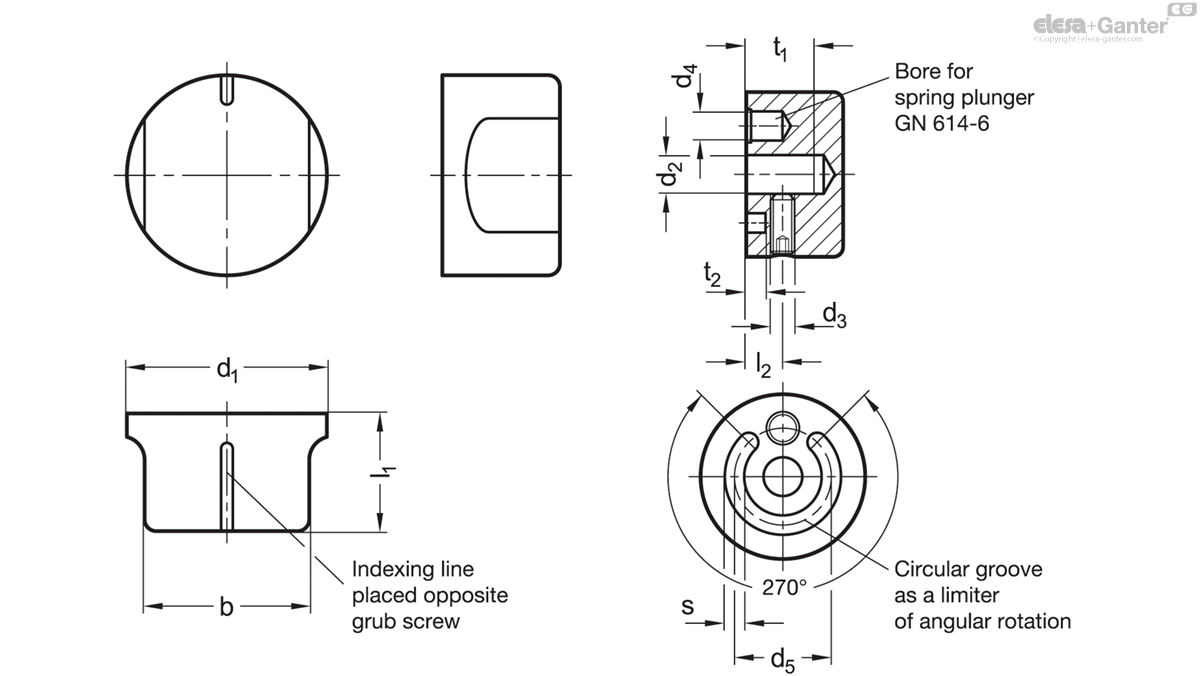

Control knobs GN 729 are usually selected for applications which require a limited movement within 180°.
With the aid of limiting pins which protrude into the circular groove the angle of rotation can be restricted. The bore d4 is for a spring plunger GN 614 to act as a simple detent.
The indexing line is indelible and visible from two sides.
- GN 826 Clamping Elements (for Adjustable Spindles)
