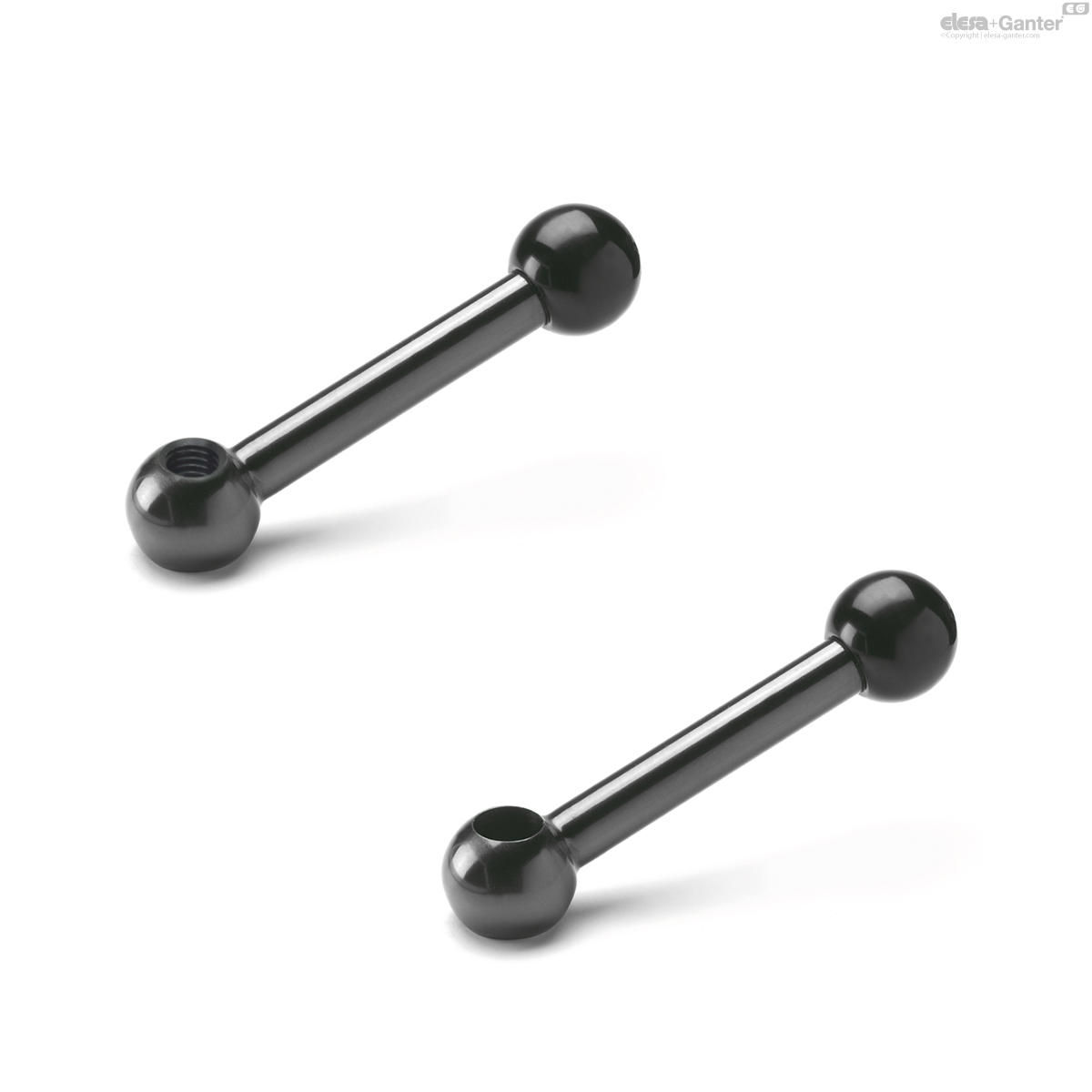

6337-160-B20-L DIN 6337 Ball Levers

6337-160-B20-L

DIN 6337 Ball Levers

Steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6337

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6337-160-B20-L
l1
160
d2 H7
B 20
b
30
d3
40
d4
31
d5
40
d6
18
h ≈
80
l2 ≈
152
415

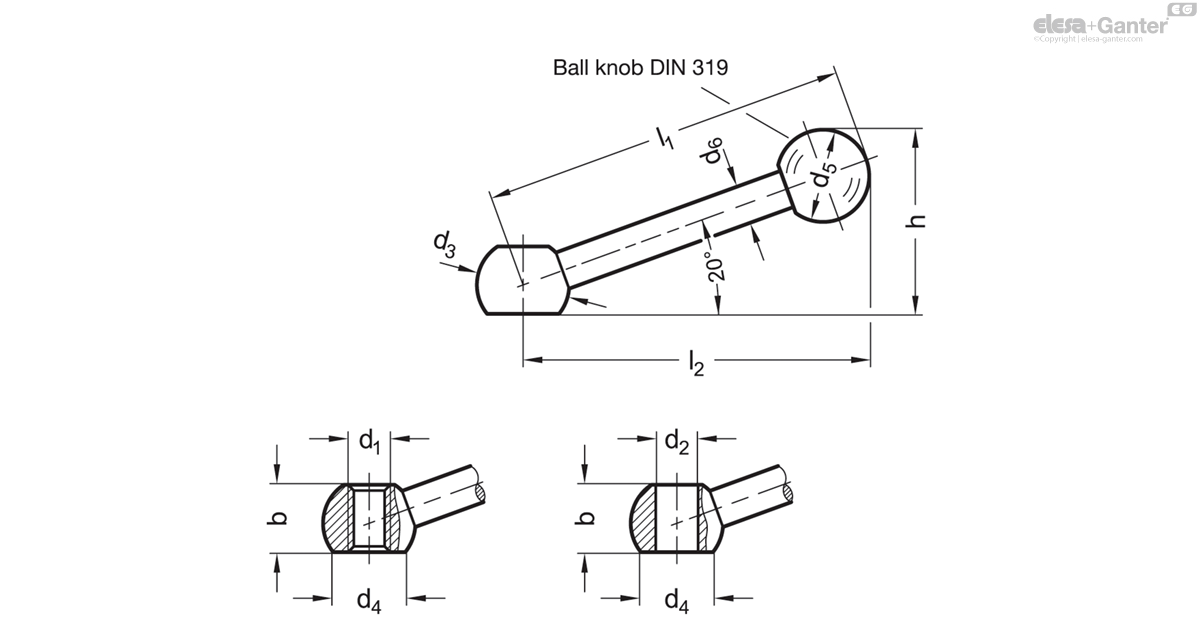

6337-160-B20-L drawing
* not available from stock, requires a minimum order quantity.

Types

  • Type L: Angled lever with plain bore
  • Type N: Angled lever with threaded bore

Steel

  • Turned
  • Blackened

Ball knobs DIN 319

Plastic, black

The official DIN standard sheet specifies additional sizes 200 - M24 / B24.
