DIN 6311 Steel
for Grub Screws DIN 6332, for Tommy Screws DIN 6304 / DIN 6306, Steel / Stainless Steel
In stock All sizes and variants of DIN 6311
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- DIN 6311-32-S
- d1
- 32
- d2 +0.2
- 12.1
- d3
- 22
- e ≈
- 5.4
- h1
- 15
- h2
- 7
- 58
Type
- Type S: With snap ring
Thrust pad
- Steel
- Case-hardened
- Blackened
- Stainless steel AISI 440B NH
- Hardened
Snap ring
Spring steel wire

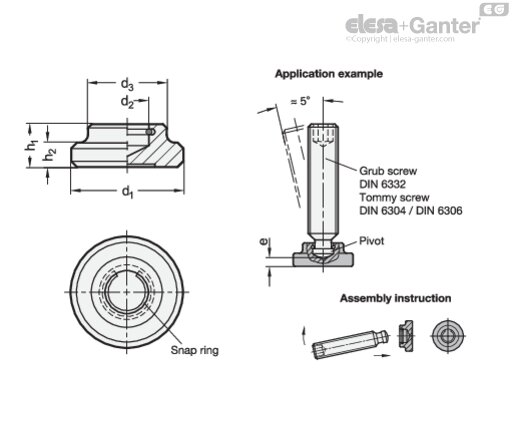

Thrust pads DIN 6311 are used with grub screws DIN 6332 and tommy screws DIN 6304 or DIN 6306 . Due to the pivoting connection between the thrust pin and thrust pad, they adapt to clamping surfaces that are uneven or not perpendicular to the screw axis, and at the same time prevent transmission of the rotational movement of the screw to the clamping surface during clamping.
Assembly is made easier if the thrust pin is positioned at an angle against the closed side of the snap ring and then pressed it in, see assembly instruction.
