350.3-25-ST GN 350.3-ST Steel

350.3-25-ST

GN 350.3-ST Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 350.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 350.3-25-ST
d1
25
d2
8.5
d3
15
h ±0.5
8
for thread
up to max.
M 8
Static load
in kN
40
20

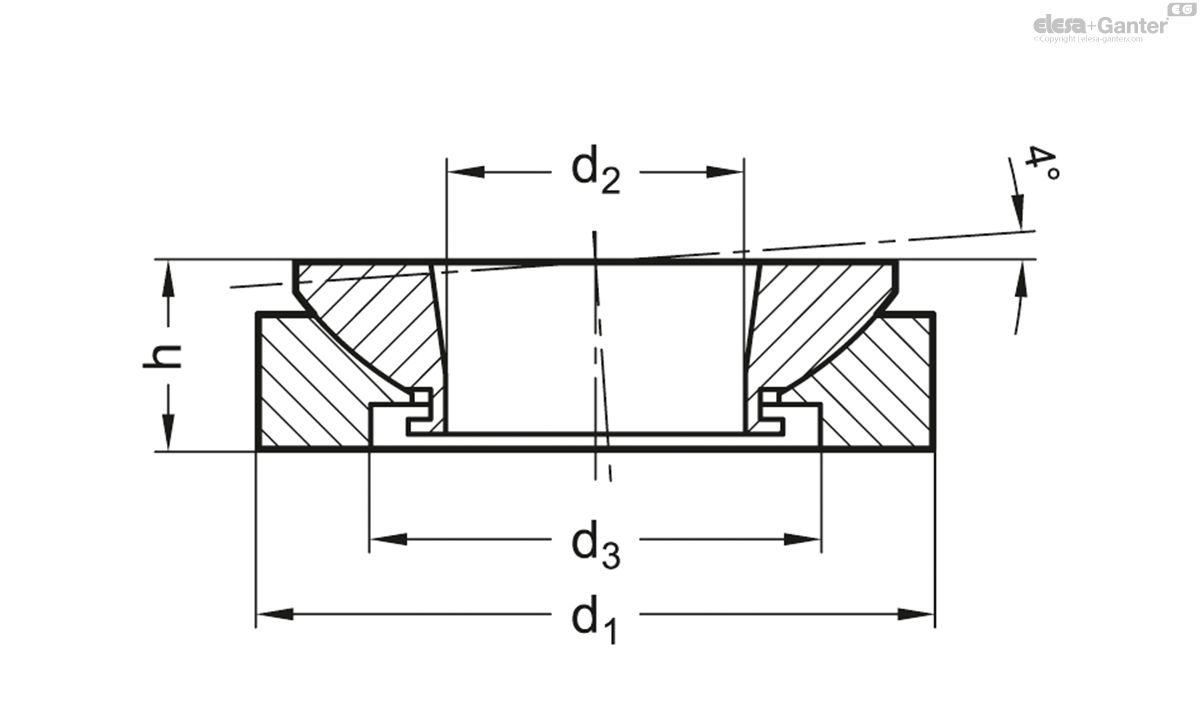

350.3-25-ST drawing

Steel 1.7225 (42 CrMo 4 V) ST

Zinc plated, blue passivated

Stainless steel AISI 303 (X 10 CrNiS 18-9) NI

Spherical leveling washers GN 350.3 have been designed to match the leveling sets GN 350, GN 350.1, GN 350.2and GN 350.5.

The two spherical washers are used together „undetachably“.

The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched sphere of the concave „pan“.

Furthermore it is recommended using high-strength washers for bridging d2.
