252-M12X1,5-A

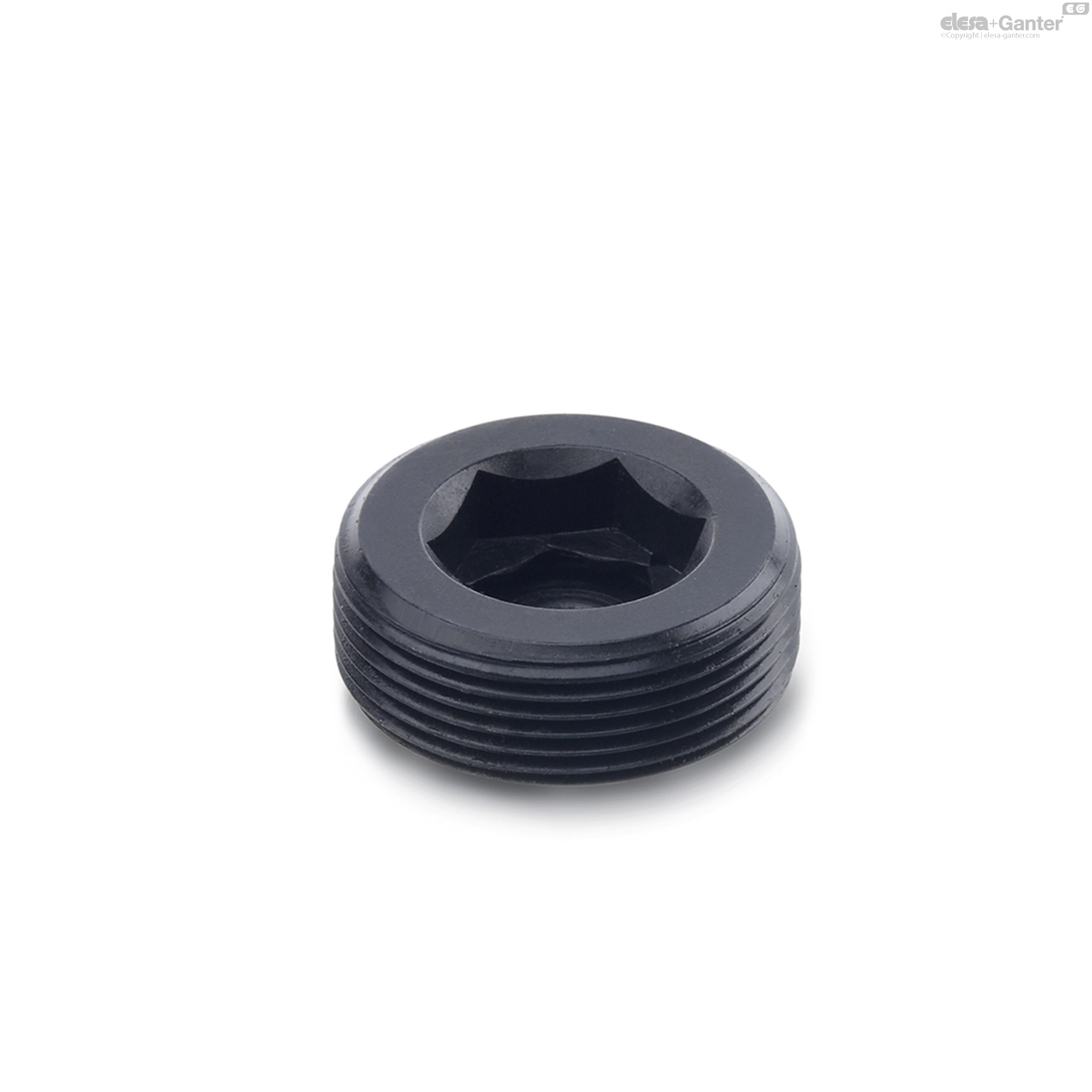

GN 252 Blanking plugs
Eta: 1-2 weeks All sizes and variants of GN 252
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

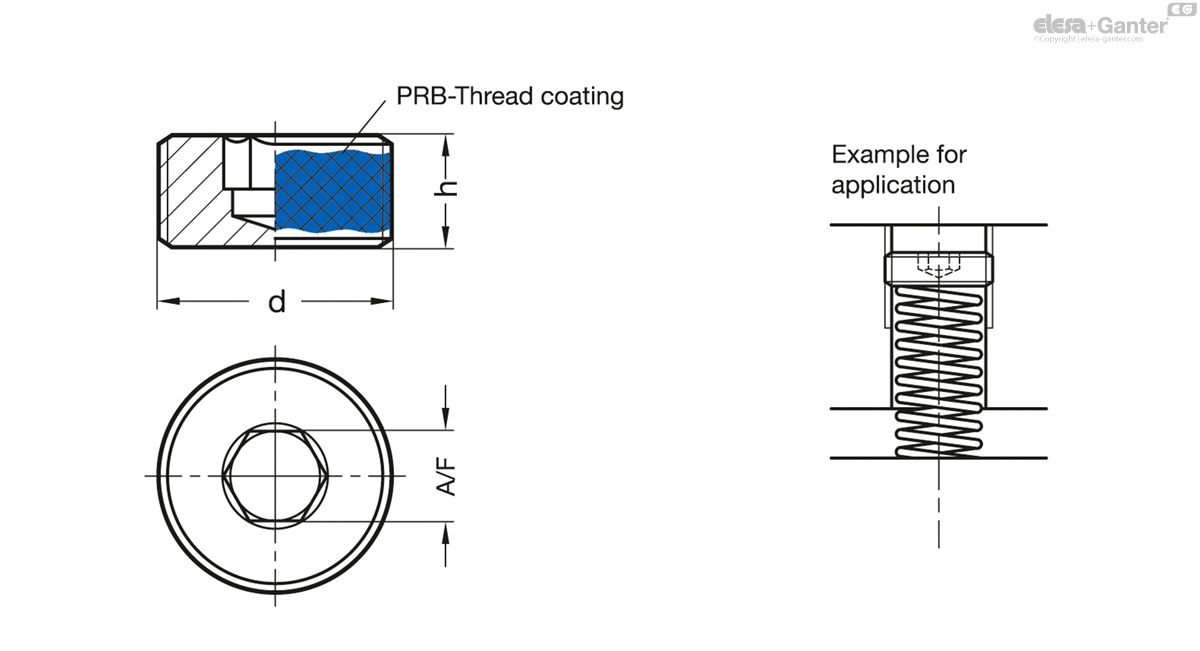

Technical datasheet
Technical data
- Catalogue
- GN 252-M12x1,5-A
- d
- M 12 x 1.5
- h
- 10
- A/F
- 6
- 6
Types
- Type A: without thread coating
- Type PRB: with thread coating (polyamide allround coating)
Steel
- Tensile strength class 5.8
- blackened
The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
