251.2-M10-25-O GN 251.2 Setting bolts

251.2-M10-25-O

GN 251.2 Setting bolts

with limit switch
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 251.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 251.2-M10-25-O
d
M 10
l1
25
e
19.6
k
7
l2 max.
4
l3
6
s
17
80

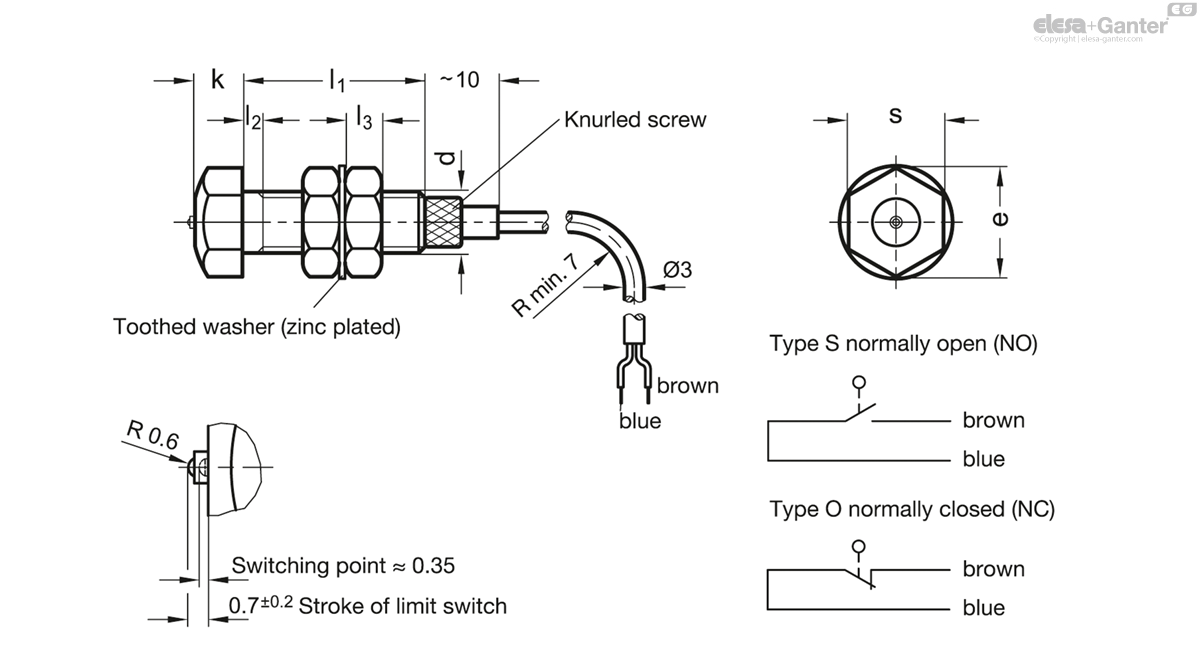

251.2-M10-25-O drawing
video

Types

  • Type S: Normally open
  • Type O: Normally closed

Bolt Steel

  • Tensile strength class 5.8
  • Hexagon head hardened to HRC 45
  • nickel plated

Hexagon nuts Steel

nickel plated

End limit switch

  • Voltage: 5 ... 24 V DC
  • Switching load recom.: 5-10 mA
  • Switching load: 20 mA DC max.
  • Life expectancy: 3 mio. operations
  • Temperature range: -10 °C ... +80 °C
  • Load: ~1 N

Supply cable PVC:

  • Ø 3 ; 2-phase, ~ 2 meters long
  • max. tensile load 30 N
  • grey for Type S (normally open)
  • black for Type O (normally closed)

Setting bolts GN 251.2 are supplied with a hardened round head which serves as a firm end stop.

In general these bolts are installed with a locknut.

When the workpiece contacts the bolt head an electrical signal is transmitted by means of the limit switch.

By means of the knurled nut, the limit switch can be installed resp. taken out without having the need to loosen the setting bolt.

Operating instructions showing more important technical information are included with every setting bolt.
