715.2-10 GN 715.2 Eccentric bushes

715.2-10

GN 715.2 Eccentric bushes

for side thrust pins GN 714 / GN 715
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 715.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 715.2-10
d1
10
d2 h9
16
d3 H7
16
d4
M 4
d5 +0.1
10.2
e
2
h min.
12
l -0.2
11.9
t
5.4
For side thrust
pin-Ø
5 6
9

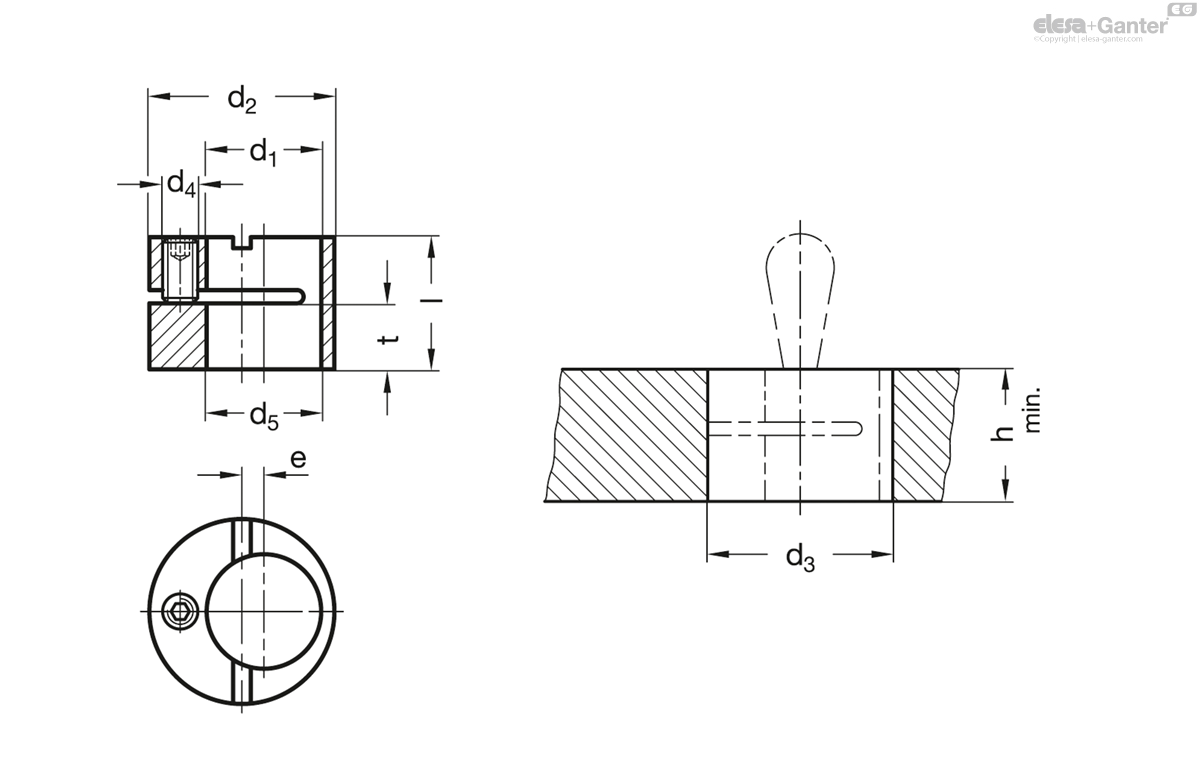

715.2-10 drawing

Steel

blackened

Eccentric bushes GN 715.2 allows side thrust pins GN 715 / GN 714 to be adjusted. These bushes allow the side thrust pin to be precisely adjused to suit the requirements for clamping of a component.
