509.3-44-A GN 509.3 Spring Rings

509.3-44-A

GN 509.3 Spring Rings

Retainers for Ball Transfer Units GN 509 / GN 509.1
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 509.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 509.3-44-A
d1
44
d3
37.3 -0.3
s1
2 ... 4
For ball transfer units
GN 509
GN 509.1
Size
22
2

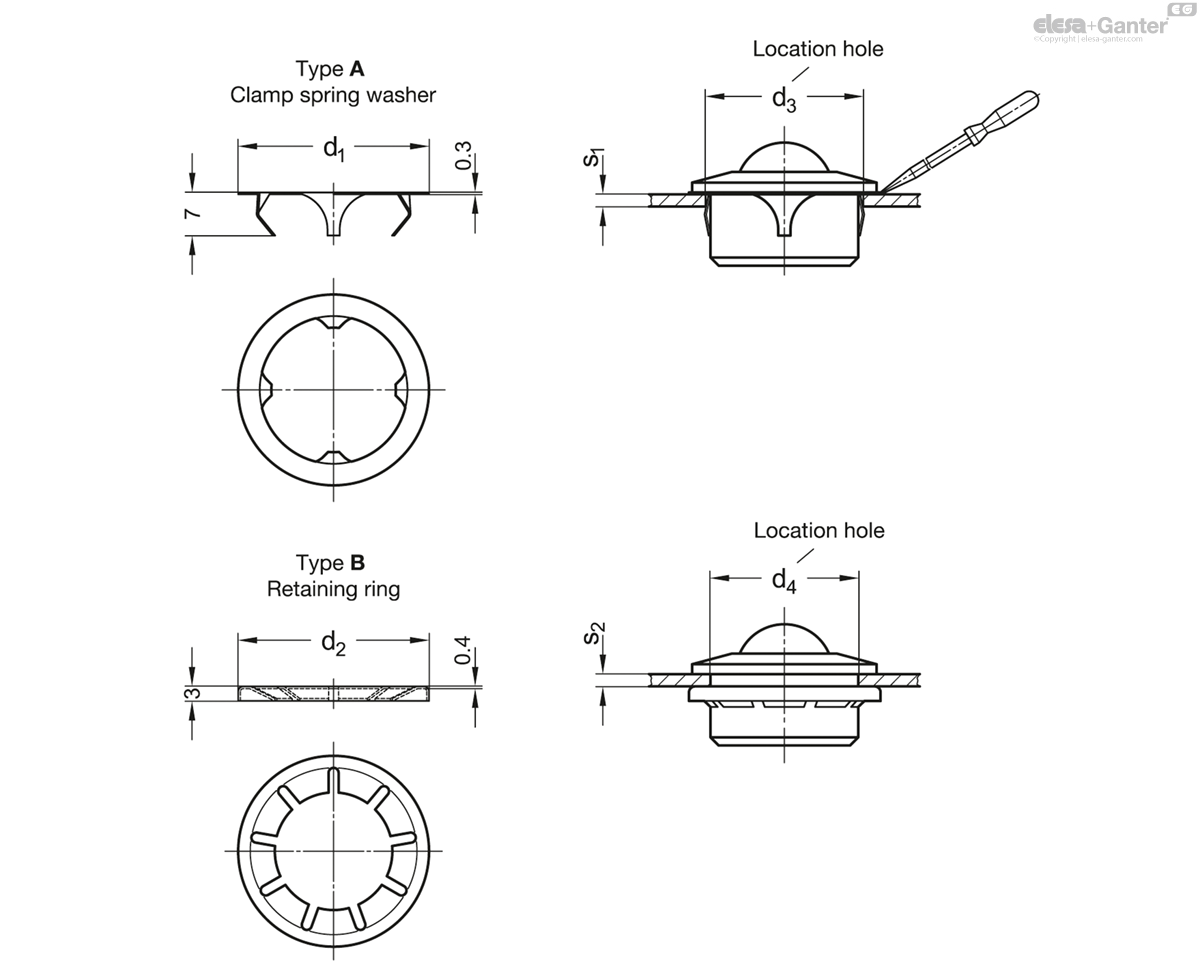

509.3-44-A drawing
* optional

Types

  • Type A: Clamp spring washer
  • Type B: Retaining ring

Type A

Spring steel

Stainless steel

Type B

Spring steel

Zinc plated

Clamp spring washers GN 509.3, type A allow ball transfers units to be mounted and removed from the installation side.

Retaining rings GN 509.3, type B are mounted from the back. Ball transfers units mounted this way can no longer be dismantled. No restrictions exist with respect to sheet metal thickness.
