CFK.49 SH-5
CFK. False hinge with single body
For CFA. and CFAX. hinges
Eta: 1-2 weeks All sizes and variants of CFK.
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

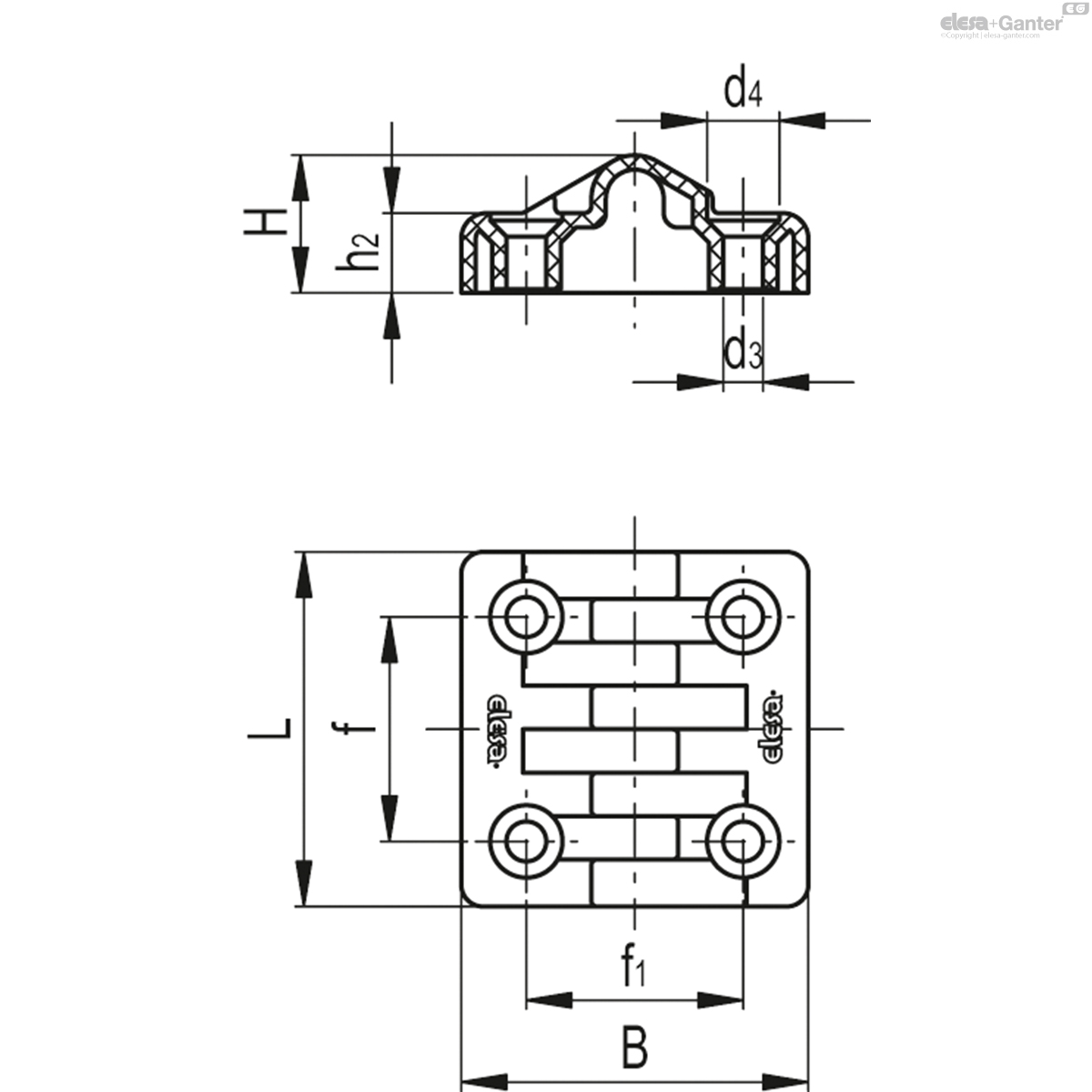

Technical data
- Catalogue
- 424811
- L
- 49
- B
- 48
- f±0.25
- 31
- f1 ±0.25
- 30
- H
- 19
- h2
- 11
- d3
- 5.5
- d4
- 10
- 12
Material
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
Standard execution
Pass-through holes for countersunk head screws.
Features and applications
False hinge made up of a single body without rotation pin. It can be used for blocking fixed panels, when you want to obtain the same general aesthetical effect.
