928-16 GN 928-ST Steel
Steel / Stainless Steel
Expected delivery time 5-7 working days
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 928-16
- d1 h11
- 16
- d2
- M 8
- d3 Round workpiece
- 20 - 30
- d4 H7
- 16
- d5
- M 5
- e +0.2
- d3/2 + 4
- l1 max.
- 48
- l2
- 16
- l3
- 8
- A/F
- 6
- Max. tightening torque
in Nm - 25
- Code no.
mounting tool - GN 928.1-6
- 52
Version in Steel
Steel
- Blackened
- Socket cap screw DIN 912
Zinc plated, blue passivated
Version in Stainless Steel
Stainless steel AISI 303 NI
Socket cap screw DIN 912
Stainless steel

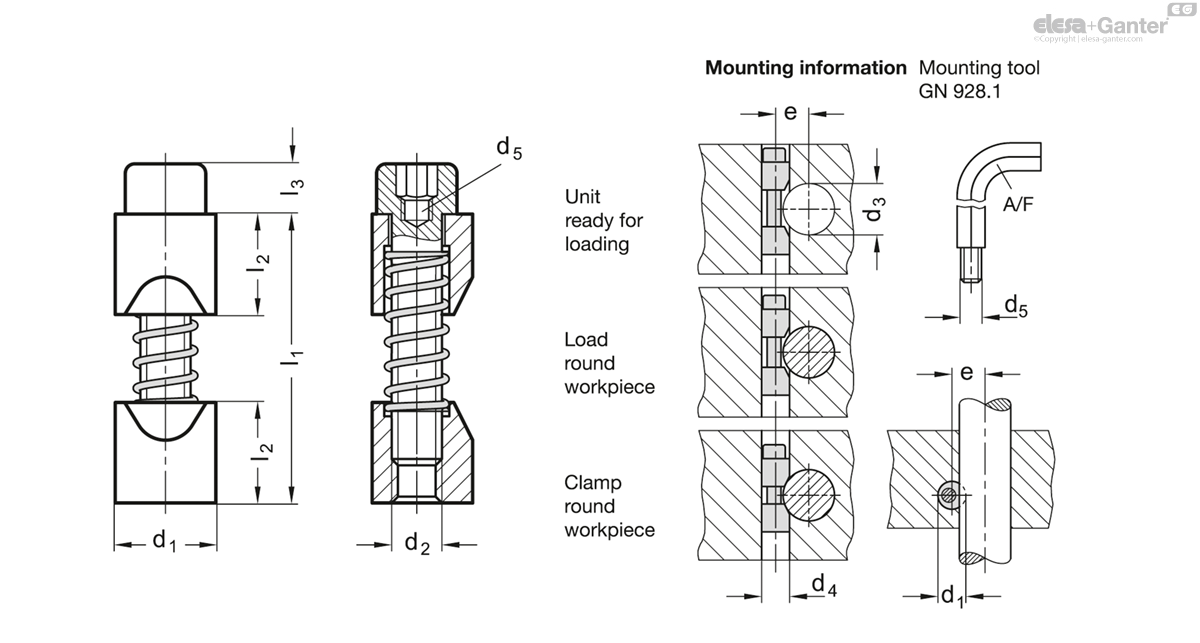

With the shaft clamping unit 'trueround' GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped.
The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
- Mounting tools GN 928.1 (Code no. see table)
