6340-8,4

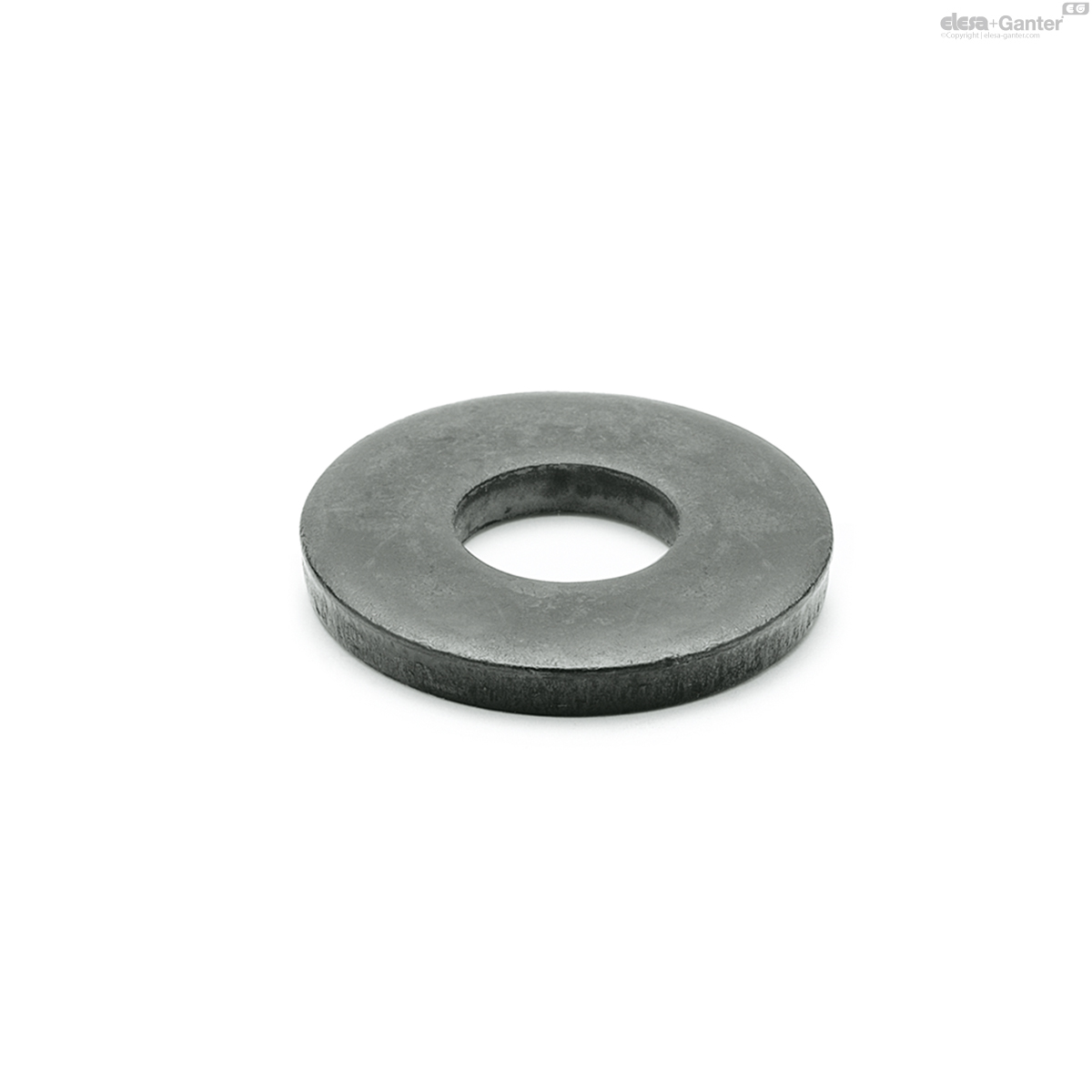

DIN 6340 Washers
In stock All sizes and variants of DIN 6340
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- DIN 6340-8,4

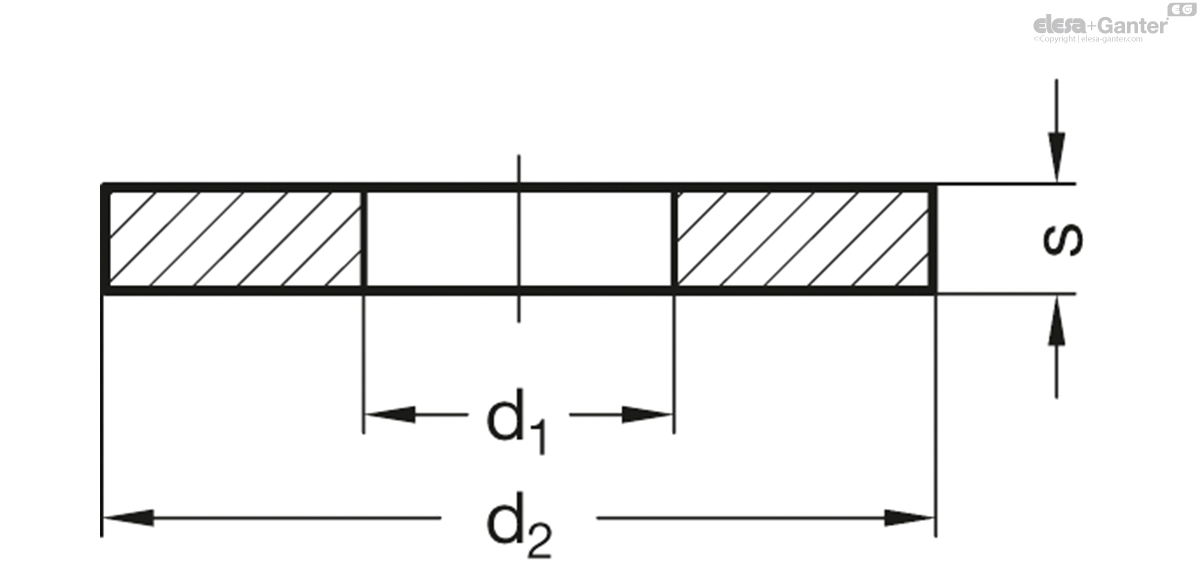

- d1
- 8.4
- d2
- 23
- s
- 4
- For threaded bolts
- M 8
- 10
Heat-treated steel
- tempered hardness (350 + 80) HV 30
- phosphate-threated
- blanked not deburred
Washers DIN 6340 are mainly used for elongated holes.
