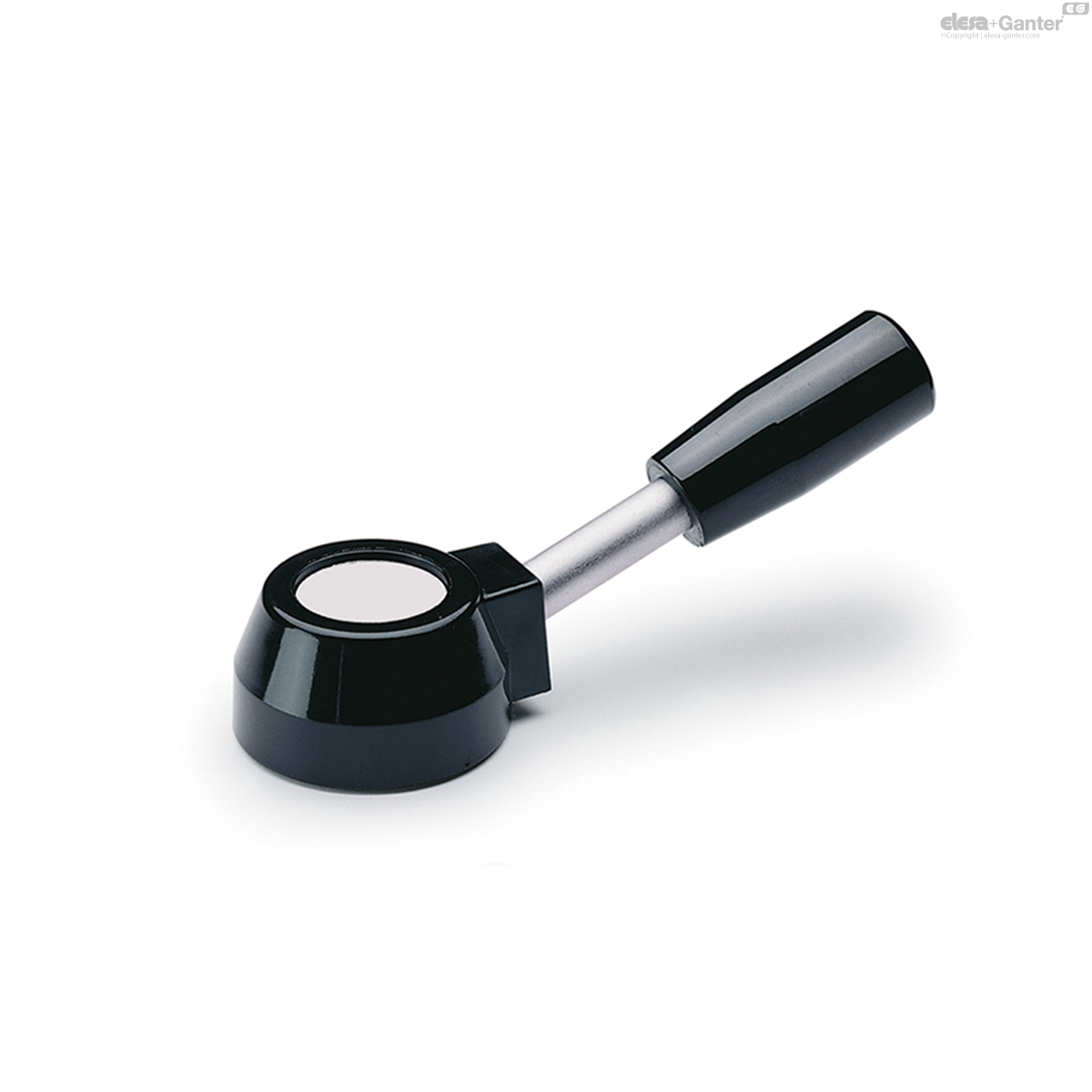

LBR.54/130 N-22 LBR-N Without boss, with plain hole and flat face

LBR.54/130 N-22

LBR-N Without boss, with plain hole and flat face

arranged for clicking operation, technopolymer
  • PA
  • RoHS
  • PF
  • g11020
  • ELE OD
  • IF79

Eta: 1-2 weeks All sizes and variants of LBR.

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
33311
D
54
dH8
22
L
125
H
66
h
21
h1
30
d2
31
d3
8
d3*
8
d4
12
d5
6.5
i
39
l
34
R
20.2
c
7.3
α
25°
β
125±1°
f+0.05
19
b
16
137

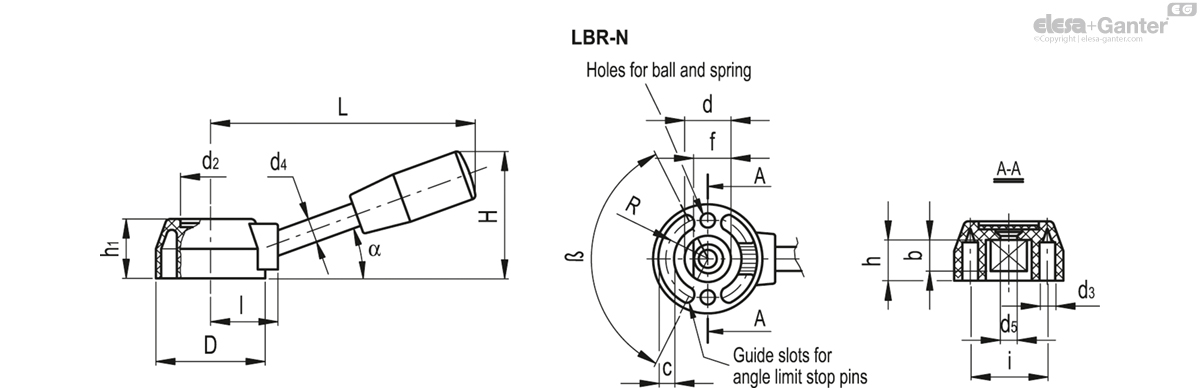

LBR.54/130 N-22 drawing
LBR.54/130 N-22 drawing
* Ball diameter

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Lever arm

Matte chrome-plated steel with cylindrical handle I.280- in Duroplast.

Self-adhesive front plate

Matte anodised aluminium to be fitted after the assembly of the lever.

Standard executions

  • LBR-A: black-oxide steel boss, H7 reamed hole.
  • LBR-N: without boss, with plain hole and flat face.

LBR.45 N and LBR.54 N: flat face opposite to the arm.

LBR.75 N: flat face in correspondance of the arm.

Manoeuvre angle limitation

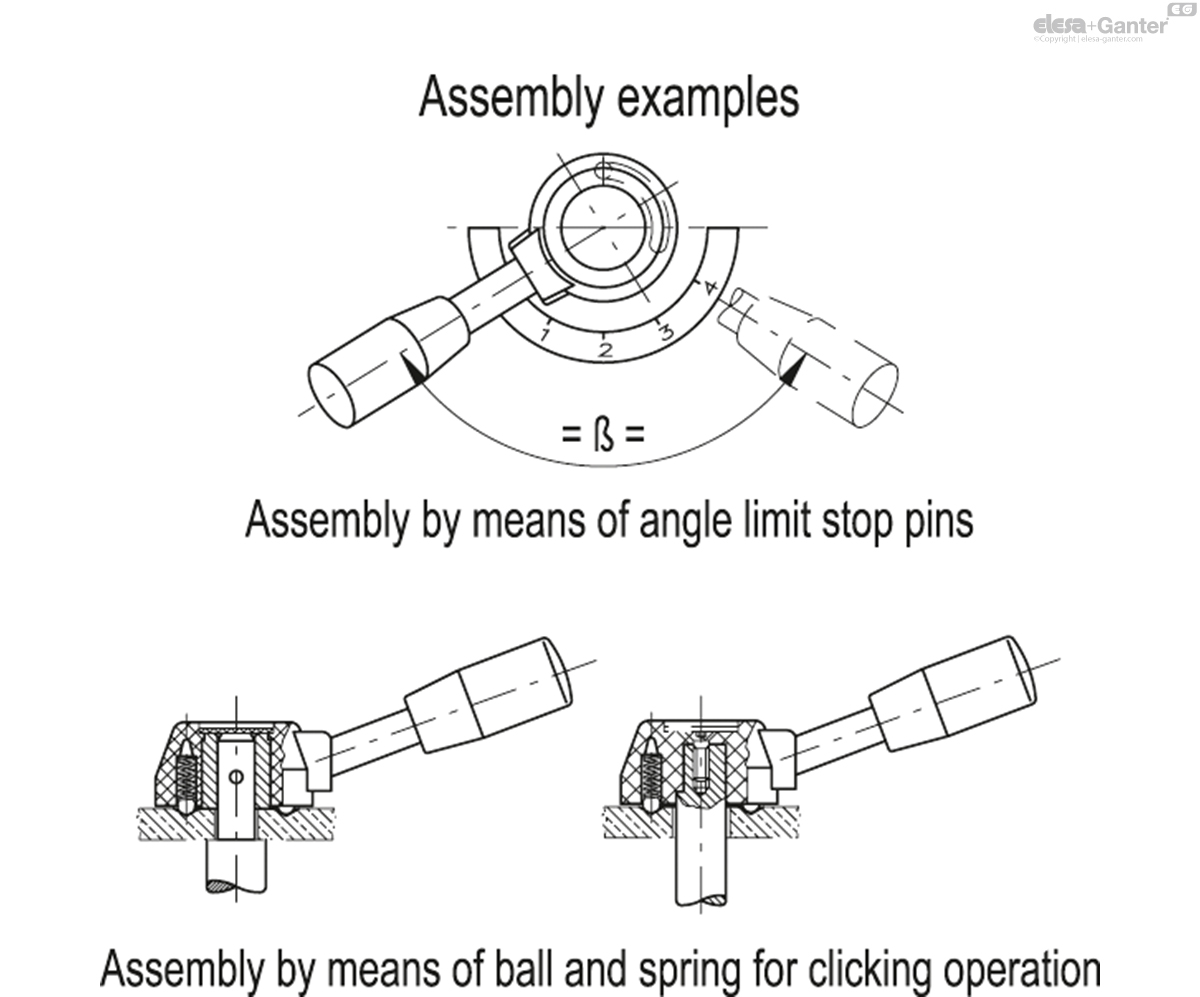

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.



Accessories on request

  • Axial retaining washer GN 184.
  • Ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring MS.).

Special executions on request

  • Different arm lengths and handle shapes.
  • Front plate with words, marks, symbols, graphics.
