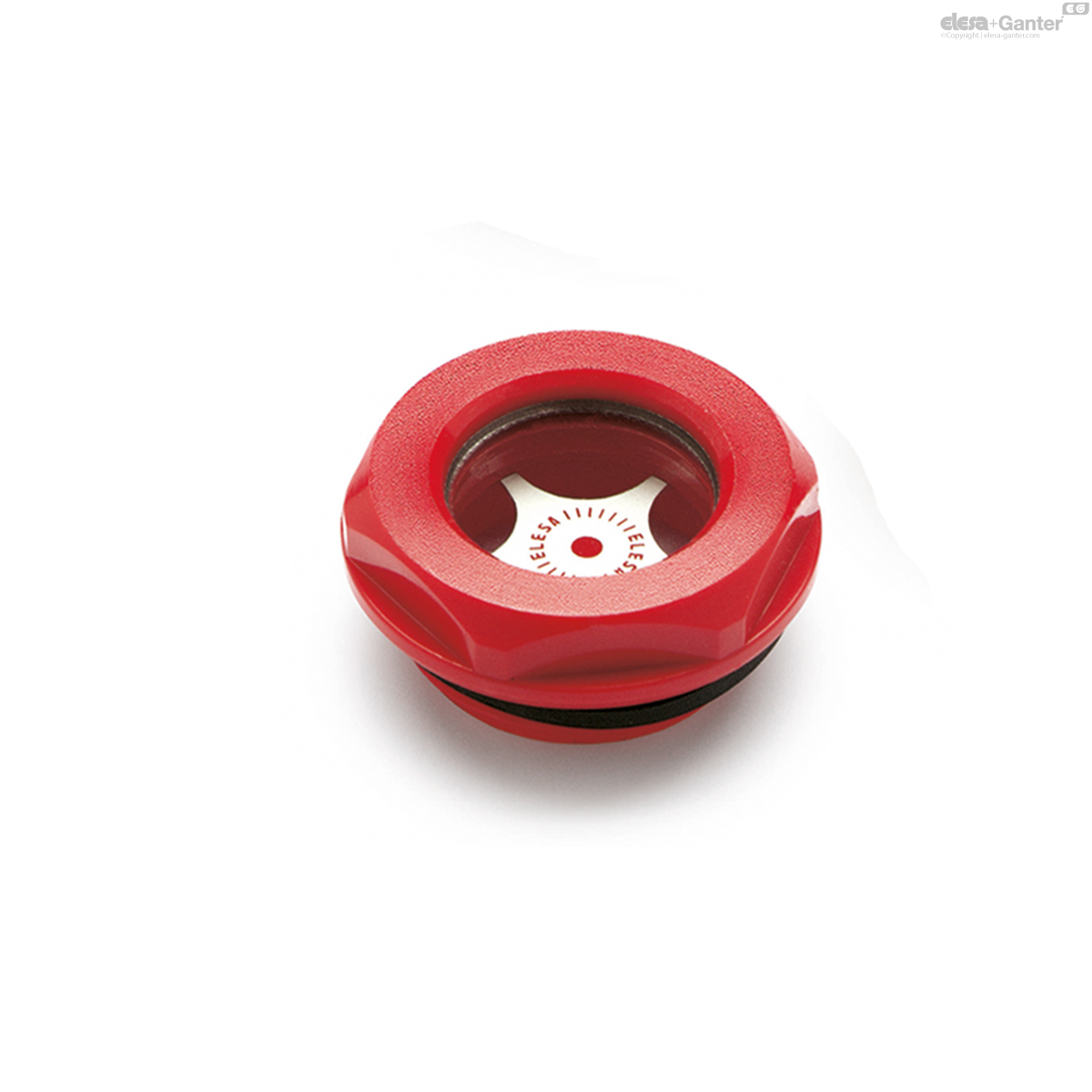

HGFT.40-2-C6 HGFT. With contrast screen

HGFT.40-2-C6

HGFT. With contrast screen

Technopolymer up to 100°C
  • Icons/__logo__PA__.png
  • Icons/__logo__PAT-AR__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__ELE_OD__.png

Eta: 1-2 weeks All sizes and variants of HGFT.

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
14564
d1
G 2
A
12
B
11
D
66
d
40
s
60
Tightening torque
[Nm]
12÷15
46
HGFT.40-2-C6 drawing

Material

Polyamide based (PA) technopolymer, black or red colour, glossy finish (HGFT-SL only black colour).

Window

Transparent polyamide based (PA-T/AR) technopolymer.

Packing ring

NBR synthetic rubber.

Standard executions

  • HGFT.: with matte anodised aluminium star-shaped contrast screen with red central level point.
  • HGFT-SL: without contrast screen.

Maximum continuous working temperature

100°C at 3 bar pressure.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH. for fitting to reservoirs with wall thickness smaller than 5 mm.
