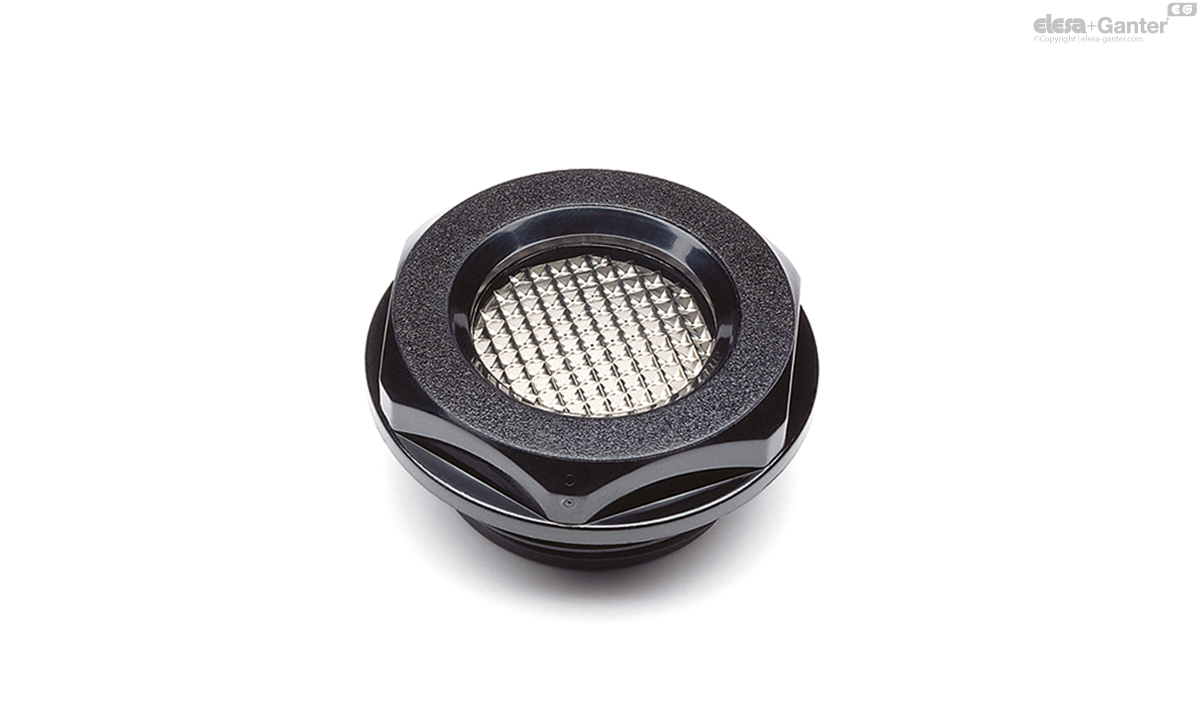

HGFT.16/PR-3/4-C9 HGFT-PR Oil level sight glasses

HGFT.16/PR-3/4-C9

HGFT-PR Oil level sight glasses

with prismatic window, technopolymer up to 100°C
  • Icons/__logo__PA__.png
  • Icons/__logo__PAT-AR__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__ELE_OD__.png

In stock All sizes and variants of HGFT-PR

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
14482
d1
G 3/4
A
9.5
B
8.5
D
35
d
18
s
32
Tightening torque
[Nm]
8÷10
10

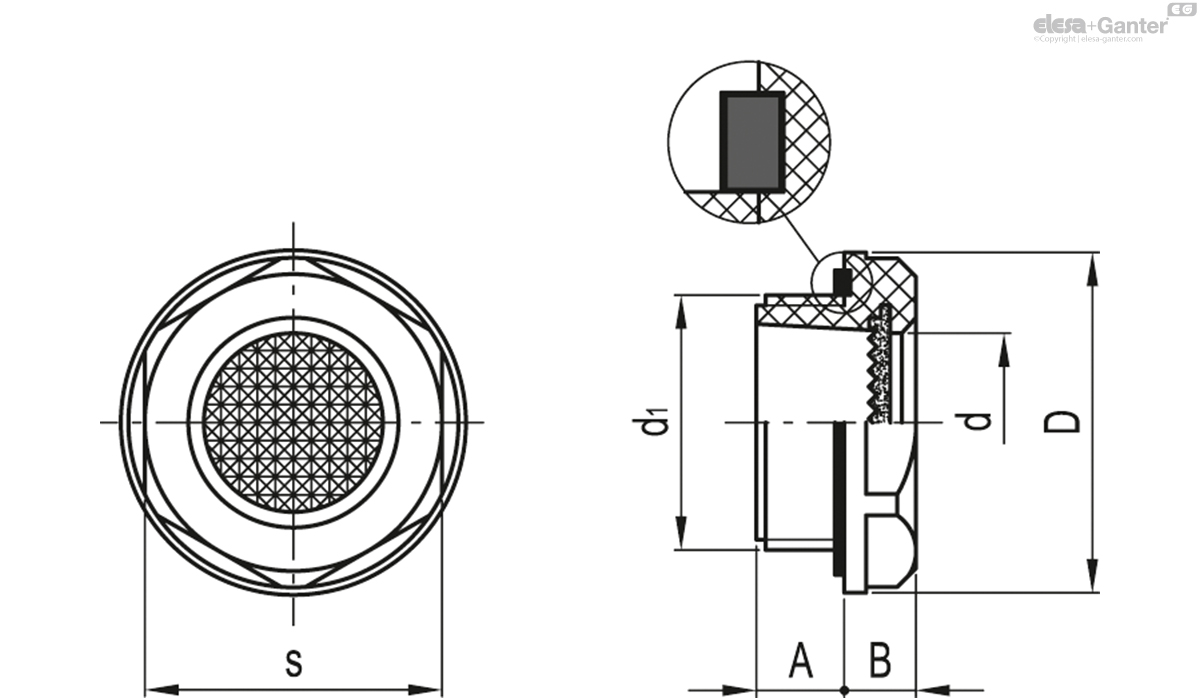

HGFT.16/PR-3/4-C9 drawing

Material

Polyamide based (PA) technopolymer, black colour, glossy finish.

Prismatic window

Transparent polyamide based (PA-T/AR) technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.

Packing ring

NBR synthetic rubber.

Maximum continuous working temperature

100°C at 3 bar pressure.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
