HGFT.13/PR-1/2-C9 HGFT-PR Oil level sight glasses

HGFT.13/PR-1/2-C9

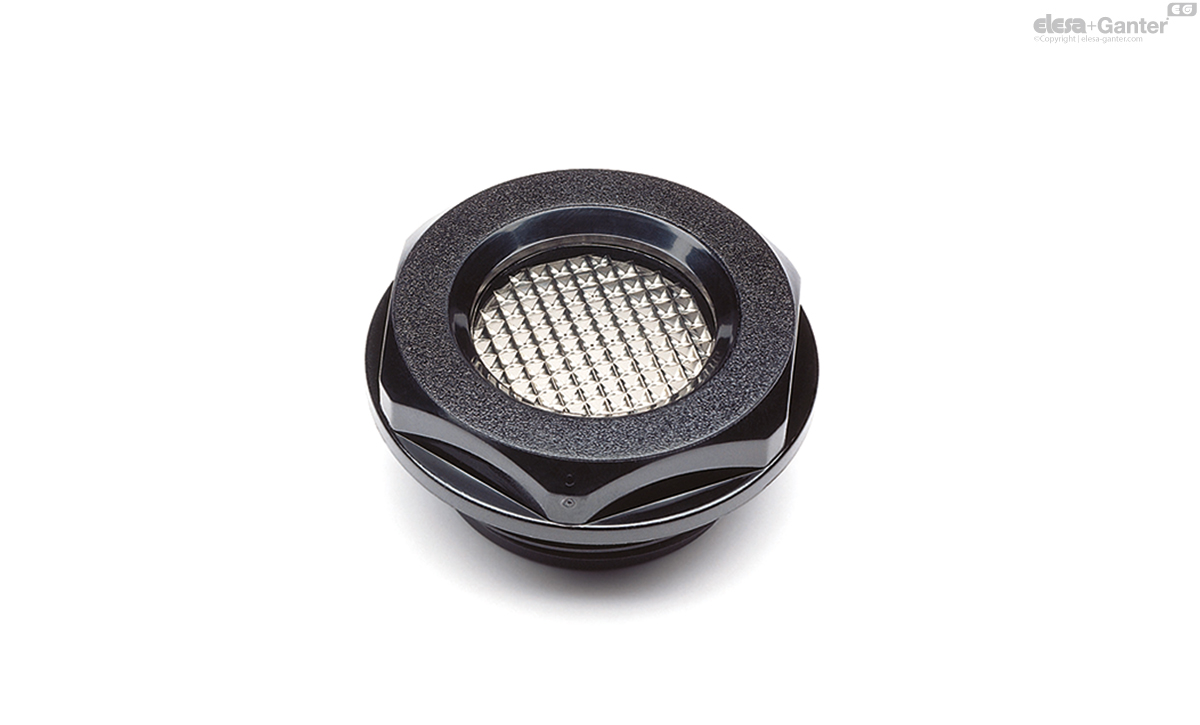

HGFT-PR Oil level sight glasses

with prismatic window, technopolymer up to 100°C
  • PA
  • PAT-AR
  • g10030
  • RoHS
  • ELE OD

Eta: 1-2 weeks All sizes and variants of HGFT-PR

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
14462
d1
G 1/2
A
10
B
8.5
D
28
d
14.5
s
24
Tightening torque
[Nm]
6÷8
6
HGFT.13/PR-1/2-C9 drawing

Material

Polyamide based (PA) technopolymer, black colour, glossy finish.

Prismatic window

Transparent polyamide based (PA-T/AR) technopolymer. The window consists of a continuous series of prisms which provide a clear and immediate reading of the level of the oil contained in the reservoir.

Packing ring

NBR synthetic rubber.

Maximum continuous working temperature

100°C at 3 bar pressure.

Note

For use with other fluids with special additives, please contact ELESA Sales Department.

Accessories on request

Brass nut type GH.- for fitting to reservoirs with wall thickness smaller than 5 mm.
