GN 807Andrückschrauben
Stahl
Stahl / Edelstahl, mit / ohne elastische Schutzkappe
GN 807
|
Katalog
|
d1
|
l1
|
d2
|
h1
|
h2
|
l2
|
m
|
A/F
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
M 4
|
23
|
11
|
3
|
6.5
|
2.5
|
3.2
|
7
|
5
| ||
|
M 5
|
38
|
12.5
|
3.5
|
8
|
2.5
|
4.7
|
8
|
9
| ||
|
M 6
|
29
|
15
|
4
|
10
|
4
|
5.2
|
10
|
11
| ||
|
M 6
|
49
|
15
|
4
|
10
|
4
|
5.2
|
10
|
16
| ||
|
M 8
|
36
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
24
| ||
|
M 8
|
56
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
26
| ||
|
M 8
|
96
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
43
| ||
|
M 10
|
43
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
47
| ||
|
M 10
|
77
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
66
| ||
|
M 10
|
127
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
92
| ||
|
M 12
|
53
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
75
| ||
|
M 12
|
88
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
107
| ||
|
M 12
|
128
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
13
| ||
|
M 14
|
54
|
-
|
9
|
-
|
-
|
12.8
|
21
|
109
| ||
|
M 4
|
23
|
11
|
3
|
6.5
|
2.5
|
3.2
|
7
|
4
| ||
|
M 5
|
38
|
12.5
|
3.5
|
8
|
2.5
|
4.7
|
8
|
10
| ||
|
M 6
|
29
|
15
|
4
|
10
|
4
|
5.2
|
10
|
14
| ||
|
M 6
|
49
|
15
|
4
|
10
|
4
|
5.2
|
10
|
18
| ||
|
M 8
|
36
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
28
| ||
|
M 8
|
56
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
35
| ||
|
M 8
|
96
|
19
|
5.5
|
13
|
5.5
|
6.8
|
13
|
47
| ||
|
M 10
|
43
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
54
| ||
|
M 10
|
77
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
74
| ||
|
M 10
|
127
|
24
|
6.5
|
16
|
7
|
8.4
|
16
|
99
| ||
|
M 12
|
53
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
85
| ||
|
M 12
|
88
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
111
| ||
|
M 12
|
128
|
26
|
7.5
|
19
|
8.5
|
10.8
|
18
|
139
|

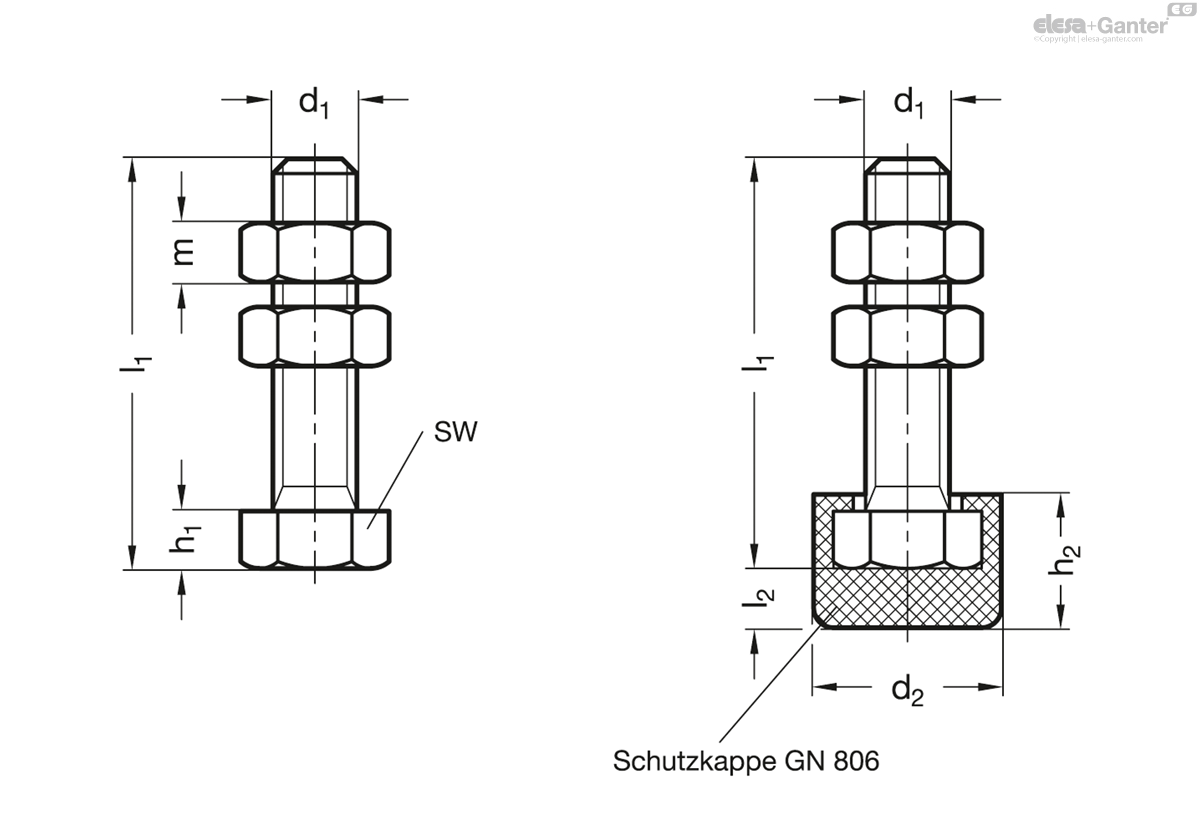

Form
- A: ohne Schutzkappe
- B: mit Schutzkappe
Ausführung in Stahl
- Sechskantschraube ISO 4017/ DIN 933
Festigkeitsklasse 8.8
- verzinkt, blau passiviert
Ausführung in Edelstahl
Edelstahl 1.4301 NI
- Sechskantschraube ISO 4017/ DIN 933
- Sechskantmutter ISO 4032
Die beiden Sechskantmuttern gehören zum Lieferumfang.
