GN-99.2Klemhendels

Klemhendels met draadstang

Uitschakelen door DRUKKEN

  • Icons/__logo__RoHS__.png

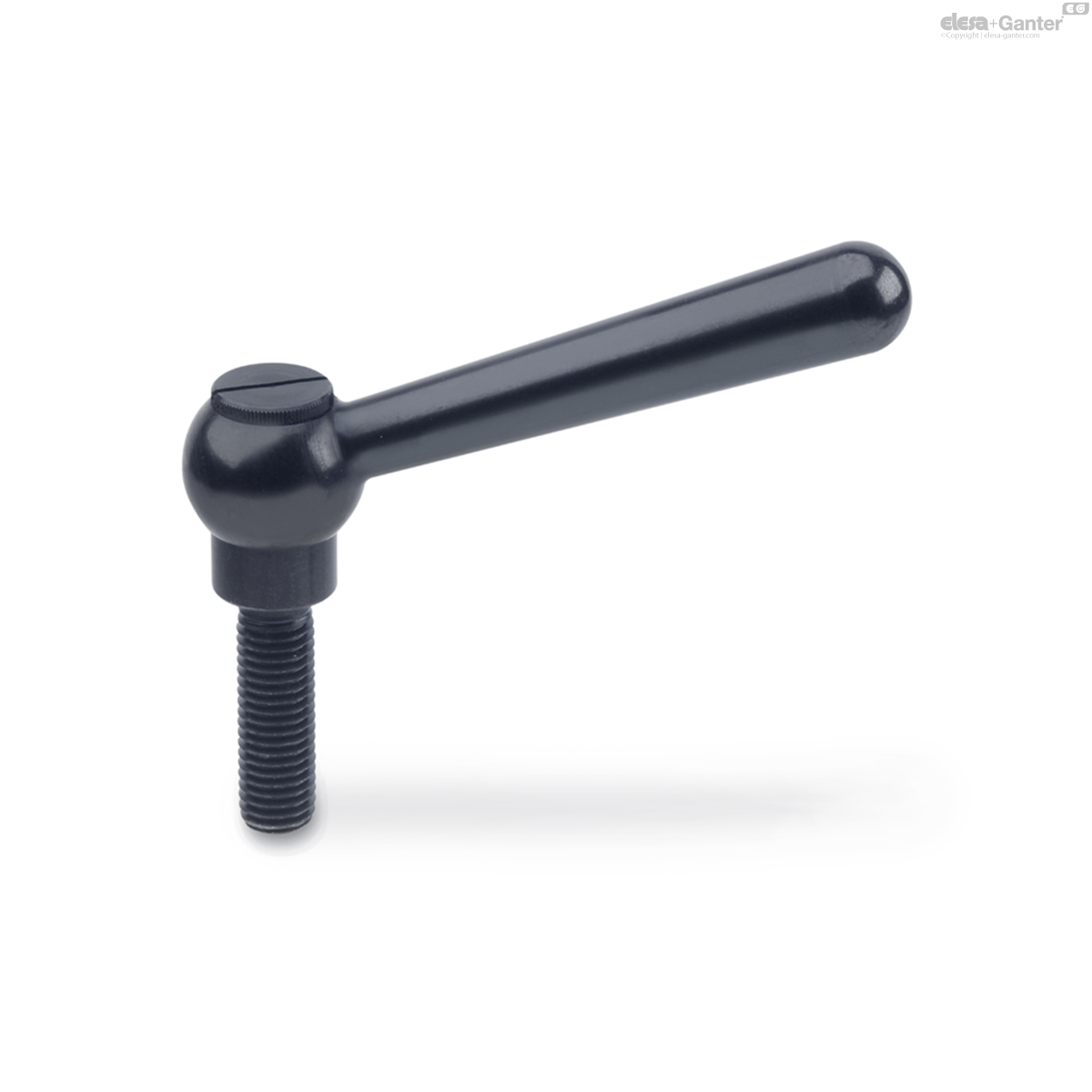

Klemhendels met draadstang
Klemhendels met draadstang
Klemhendels met draadstang
Klemhendels met draadstang
GN-99.2
Klemhendels met draadstang
Klemhendels met draadbus
GN 99.2
Klemhendels met draadbus

GN-99.2

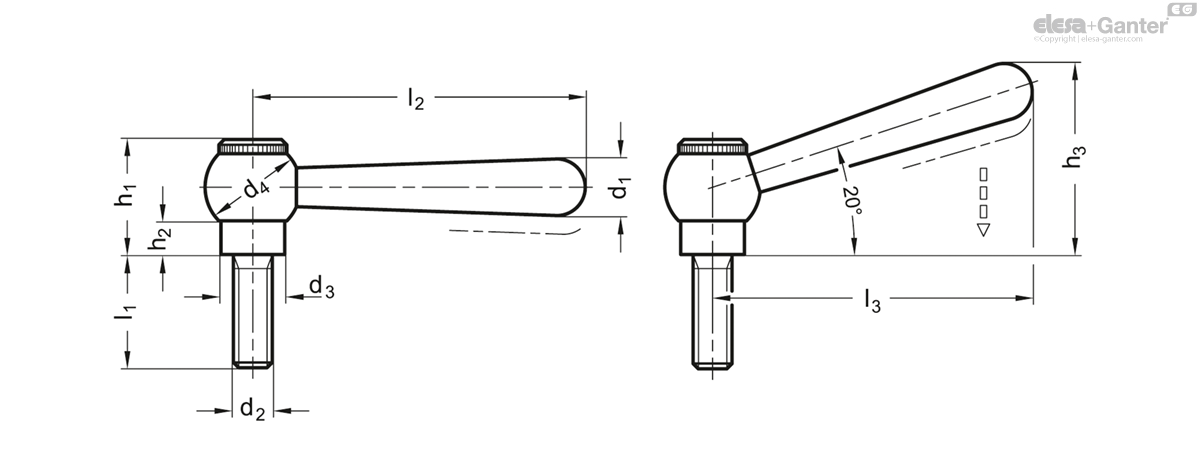

Code
d1
d2
l1
d3
d4
h1
h2
h3 ≈
l2
l3 ≈
GN 99.2-10-M8-20-M
10
M 8
20
13.5
20
25
8
-
63
-
69
GN 99.2-10-M8-25-M
10
M 8
25
13.5
20
25
8
-
63
-
71
GN 99.2-10-M8-32-M
10
M 8
32
13.5
20
25
8
-
63
-
73
GN 99.2-10-M8-40-M
10
M 8
40
13.5
20
25
8
-
63
-
75
GN 99.2-10-M8-50-M
10
M 8
50
13.5
20
25
8
-
63
-
81
GN 99.2-10-M8-63-M
10
M 8
63
13.5
20
25
8
-
63
-
85
GN 99.2-13-M10-20-M
13
M 10
20
16
25
29
8
-
80
-
137
GN 99.2-13-M10-25-M
13
M 10
25
16
25
29
8
-
80
-
139
GN 99.2-13-M10-32-M
13
M 10
32
16
25
29
8
-
80
-
143
GN 99.2-13-M10-40-M
13
M 10
40
16
25
29
8
-
80
-
147
GN 99.2-13-M10-50-M
13
M 10
50
16
25
29
8
-
80
-
153
GN 99.2-13-M10-63-M
13
M 10
63
16
25
29
8
-
80
-
159
GN 99.2-16-M12-25-M
16
M 12
25
19
28
33.5
10.5
-
100
-
220
GN 99.2-16-M12-32-M
16
M 12
32
19
28
33.5
10.5
-
100
-
226
GN 99.2-16-M12-40-M
16
M 12
40
19
28
33.5
10.5
-
100
-
232
GN 99.2-16-M12-50-M
16
M 12
50
19
28
33.5
10.5
-
100
-
238
GN 99.2-16-M12-63-M
16
M 12
63
19
28
33.5
10.5
-
100
-
247
GN 99.2-16-M12-80-M
16
M 12
80
19
28
33.5
10.5
-
100
-
250
GN 99.2-10-M8-20-N
10
M 8
20
13.5
20
25
8
39.5
-
60
69
GN 99.2-10-M8-25-N
10
M 8
25
13.5
20
25
8
39.5
-
60
71
GN 99.2-10-M8-32-N
10
M 8
32
13.5
20
25
8
39.5
-
60
73
GN 99.2-10-M8-40-N
10
M 8
40
13.5
20
25
8
39.5
-
60
75
GN 99.2-10-M8-50-N
10
M 8
50
13.5
20
25
8
39.5
-
60
81
GN 99.2-10-M8-63-N
10
M 8
63
13.5
20
25
8
39.5
-
60
85
GN 99.2-13-M10-20-N
13
M 10
20
16
25
29
8
49.5
-
76
137
GN 99.2-13-M10-25-N
13
M 10
25
16
25
29
8
49.5
-
76
139
GN 99.2-13-M10-32-N
13
M 10
32
16
25
29
8
49.5
-
76
143
GN 99.2-13-M10-40-N
13
M 10
40
16
25
29
8
49.5
-
76
147
GN 99.2-13-M10-50-N
13
M 10
50
16
25
29
8
49.5
-
76
153
GN 99.2-13-M10-63-N
13
M 10
63
16
25
29
8
49.5
-
76
159
GN 99.2-16-M12-25-N
16
M 12
25
19
28
33.5
10.5
60.5
-
95
220
GN 99.2-16-M12-32-N
16
M 12
32
19
28
33.5
10.5
60.5
-
95
226
GN 99.2-16-M12-40-N
16
M 12
40
19
28
33.5
10.5
60.5
-
95
232
GN 99.2-16-M12-50-N
16
M 12
50
19
28
33.5
10.5
60.5
-
95
238
GN 99.2-16-M12-63-N
16
M 12
63
19
28
33.5
10.5
60.5
-
95
247
GN 99.2-16-M12-80-N
16
M 12
80
19
28
33.5
10.5
60.5
-
95
250

Types

  • Type M: Straight lever
  • Type N: Angled lever

Steel

blackened

Version with threaded stud

Tensile strength class 5.8

Clamping levers GN 99.2 are known for their small dimensions.

They are for use in applications where either the clamping range is limited or where a specific lever position is required. The serrated bore in the spherical hub is fitted with a threaded bolt insert which engages in the hub with its own serrations.

By depressing the clamping lever the serrations are disengaged freeing it for re-positioning in the most convenient position. When releasing the lever the serrations will re-engage automatically.

Should a rotation of 360° not be possible the insert can be slightly screwed in (after the lever has been disengaged) by means of the slotted knurled screw.
