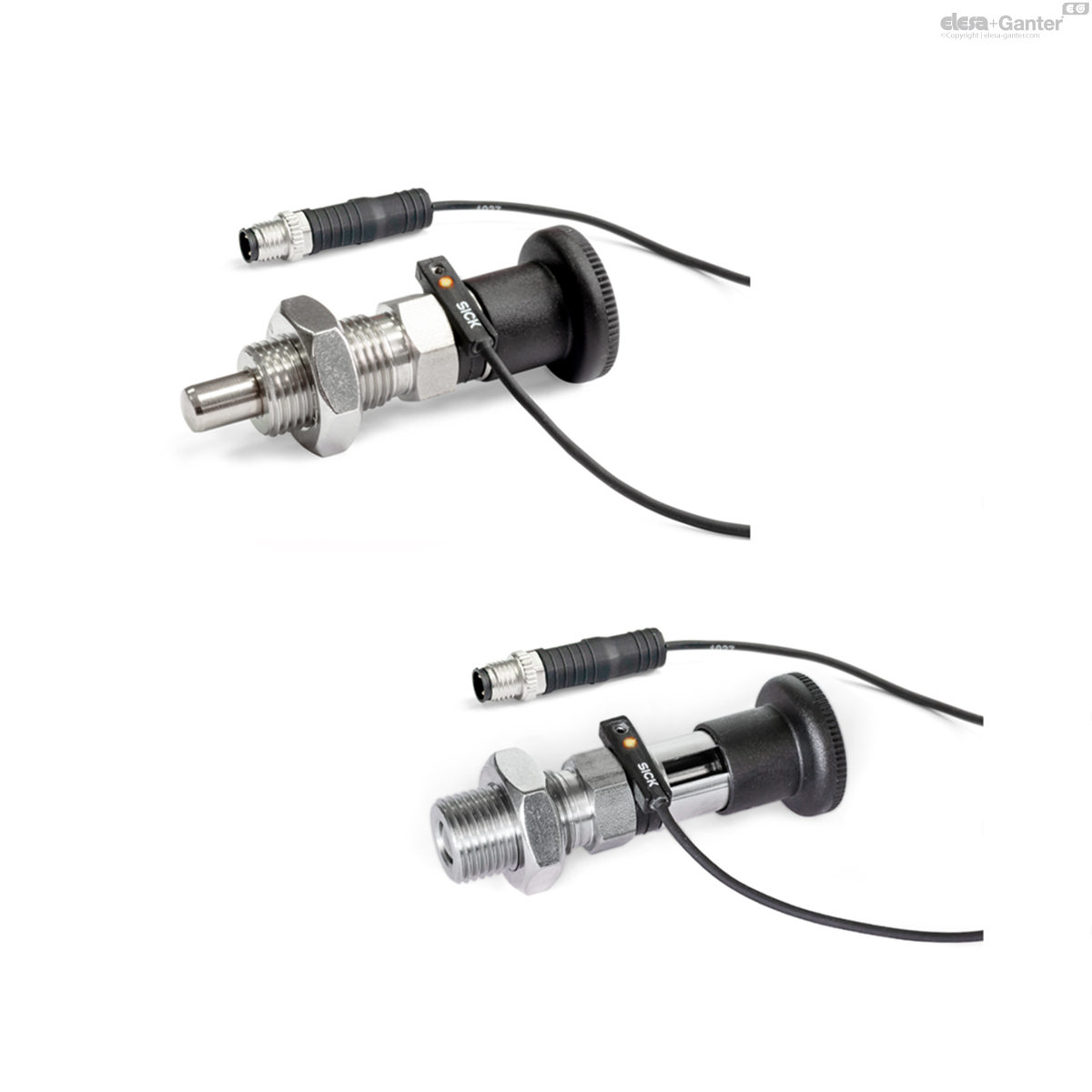

GN 817.6RVS blokkeerbouten

RVS blokkeerbouten

met sensor voor positiecontrole

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
RVS blokkeerbouten
RVS blokkeerbouten

GN 817.6

Reset
Code
d1 Pin -0.02/-0.05
Bore
H7
l1
Cable length l5 in meter
d2
d3
d4
k
l2
l3
l4
A/F
Spring load
in N≈ initial
GN 817.6-4-6-EB-S-0,5
4
6
0.5
M 8 x 1
16
2
14
41.5
16
11.5
10
4
GN 817.6-5-8-EB-S-0,5
5
8
0.5
M 10 x 1
19
2
16
46.5
18
12.5
12
5
GN 817.6-6-9-EB-S-0,5
6
9
0.5
M 12 x 1,5
23
2
20
54.5
22
12.5
14
6
GN 817.6-8-12-EB-S-0,5
8
12
0.5
M 16 x 1,5
28
2
24
64.5
26
14.5
17
8.5
GN 817.6-10-12-EB-S-0,5
10
12
0.5
M 16 x 1,5
28
2
24
64.5
26
14.5
17
9.5
GN 817.6-12-15-EB-S-0,5
12
15
0.5
M 20 x 1,5
33
2
28.5
78
33
16.5
22
11.5
GN 817.6-16-20-EB-S-0,5
16
20
0.5
M 24 x 2
33
2
28.5
85
38
18.5
27
13
GN 817.6-4-6-EC-S-0,5
4
6
0.5
M 8 x 1
16
2
14
41.5
16
11.5
10
4
GN 817.6-5-8-EC-S-0,5
5
8
0.5
M 10 x 1
19
2
16
46.5
18
12.5
12
5
GN 817.6-6-9-EC-S-0,5
6
9
0.5
M 12 x 1,5
23
2
20
54.5
22
12.5
14
6
GN 817.6-8-12-EC-S-0,5
8
12
0.5
M 16 x 1,5
28
2
24
64.5
26
14.5
17
8.5
GN 817.6-10-12-EC-S-0,5
10
12
0.5
M 16 x 1,5
28
2
24
64.5
26
14.5
17
9.5
GN 817.6-12-15-EC-S-0,5
12
15
0.5
M 20 x 1,5
33
2
28.5
78
33
16.5
22
11.5
GN 817.6-16-20-EC-S-0,5
16
20
0.5
M 24 x 2
33
2
28.5
85
38
18.5
27
13

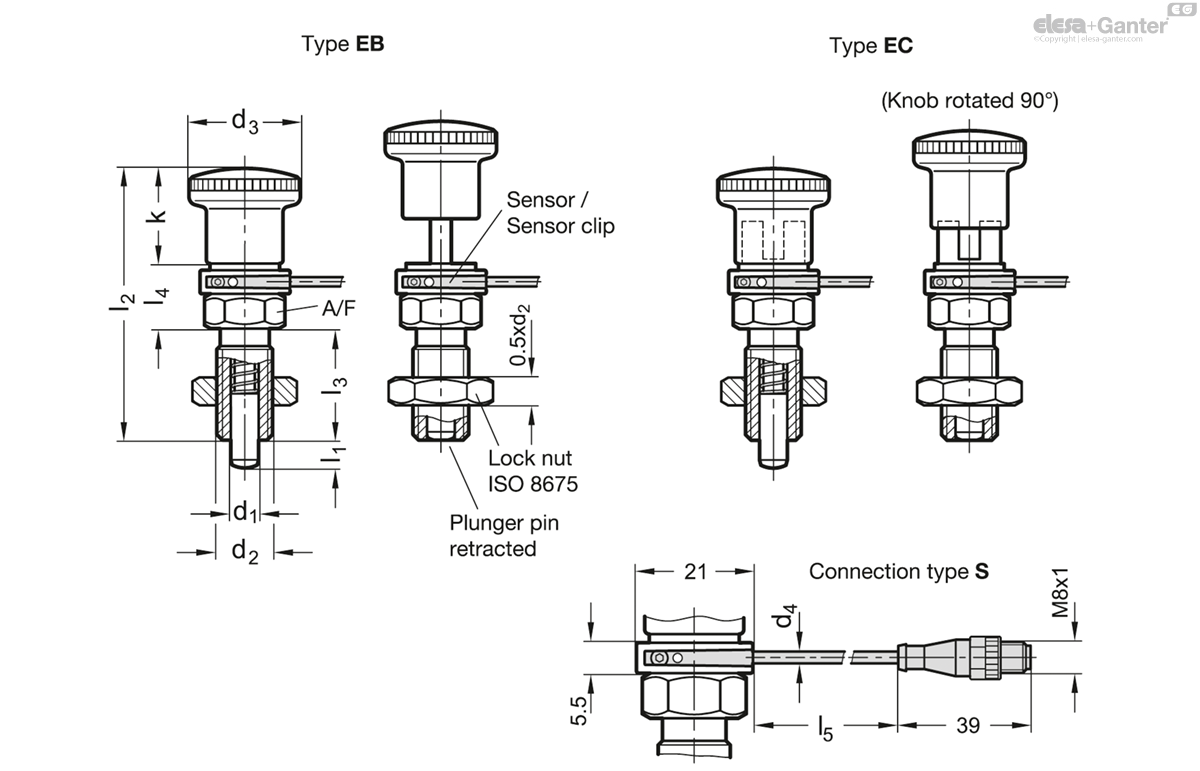

Types

  • Type EB: with engagement monitoring, without rest position
  • Type EC: with engagement monitoring, with rest position

Connection type

  • Connection type S: Plug

Stainless Steel

  • AISI 303
  • Plunger pin chemically nickel plated

Knob, Plastic (Polyamide PA)

  • black, matte
  • not removable

Magnet

Hard ferrite

Sensor / Sensor clip

Plastic (Polyamide PA), black, matte

Cable (Outer sheath)

Polyurethan PUR, black

Hex nut ISO 8675

Stainless Steel A2

Stainless Steel-Indexing plungers GN 817.6 with sensor for position monitoring allow for electronic monitoring of the plunger pin state. For this purpose, a magnet is integrated into the plunger pin that switches the sensor upon engaging after approx. 2/3 of the locking distance l1.

The sensor electronics then outputs a high signal, e.g. to a machine control, and additionally indicates this switch state with an LED on the sensor.

To prevent faults, no external magnetic fields should be acting on the indexing plunger. The Stainless Steel-Indexing plungers GN 817.6 are delivered with enclosed sensor, sensor clip, Allen® wrench and a hexagon nut.



The position of the sensor cable can be chosen freely during installation of the sensor clip.

Installation steps:

1. Insert the sensor into the sensor clip from the side.

2. Tighten the hexagon socket screw of the sensor.

3. Clip the sensor clip into the ring groove of the indexing plunger in any orientation and then adjust the direction by turning, if necessary.

Gerelateerde producten

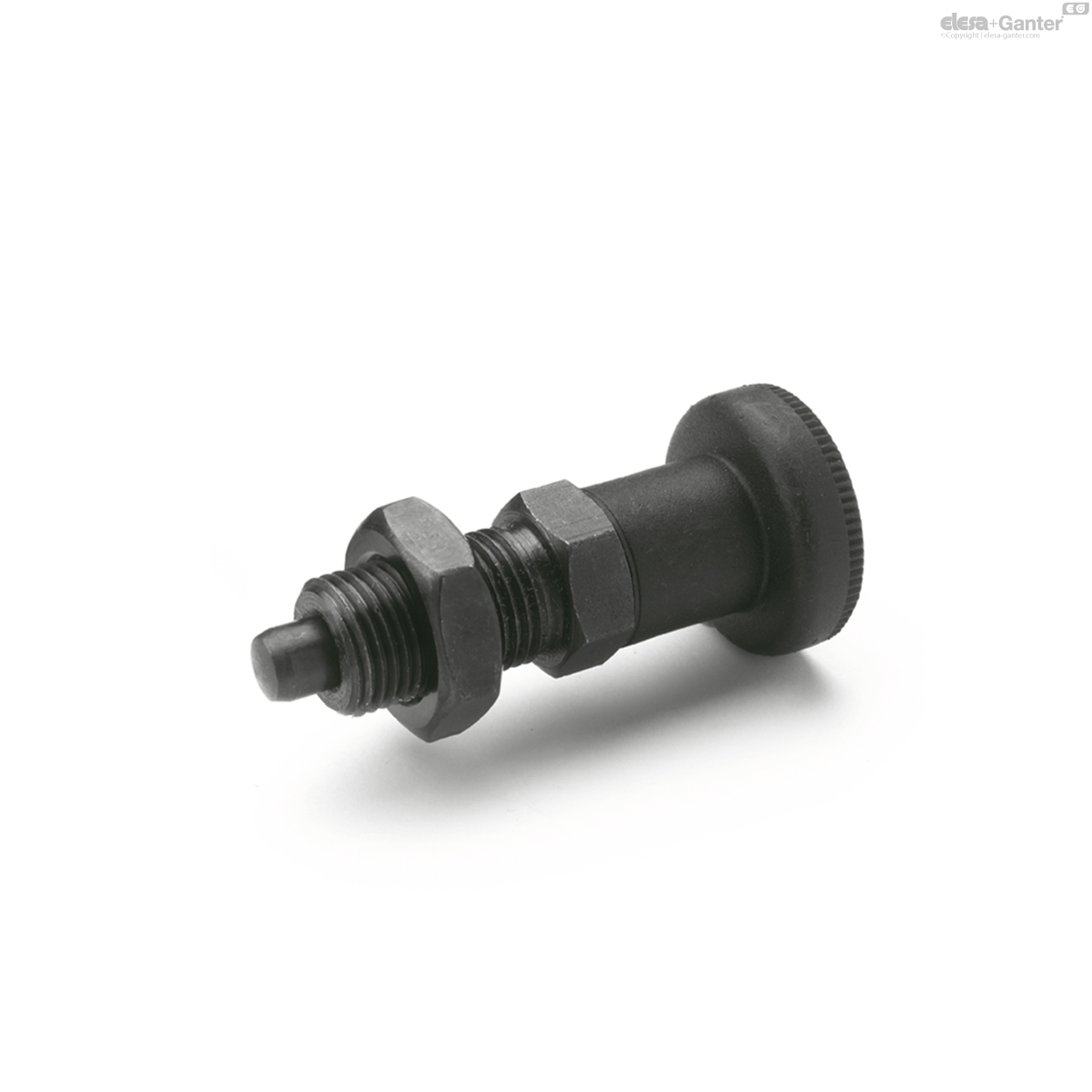

Staal met kunststof knop

GN 617

Blokkeerbouten Staal / roestvrij staal zonder rustpositie
Staal

GN 717

Blokkeerbouten Staal / roestvrij staal, met en zonder rustpositie
Staal, met kunststof knop

GN 817-ST

Blokkeerbouten Staal / roestvrij staal, met of zonder rustpositie

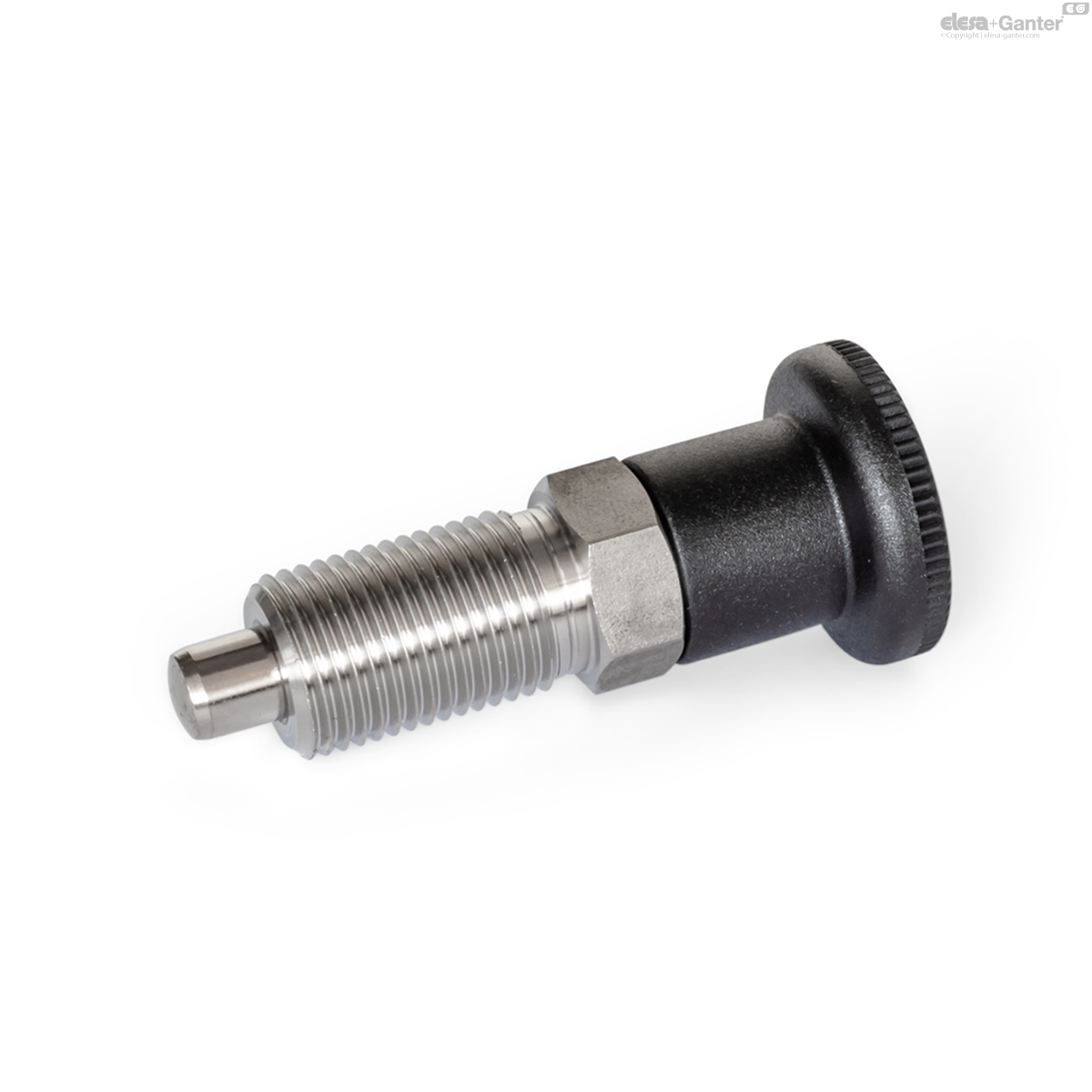

zonder rustpositie, met kunststof knop, zonder borgmoer
