Technical datasheet
GN 715.2Excenterbussen

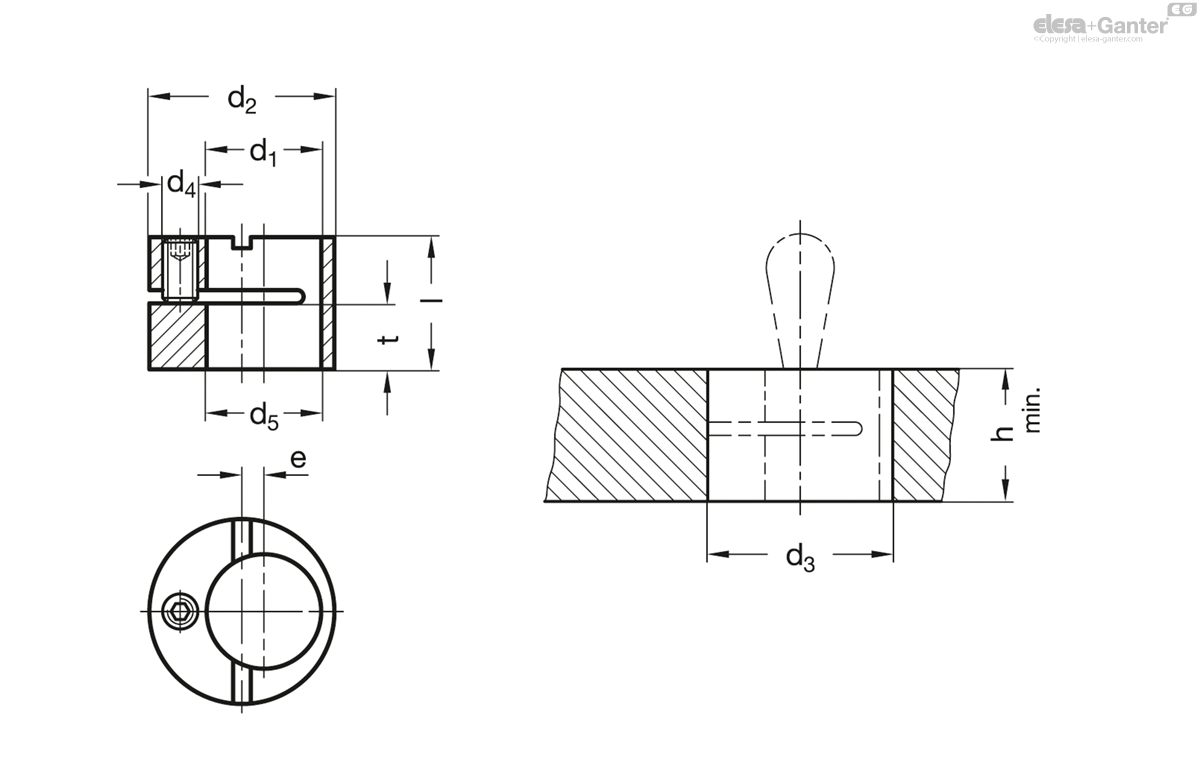

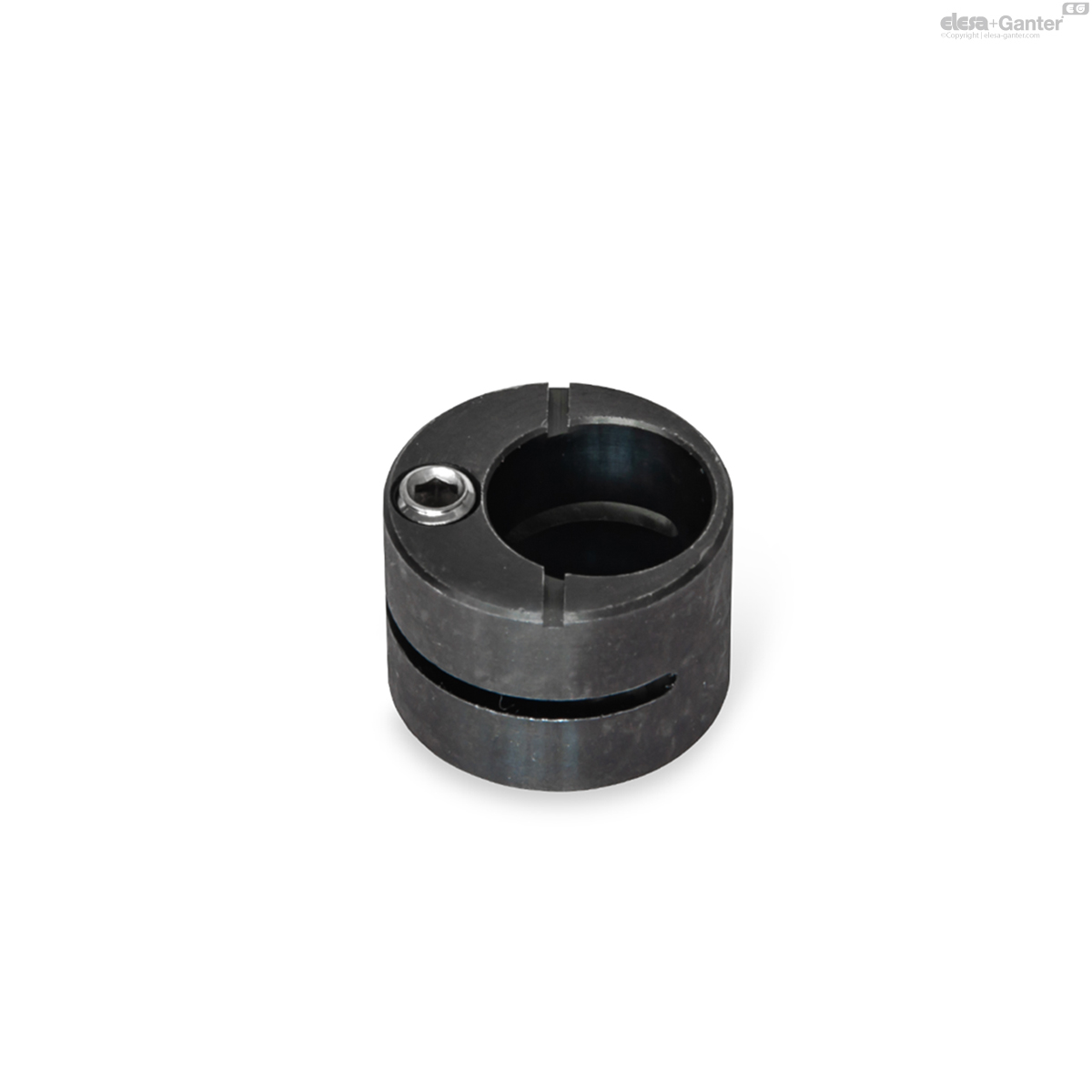

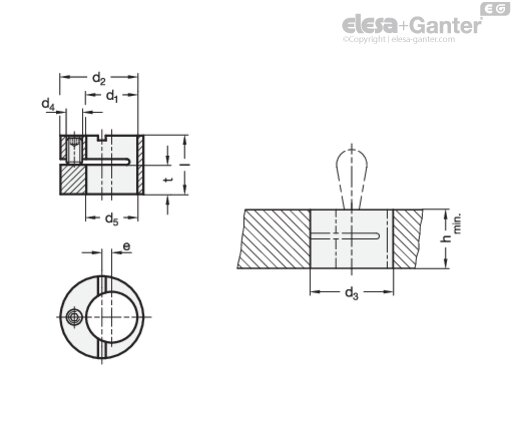

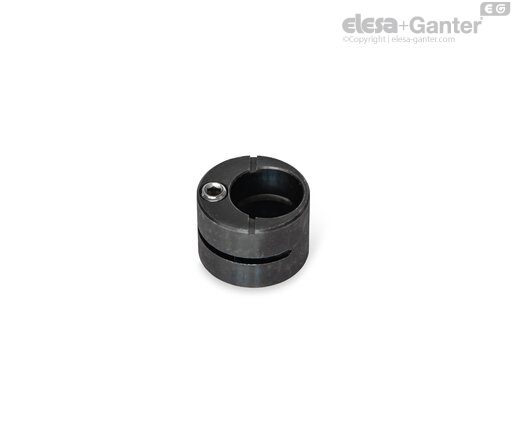

Excenterbussen
voor zij-aandrukstukken GN 714 / GN 715
GN 715.2
|
Code
|
d1 H8
|
d2 h9
|
d3 H8
|
d4
|
d5 +0,3
|
e
|
h min.
|
Length l
|
t
|
For side thrust
pin-Ø |
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6
|
12
|
12
|
M 4
|
6.3
|
2
|
10
|
9.9
|
4.4
|
3
|
5
| ||
|
10
|
16
|
16
|
M 4
|
10.3
|
2
|
12
|
11.9
|
5.3
|
5 6
|
9
| ||
|
12
|
18
|
18
|
M 4
|
12.3
|
2
|
14
|
13.9
|
5.3
|
8
|
13
| ||
|
16
|
25
|
25
|
M 6
|
16.2
|
3
|
18
|
17.9
|
7.9
|
10
|
35
|
