GN 711.2-SLinialen

Cijfers verticaal gerangschikt

Aluminium, met montagegaten

  • Icons/__logo__RoHS__.png
Cijfers verticaal gerangschikt
Cijfers verticaal gerangschikt
GN 711.2-S
Cijfers verticaal gerangschikt
GN 711.2-W
Cijfers horizontaal gerangschikt
U
M
O

GN 711.2-S

Reset
Code
Length l Scale
Number ob bores
a1 ±0.1
a2 ±0.1
a3 ±0.1
a4 ±0.1
a5 ±0.1
a6 ±0.1
a7 ±0.1
GN 711.2-AL-50-S-O-1
50
2
4
-
-
-
-
-
-
5
GN 711.2-AL-100-S-O-1
100
2
9
-
-
-
-
-
-
8
GN 711.2-AL-150-S-O-1
150
2
4
-
-
-
-
-
-
12
GN 711.2-AL-200-S-O-1
200
3
9
99
-
-
-
-
-
15
GN 711.2-AL-300-S-O-1
300
3
9
149
-
-
-
-
-
24
GN 711.2-AL-400-S-O-1
400
4
9
139
269
-
-
-
-
32
GN 711.2-AL-500-S-O-1
500
4
9
169
339
-
-
-
-
40
GN 711.2-AL-750-S-O-1
750*
8
4
129
249
369
389
509
629
50
GN 711.2-AL-1000-S-O-1
1000*
8
9
169
329
499
519
679
839
81
* These lengths consist of 2 parts.

Types

  • Type W: Figures horizontally arranged (figure sequences L, M, R)
  • Type S: Figures vertically arranged (figure sequences U, M, O)

Identification no.

  • No. 1: With mounting holes Ø 3.3

Aluminum AL

  • Anodized, natural color
  • Black imprint
  • Numbers and scale etched, i.e. aluminum colored
  • Imprint resistant to weak acids and lye solutions, and against solvents in the event of brief contact

The position of linear actuator connectors can be easily read from GN 711.2 rulers. The black background creates a high contrast to the natural-colored numbers and scales, and prevents glare.

The orientation of the dimensioning of the fastening holes depends on the sequence of the numbers and is shown in the drawing.

  • Self-adhesive version
Gerelateerde producten

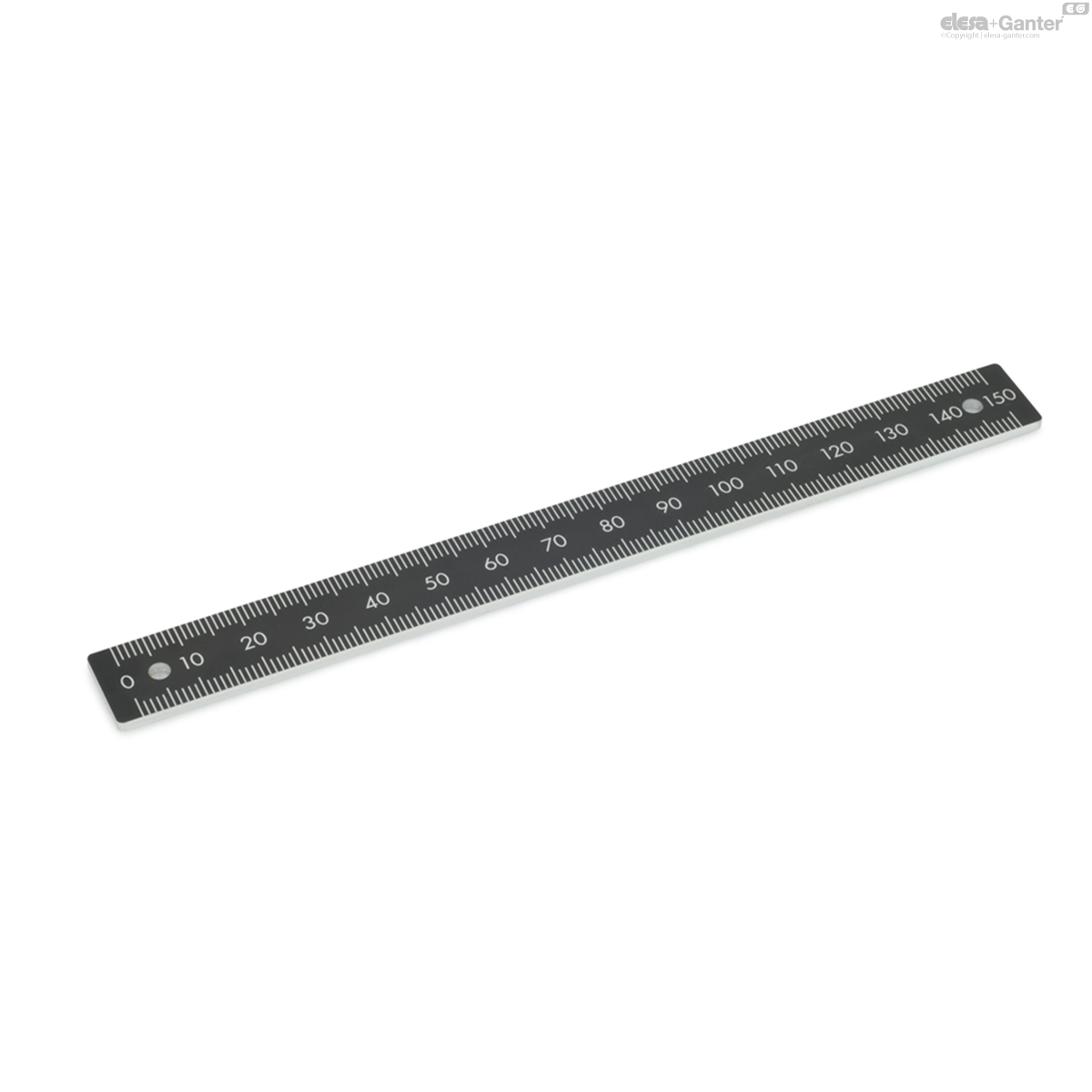

Cijfers horizontaal gerangschikt (L,M,R)

GN 711-NI-W

Linialen zelfklevend
Indicatiepijlen voor linialen

GN 711.1

Indicatiepijlen voor linialen zelfklevend
Indicatiepijlen

GN 711.3

Indicatiepijlen Aluminium, Met montagegaten, voor linialen
Neutraal

GN 723.4-N

Regelknoppen Aluminium
