GN 706.3-STStelringen met schroefdraad

Staal

Staal / RVS

Technical datasheet

GN 706.3-ST

Reset

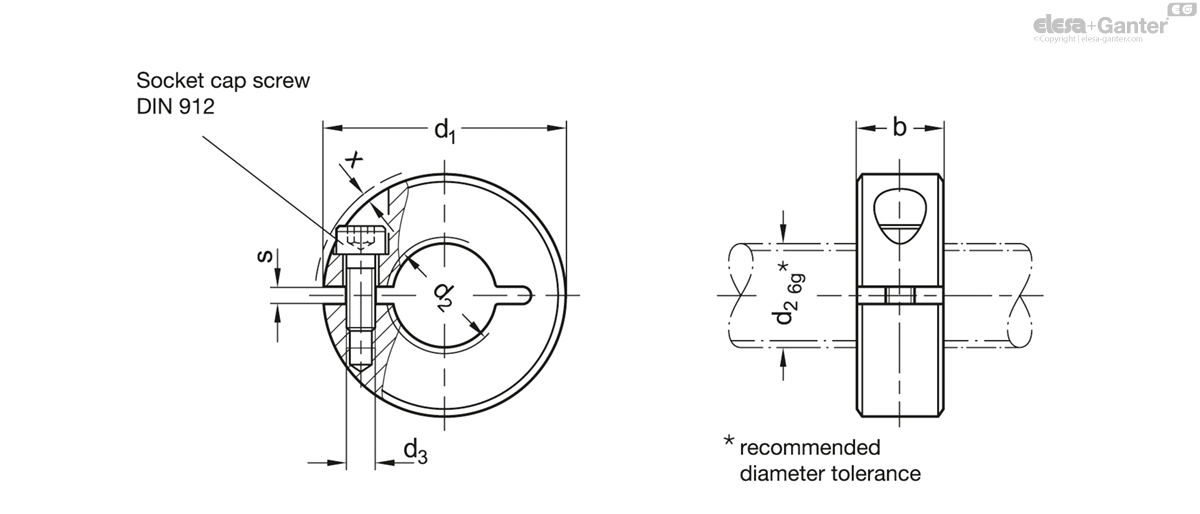

Code	d₁	d₂ 6H	b ±0.2	d₃	s	x ≈ Max. protrusion of cap screw	Adjustable hand lever for d₃

GN 706.3-20-M8-ST	20	M 8	9	M 3	2.1	1	-	15
GN 706.3-20-M8x1-ST	20	M 8 x 1	9	M 3	2.1	1	-	16
GN 706.3-22-M10-ST	22	M 10	9	M 3	2.1	0.8	-	14
GN 706.3-22-M10x1-ST	22	M 10 x 1	9	M 3	2.1	0.8	-	19
GN 706.3-26-M12-ST	26	M 12	11	M 4	2.1	1.6	-	31
GN 706.3-26-M12x1,5-ST	26	M 12 x 1.5	11	M 4	2.1	1.6	-	31
GN 706.3-32-M16-ST	32	M 16	11	M 4	2.1	0.7	GN 311-30-M4-12-SW	42
GN 706.3-32-M16x1,5-ST	32	M 16 x 1.5	11	M 4	2.1	0.7	GN 311-30-M4-12-SW	44
GN 706.3-42-M20-ST	42	M 20	15	M 5	3	0.6	GN 311-30-M5-15-SW	107
GN 706.3-42-M20x1,5-ST	42	M 20 x 1.5	15	M 5	3	0.6	GN 311-30-M5-15-SW	105
GN 706.3-48-M24x1,5-ST	48	M 24 x 1.5	15	M 5	3	0	GN 311-45-M5-16-SW	135
GN 706.3-55-M30x1,5-ST	55	M 30 x 1.5	15	M 6	3	0.4	GN 311-45-M6-18-SW	165

Version in Steel

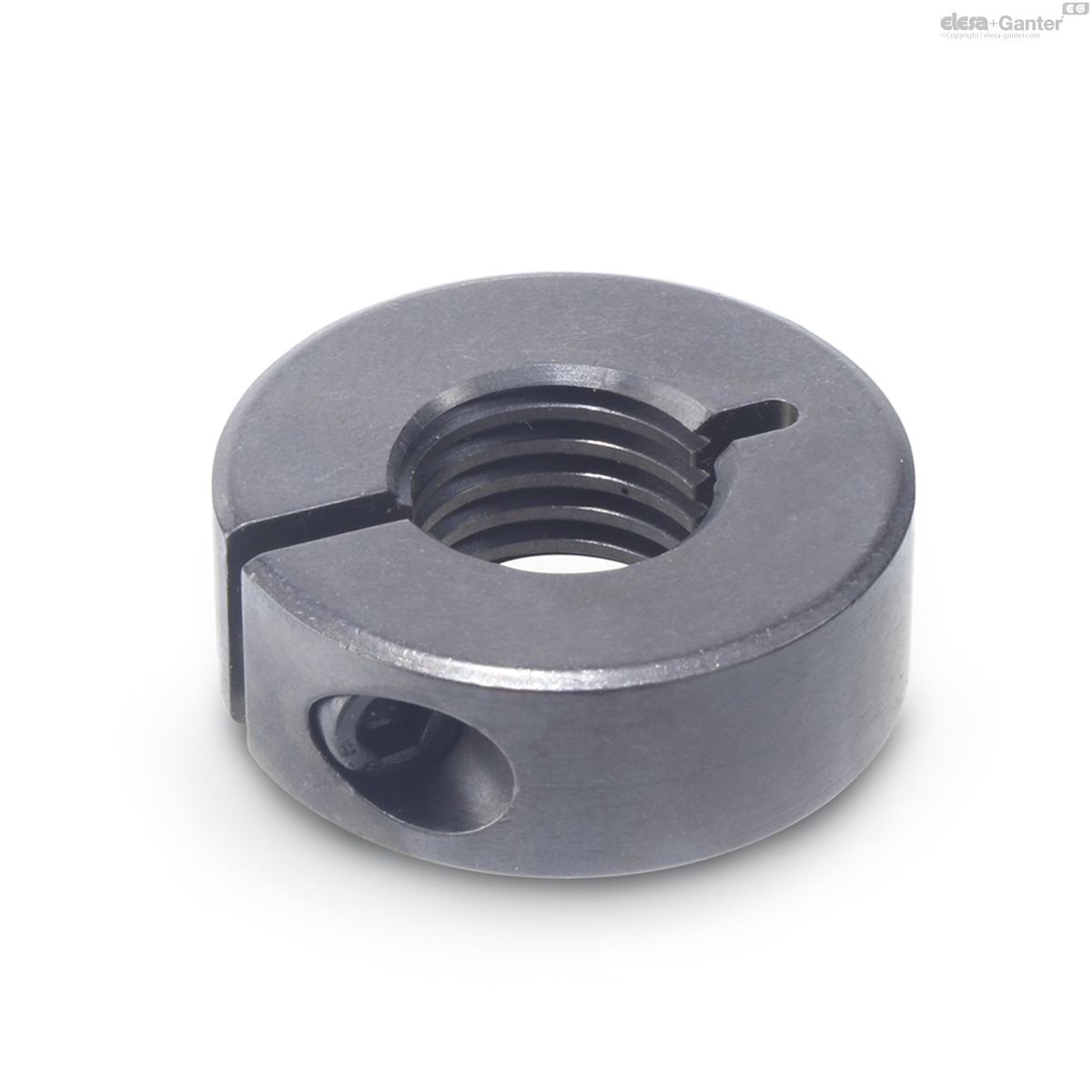

Steel ST

Sintered

Black oxidized with vapor

Socket cap screw DIN 912

Steel, plain

Version in Stainless Steel

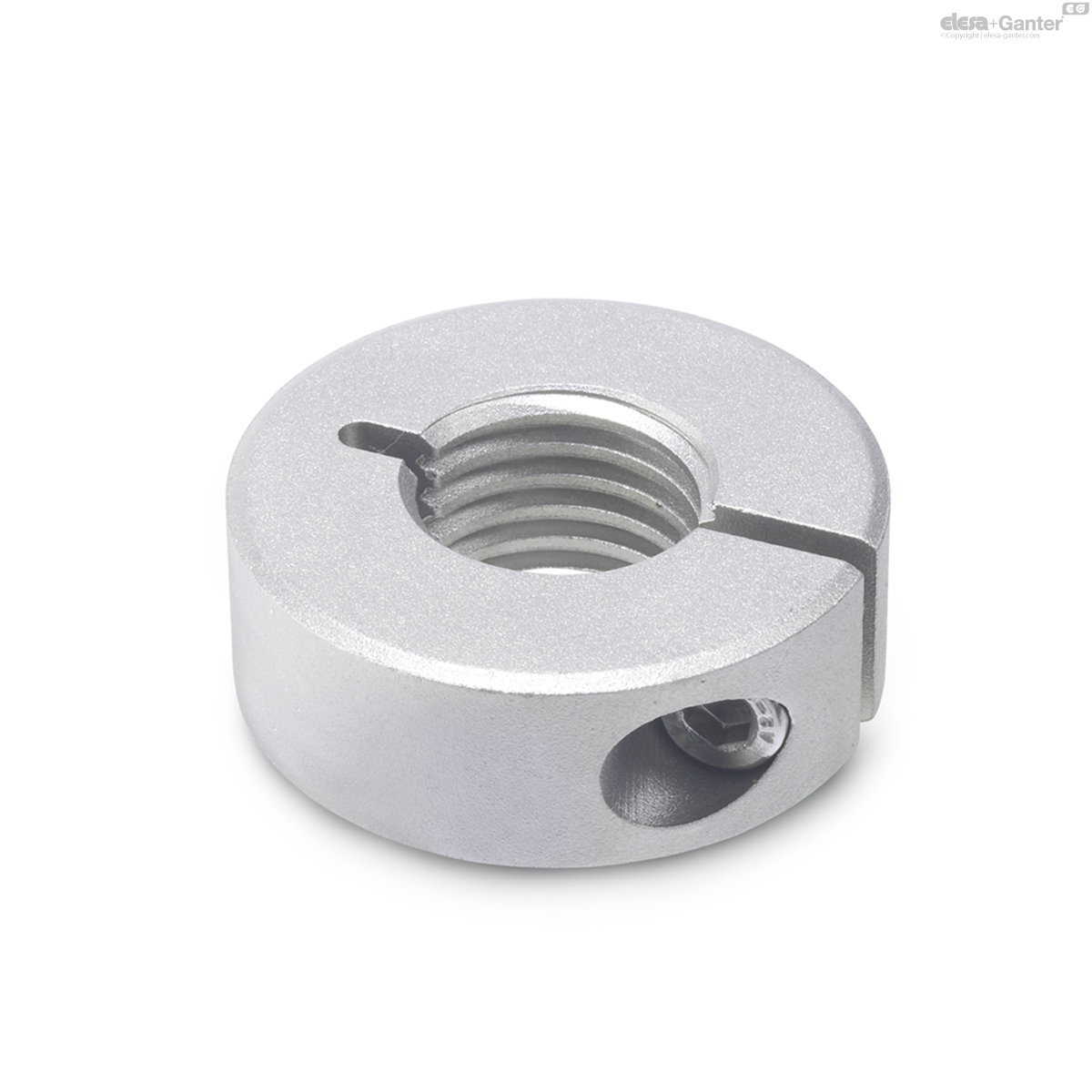

Stainless steel AISI 316LHC NI

Socket cap screw DIN 912

Stainless steel AISI 304

Threaded shaft collars GN 706.3 correspond in outer dimensions to the semi-split shaft collars GN 706.2.

The bore has, however, an internal thread so that the clamping ring can be screwed in like a nut, for instance, to a spindle thread in order to limit the adjustment range or the screw-in depth.

The clamping is then done by reducing the slot height without damaging the thread.

The thread d₃ for sizes d₁ = 20 to 32 is designed as a through hole, from size d₁ = 42 and larger, it is designed as blind hole.
