GN 6220-NIAfstandshouders

Roestvrij staal

Staal / RVS

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Roestvrij staal
Roestvrij staal
Roestvrij staal
GN 6220-NI
Roestvrij staal
Staal
GN 6220-ST
Staal

GN 6220-NI

Reset
Code
d
l1 ±0.1 Through hole
thread
l1 ±0.1 Threaded
blind hole
l1 ±0.1
e ≈
l2
s
t min.
GN 6220-NI-M2,5-5-A
M 2.5
5
-
-
5.8
-
5
7
1
GN 6220-NI-M2,5-8-A
M 2.5
8
-
-
5.8
-
5
7
2
GN 6220-NI-M2,5-10-A
M 2.5
10
-
-
5.8
-
5
7
2
GN 6220-NI-M2,5-12-A
M 2.5
12
-
-
5.8
-
5
7
2
GN 6220-NI-M2,5-15-A
M 2.5
-
15
-
5.8
-
5
7
3
GN 6220-NI-M2,5-20-A
M 2.5
-
20
-
5.8
-
5
7
4
GN 6220-NI-M2,5-25-A
M 2.5
-
25
-
5.8
-
5
7
4
GN 6220-NI-M2,5-30-A
M 2.5
-
30
-
5.8
-
5
7
5
GN 6220-NI-M3-8-A
M 3
8
-
-
6.4
-
5.5
7
2
GN 6220-NI-M3-10-A
M 3
10
-
-
6.4
-
5.5
7
2
GN 6220-NI-M3-12-A
M 3
12
-
-
6.4
-
5.5
7
2
GN 6220-NI-M3-15-A
M 3
-
15
-
6.4
-
5.5
7
3
GN 6220-NI-M3-20-A
M 3
-
20
-
6.4
-
5.5
7
4
GN 6220-NI-M3-25-A
M 3
-
25
-
6.4
-
5.5
7
4
GN 6220-NI-M3-30-A
M 3
-
30
-
6.4
-
5.5
7
6
GN 6220-NI-M3-35-A
M 3
-
35
-
6.4
-
5.5
7
7
GN 6220-NI-M3-40-A
M 3
-
40
-
6.4
-
5.5
7
7
GN 6220-NI-M3-45-A
M 3
-
45
-
6.4
-
5.5
7
8
GN 6220-NI-M3-50-A
M 3
-
50
-
6.4
-
5.5
7
9
GN 6220-NI-M4-10-A
M 4
10
-
-
8
-
7
9
4
GN 6220-NI-M4-12-A
M 4
12
-
-
8
-
7
9
6
GN 6220-NI-M4-15-A
M 4
15
-
-
8
-
7
9
4
GN 6220-NI-M4-20-A
M 4
-
20
-
8
-
7
9
5
GN 6220-NI-M4-25-A
M 4
-
25
-
8
-
7
9
10
GN 6220-NI-M4-30-A
M 4
-
30
-
8
-
7
9
14
GN 6220-NI-M4-35-A
M 4
-
35
-
8
-
7
9
10
GN 6220-NI-M4-40-A
M 4
-
40
-
8
-
7
9
11
GN 6220-NI-M4-45-A
M 4
-
45
-
8
-
7
9
12
GN 6220-NI-M4-50-A
M 4
-
50
-
8
-
7
9
16
GN 6220-NI-M4-60-A
M 4
-
60
-
8
-
7
9
20
GN 6220-NI-M4-70-A
M 4
-
70
-
8
-
7
9
22
GN 6220-NI-M4-80-A
M 4
-
80
-
8
-
7
9
26
GN 6220-NI-M5-20-A
M 5
-
20
-
9.2
-
8
10
10
GN 6220-NI-M5-25-A
M 5
-
25
-
9.2
-
8
10
8
GN 6220-NI-M5-30-A
M 5
-
30
-
9.2
-
8
10
10
GN 6220-NI-M5-35-A
M 5
-
35
-
9.2
-
8
10
14
GN 6220-NI-M5-40-A
M 5
-
40
-
9.2
-
8
10
16
GN 6220-NI-M5-45-A
M 5
-
45
-
9.2
-
8
10
20
GN 6220-NI-M5-50-A
M 5
-
50
-
9.2
-
8
10
18
GN 6220-NI-M5-60-A
M 5
-
60
-
9.2
-
8
10
24
GN 6220-NI-M5-70-A
M 5
-
70
-
9.2
-
8
10
34
GN 6220-NI-M5-80-A
M 5
-
80
-
9.2
-
8
10
32
GN 6220-NI-M5-12-A
M 5
12
-
-
9.2
-
8
10
6
GN 6220-NI-M5-15-A
M 5
15
-
-
9.2
-
8
10
6
GN 6220-NI-M6-12-A
M 6
12
-
-
11.5
-
10
12
6
GN 6220-NI-M6-15-A
M 6
15
-
-
11.5
-
10
12
7
GN 6220-NI-M6-20-A
M 6
-
20
-
11.5
-
10
10
12
GN 6220-NI-M6-25-A
M 6
-
25
-
11.5
-
10
10
12
GN 6220-NI-M6-30-A
M 6
-
30
-
11.5
-
10
12
16
GN 6220-NI-M6-35-A
M 6
-
35
-
11.5
-
10
12
20
GN 6220-NI-M6-40-A
M 6
-
40
-
11.5
-
10
12
22
GN 6220-NI-M6-45-A
M 6
-
45
-
11.5
-
10
12
26
GN 6220-NI-M6-50-A
M 6
-
50
-
11.5
-
10
12
30
GN 6220-NI-M6-60-A
M 6
-
60
-
11.5
-
10
12
34
GN 6220-NI-M6-70-A
M 6
-
70
-
11.5
-
10
12
41
GN 6220-NI-M6-80-A
M 6
-
80
-
11.5
-
10
12
48
GN 6220-NI-M8-15-A
M 8
15
-
-
15
-
13
14
12
GN 6220-NI-M8-20-A
M 8
20
-
-
15
-
13
14
16
GN 6220-NI-M8-25-A
M 8
-
25
-
15
-
13
12
22
GN 6220-NI-M8-30-A
M 8
-
30
-
15
-
13
14
24
GN 6220-NI-M8-35-A
M 8
-
35
-
15
-
13
14
30
GN 6220-NI-M8-40-A
M 8
-
40
-
15
-
13
14
34
GN 6220-NI-M8-45-A
M 8
-
45
-
15
-
13
14
40
GN 6220-NI-M8-50-A
M 8
-
50
-
15
-
13
14
45
GN 6220-NI-M8-60-A
M 8
-
60
-
15
-
13
14
58
GN 6220-NI-M8-70-A
M 8
-
70
-
15
-
13
14
68
GN 6220-NI-M8-80-A
M 8
-
80
-
15
-
13
14
79
GN 6220-NI-M10-25-A
M 10
25
-
-
19.5
-
17
16
36
GN 6220-NI-M10-30-A
M 10
30
-
-
19.5
-
17
16
42
GN 6220-NI-M10-35-A
M 10
-
35
-
19.5
-
17
16
50
GN 6220-NI-M10-40-A
M 10
-
40
-
19.5
-
17
16
57
GN 6220-NI-M10-45-A
M 10
-
45
-
19.5
-
17
16
66
GN 6220-NI-M10-50-A
M 10
-
50
-
19.5
-
17
16
72
GN 6220-NI-M10-60-A
M 10
-
60
-
19.5
-
17
16
90
GN 6220-NI-M10-70-A
M 10
-
70
-
19.5
-
17
16
111
GN 6220-NI-M10-80-A
M 10
-
80
-
19.5
-
17
16
131
GN 6220-NI-M10-100-A
M 10
-
100
-
19.5
-
17
16
171
GN 6220-NI-M2,5-8-B
M 2.5
-
-
8
5.8
6
5
5
2
GN 6220-NI-M2,5-10-B
M 2.5
-
-
10
5.8
6
5
5
2
GN 6220-NI-M2,5-12-B
M 2.5
-
-
12
5.8
6
5
7
2
GN 6220-NI-M2,5-15-B
M 2.5
-
-
15
5.8
6
5
7
3
GN 6220-NI-M2,5-20-B
M 2.5
-
-
20
5.8
6
5
7
4
GN 6220-NI-M2,5-25-B
M 2.5
-
-
25
5.8
6
5
7
4
GN 6220-NI-M2,5-30-B
M 2.5
-
-
30
5.8
6
5
7
5
GN 6220-NI-M3-8-B
M 3
-
-
8
6.4
6
5.5
5
2
GN 6220-NI-M3-10-B
M 3
-
-
10
6.4
6
5.5
5
2
GN 6220-NI-M3-12-B
M 3
-
-
12
6.4
6
5.5
7
3
GN 6220-NI-M3-15-B
M 3
-
-
15
6.4
6
5.5
7
3
GN 6220-NI-M3-20-B
M 3
-
-
20
6.4
6
5.5
7
4
GN 6220-NI-M3-25-B
M 3
-
-
25
6.4
6
5.5
7
5
GN 6220-NI-M3-30-B
M 3
-
-
30
6.4
6
5.5
7
6
GN 6220-NI-M3-35-B
M 3
-
-
35
6.4
6
5.5
7
7
GN 6220-NI-M3-40-B
M 3
-
-
40
6.4
6
5.5
7
8
GN 6220-NI-M3-45-B
M 3
-
-
45
6.4
6
5.5
7
9
GN 6220-NI-M3-50-B
M 3
-
-
50
6.4
6
5.5
7
10
GN 6220-NI-M4-10-B
M 4
-
-
10
8
8
7
5
4
GN 6220-NI-M4-12-B
M 4
-
-
12
8
8
7
7
4
GN 6220-NI-M4-15-B
M 4
-
-
15
8
8
7
9
5
GN 6220-NI-M4-20-B
M 4
-
-
20
8
8
7
9
7
GN 6220-NI-M4-25-B
M 4
-
-
25
8
8
7
9
8
GN 6220-NI-M4-30-B
M 4
-
-
30
8
8
7
9
10
GN 6220-NI-M4-35-B
M 4
-
-
35
8
8
7
9
11
GN 6220-NI-M4-40-B
M 4
-
-
40
8
8
7
9
13
GN 6220-NI-M4-45-B
M 4
-
-
45
8
8
7
9
15
GN 6220-NI-M4-50-B
M 4
-
-
50
8
8
7
9
16
GN 6220-NI-M4-60-B
M 4
-
-
60
8
8
7
9
19
GN 6220-NI-M4-70-B
M 4
-
-
70
8
8
7
9
23
GN 6220-NI-M4-80-B
M 4
-
-
80
8
8
7
9
26
GN 6220-NI-M5-12-B
M 5
-
-
12
9.2
8
8
7
6
GN 6220-NI-M5-15-B
M 5
-
-
15
9.2
8
8
10
6
GN 6220-NI-M5-20-B
M 5
-
-
20
9.2
8
8
10
10
GN 6220-NI-M5-25-B
M 5
-
-
25
9.2
8
8
10
12
GN 6220-NI-M5-30-B
M 5
-
-
30
9.2
8
8
10
12
GN 6220-NI-M5-35-B
M 5
-
-
35
9.2
8
8
10
15
GN 6220-NI-M5-40-B
M 5
-
-
40
9.2
8
8
10
17
GN 6220-NI-M5-45-B
M 5
-
-
45
9.2
8
8
10
19
GN 6220-NI-M5-50-B
M 5
-
-
50
9.2
8
8
10
21
GN 6220-NI-M5-60-B
M 5
-
-
60
9.2
8
8
10
25
GN 6220-NI-M5-70-B
M 5
-
-
70
9.2
8
8
10
30
GN 6220-NI-M5-80-B
M 5
-
-
80
9.2
8
8
10
34
GN 6220-NI-M6-15-B
M 6
-
-
15
11.5
10
10
10
10
GN 6220-NI-M6-20-B
M 6
-
-
20
11.5
10
10
12
12
GN 6220-NI-M6-25-B
M 6
-
-
25
11.5
10
10
12
15
GN 6220-NI-M6-30-B
M 6
-
-
30
11.5
10
10
12
22
GN 6220-NI-M6-35-B
M 6
-
-
35
11.5
10
10
12
20
GN 6220-NI-M6-40-B
M 6
-
-
40
11.5
10
10
12
26
GN 6220-NI-M6-45-B
M 6
-
-
45
11.5
10
10
12
30
GN 6220-NI-M6-50-B
M 6
-
-
50
11.5
10
10
12
32
GN 6220-NI-M6-60-B
M 6
-
-
60
11.5
10
10
12
40
GN 6220-NI-M6-70-B
M 6
-
-
70
11.5
10
10
12
46
GN 6220-NI-M6-80-B
M 6
-
-
80
11.5
10
10
12
56
GN 6220-NI-M8-20-B
M 8
-
-
20
15
14
13
14
21
GN 6220-NI-M8-25-B
M 8
-
-
25
15
14
13
14
26
GN 6220-NI-M8-30-B
M 8
-
-
30
15
14
13
14
32
GN 6220-NI-M8-35-B
M 8
-
-
35
15
14
13
14
38
GN 6220-NI-M8-40-B
M 8
-
-
40
15
14
13
14
44
GN 6220-NI-M8-45-B
M 8
-
-
45
15
14
13
14
50
GN 6220-NI-M8-50-B
M 8
-
-
50
15
14
13
14
56
GN 6220-NI-M8-60-B
M 8
-
-
60
15
14
13
14
66
GN 6220-NI-M8-70-B
M 8
-
-
70
15
14
13
14
78
GN 6220-NI-M8-80-B
M 8
-
-
80
15
14
13
14
89
GN 6220-NI-M10-25-B
M 10
-
-
25
19.5
16
17
16
45
GN 6220-NI-M10-30-B
M 10
-
-
30
19.5
16
17
16
56
GN 6220-NI-M10-35-B
M 10
-
-
35
19.5
16
17
16
64
GN 6220-NI-M10-40-B
M 10
-
-
40
19.5
16
17
16
77
GN 6220-NI-M10-45-B
M 10
-
-
45
19.5
16
17
16
84
GN 6220-NI-M10-50-B
M 10
-
-
50
19.5
16
17
16
94
GN 6220-NI-M10-60-B
M 10
-
-
60
19.5
16
17
16
113
GN 6220-NI-M10-70-B
M 10
-
-
70
19.5
16
17
16
133
GN 6220-NI-M10-80-B
M 10
-
-
80
19.5
16
17
16
152

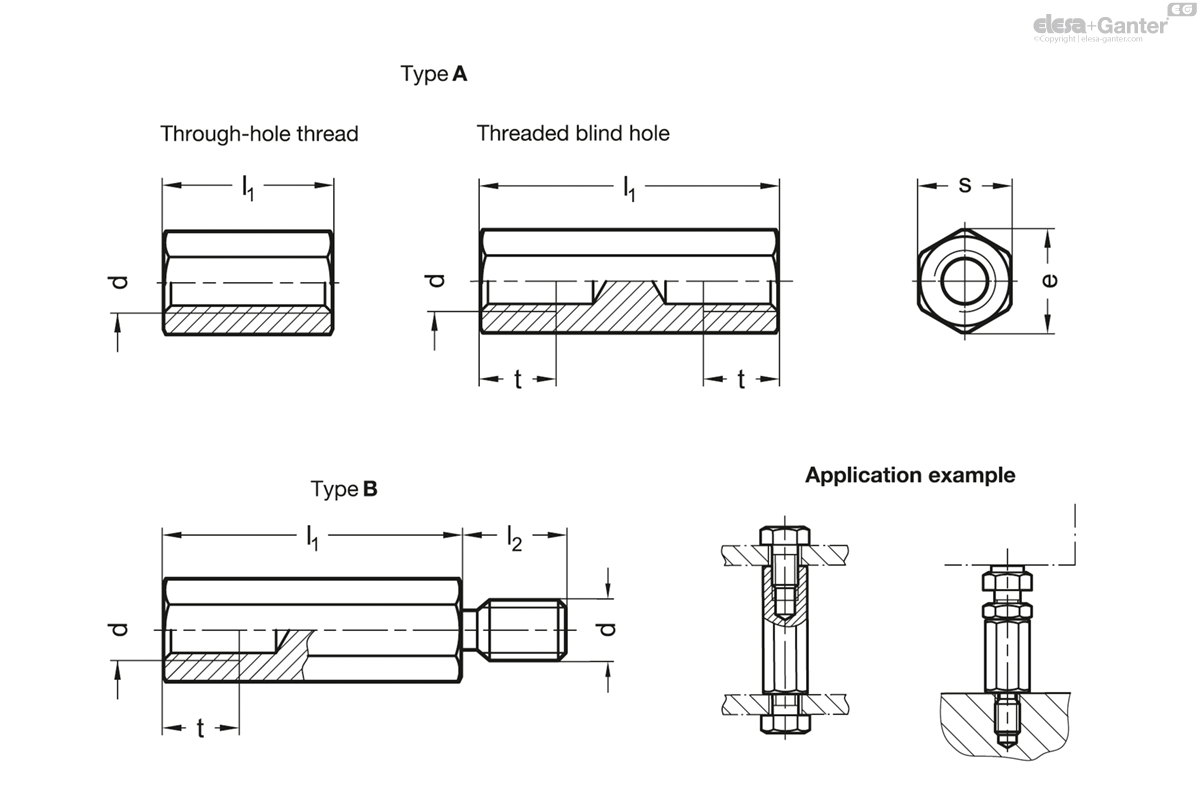

Types

  • Type A: Internal thread
  • Type B: Internal thread and threaded stud

Steel ST

Zinc plated, blue passivated

Stainless Steel AISI 303 NI

Matte shot-blasted

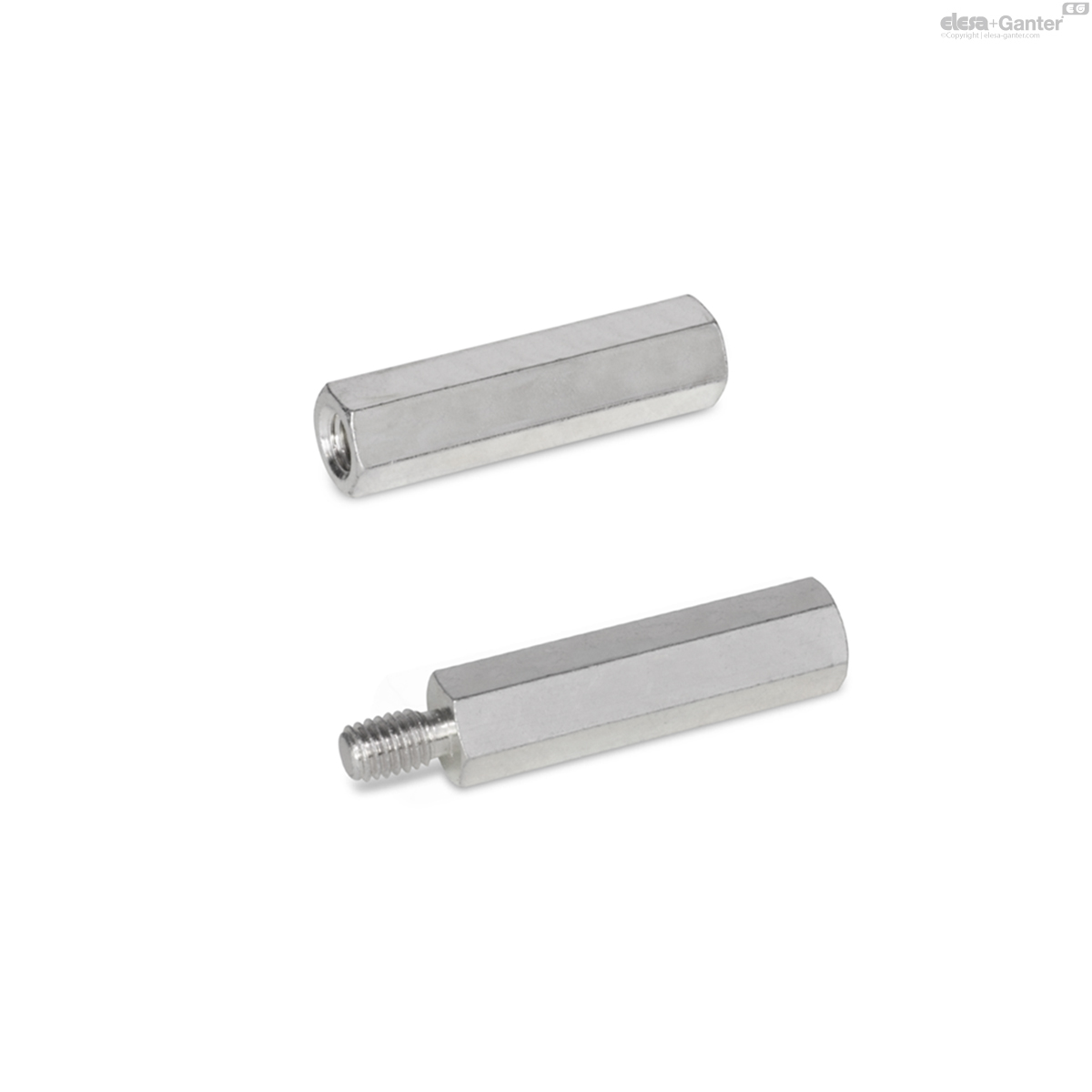

Spacers GN 6220 are commonly used as spacing rods. They allow parts to be fastened with an offset parallel to their mounting plane. Type A is also used as a connecting nut.
