Technical
datasheet
voor montage van kabels en leidingen
|
Code
|
d
|
h1
|
b1
|
b2
|
h2
|
h3
|
l1
|
l2
|
Nominal

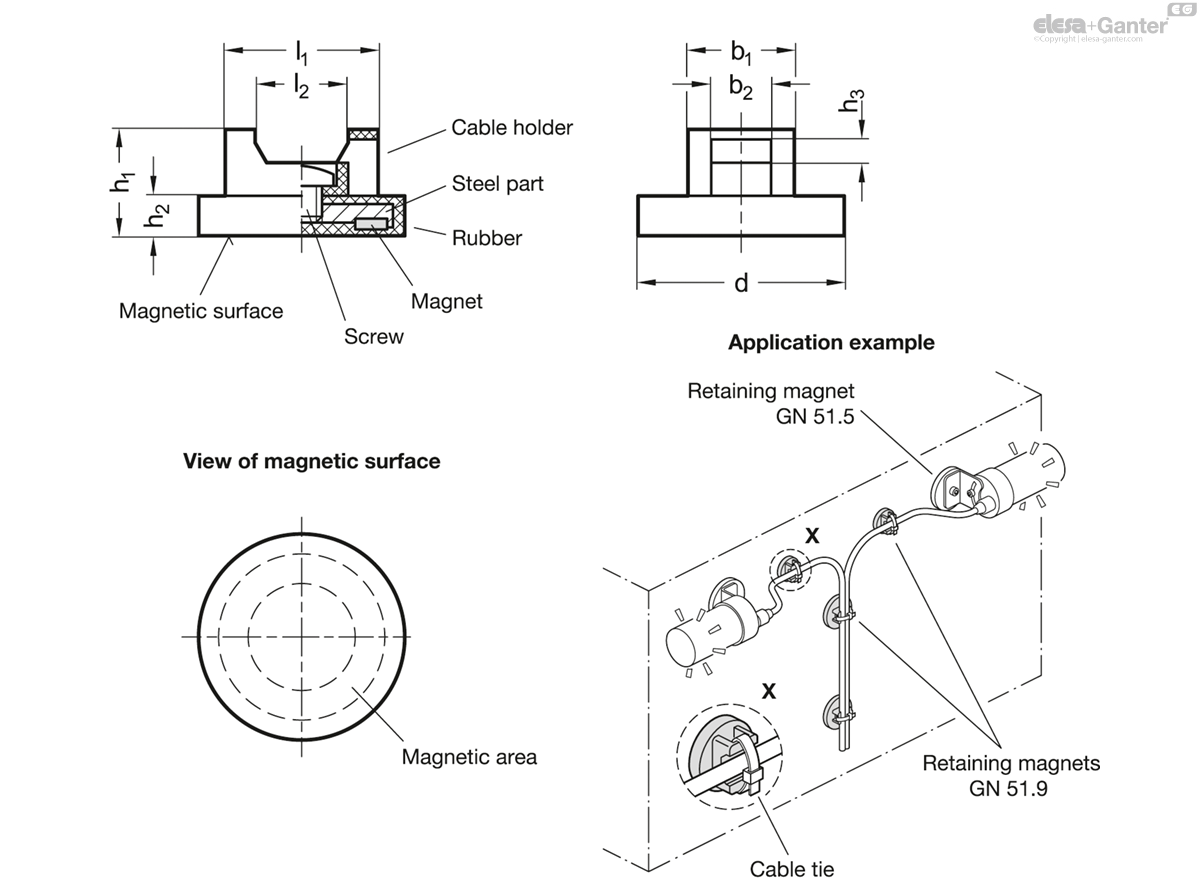

magnetic forces in N |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 51.9-ND-18-13-SW
|
18
|
13
|
10
|
5
|
6
|
2.5
|
15
|
9
|
25
|
7
|
|
GN 51.9-ND-22-16-SW
|
22
|
16
|
16
|
9
|
6
|
3.5
|
23
|
14
|
38
|
12
|
|
GN 51.9-ND-31-16-SW
|
31
|
16
|
16
|
9
|
6
|
3.5
|
23
|
14
|
89
|
26
|
|
GN 51.9-ND-43-16-SW
|
43
|
16
|
16
|
9
|
6
|
3.5
|
23
|
14
|
100
|
30
|
Steel part
Zinc plated
Cable holder
Plastic
Screw
Steel, zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
≈ 80 shore A
Black

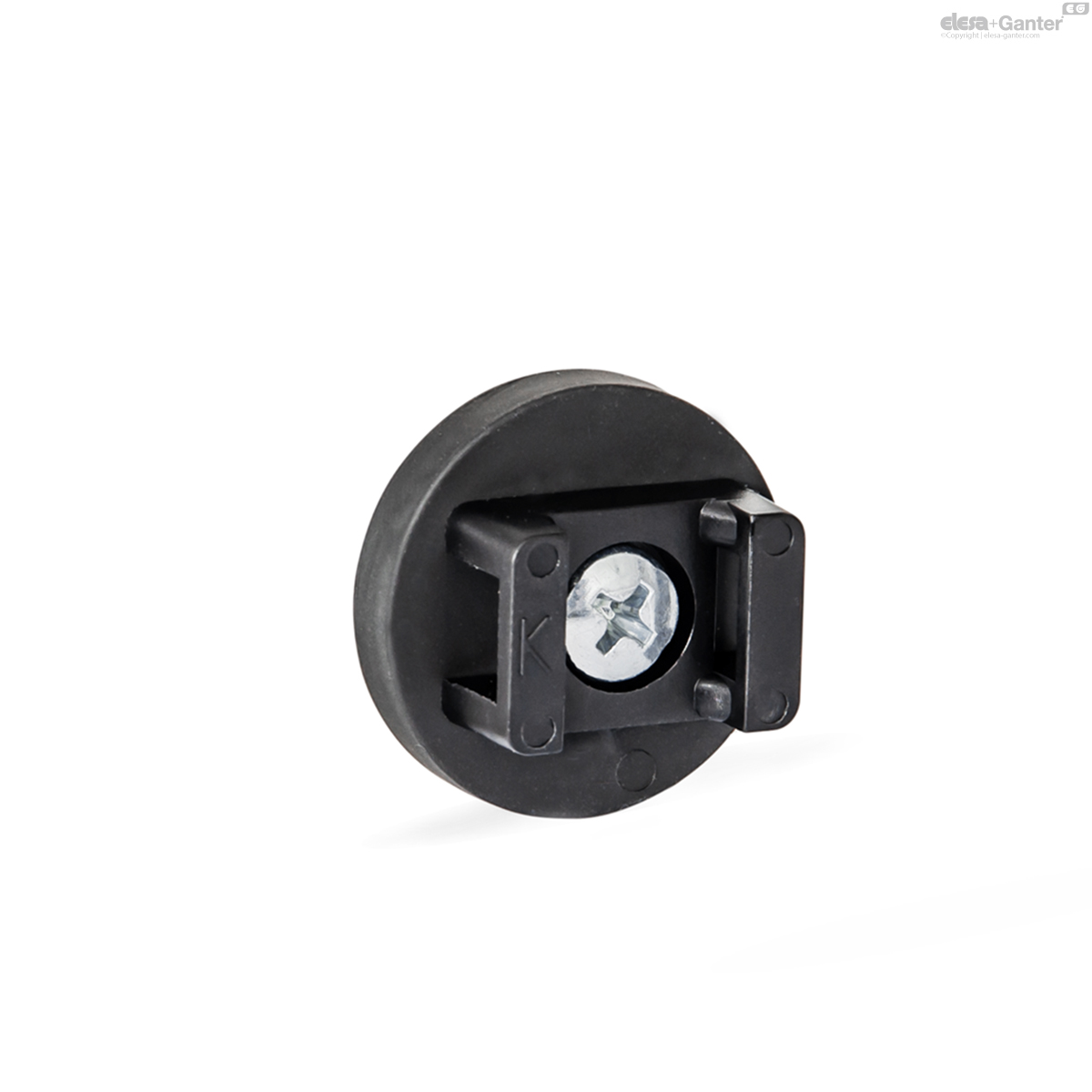

The retaining magnets GN 51.9 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.
Lines and hoses that must be frequently repositioned or removed entirely for maintenance or cleaning can be easily and securely fastened to the cable holder with cable ties.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
