Technical
datasheet

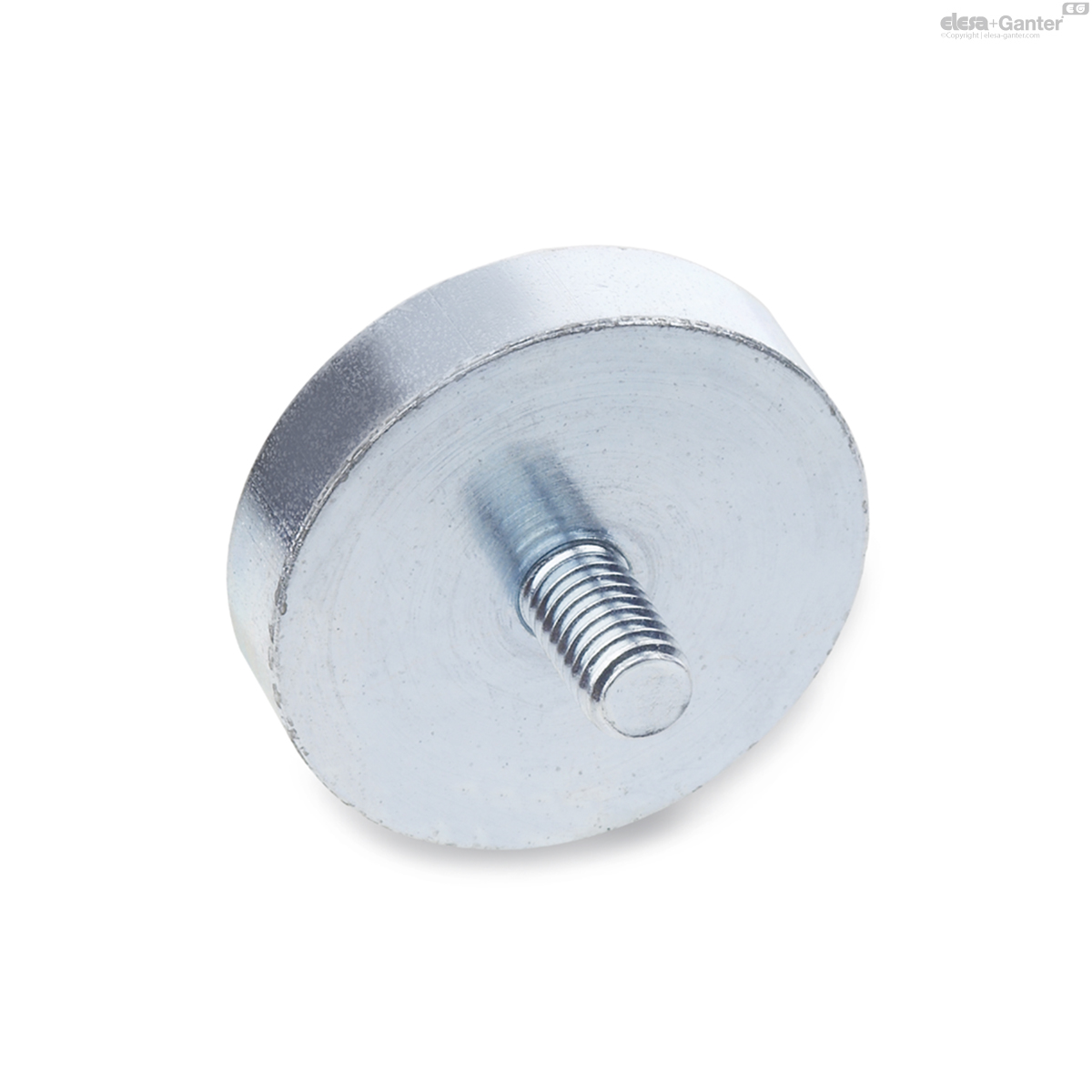

schijfmagneet, met draadstang
|

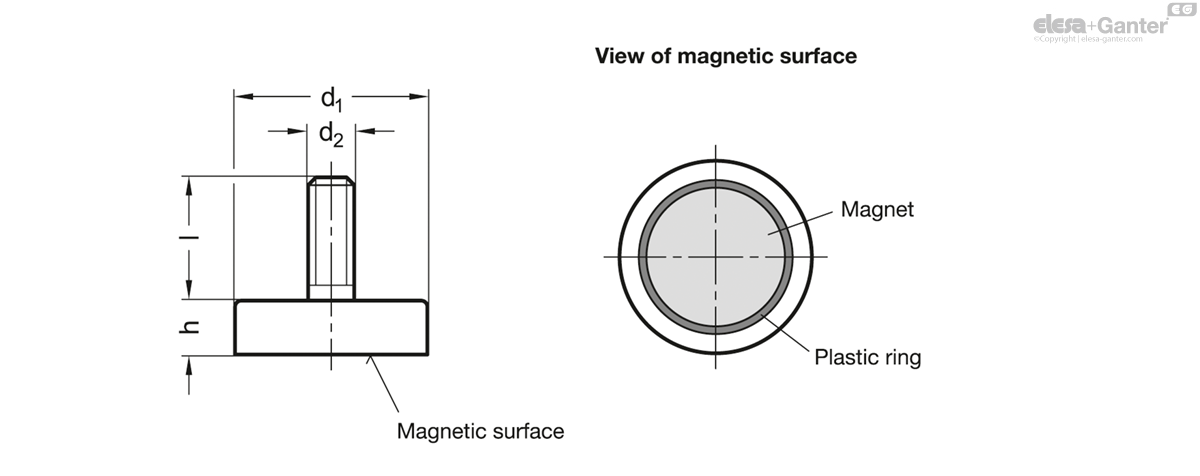

Code
|
d1
|
d2
|
h
|
l
|
Nominal adhesive forces in N
|
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
GN 50.3-HF-10-M3
|
10 ±0.1
|
M 3
|
4.5 +0.2/-0.1
|
7
|
4
|
2
|
|
GN 50.3-HF-13-M3
|
13 ±0.1
|
M 3
|
4.5 +0.2/-0.1
|
7
|
10
|
3
|
|
GN 50.3-HF-16-M3
|
16 ±0.1
|
M 3
|
4.5 +0.2/-0.1
|
7
|
18
|
5
|
|
GN 50.3-HF-16-M4
|
16 ±0.1
|
M 4
|
4.5 +0.2/-0.1
|
6
|
18
|
6
|
|
GN 50.3-HF-20-M3
|
20 ±0.1
|
M 3
|
6 +0.2/-0.1
|
7
|
30
|
10
|
|
GN 50.3-HF-25-M4
|
25 ±0.1
|
M 4
|
7 +0.3/-0.2
|
8
|
40
|
19
|
|
GN 50.3-HF-25-M6
|
25 ±0.1
|
M 6
|
7 +0.3/-0.2
|
20
|
40
|
22
|
|
GN 50.3-HF-32-M4
|
32 ±0.1
|
M 4
|
7 +0.3/-0.2
|
8
|
80
|
30
|
|
GN 50.3-HF-32-M6
|
32 ±0.1
|
M 6
|
7 +0.3/-0.2
|
12
|
80
|
31
|
|
GN 50.3-HF-32-M8
|
32 ±0.1
|
M 8
|
7 +0.3/-0.2
|
10
|
80
|
32
|
|
GN 50.3-HF-47-M6
|
47 +0.2/-0.1
|
M 6
|
9 +0.5/-0.2
|
8
|
180
|
85
|
|
GN 50.3-HF-57-M6
|
57 +0.2/-0.1
|
M 6
|
10.5 +0.5/-0.2
|
8
|
280
|
146
|
|
GN 50.3-HF-63-M6
|
63 +0.3/-0.1
|
M 6
|
14 +0.5/-0.2
|
15
|
350
|
233
|
|
GN 50.3-HF-80-M8
|
80 +0.3/-0.1
|
M 8
|
10 +0.5/-0.2
|
13
|
600
|
269
|
|
GN 50.3-ND-6-M3
|
6 ±0.1
|
M 3
|
4.5 ±0.1
|
7
|
5
|
1
|
|
GN 50.3-ND-8-M4
|
8 ±0.1
|
M 4
|
4.5 ±0.1
|
8
|
13
|
2
|
|
GN 50.3-ND-10-M3
|
10 ±0.1
|
M 3
|
4.5 ±0.1
|
7
|
25
|
3
|
|
GN 50.3-ND-10-M4
|
10 ±0.1
|
M 4
|
4.5 ±0.1
|
8
|
25
|
3
|
|
GN 50.3-ND-13-M5
|
13 ±0.1
|
M 5
|
4.5 ±0.1
|
8
|
60
|
5
|
|
GN 50.3-ND-16-M4
|
16 ±0.1
|
M 4
|
4.5 ±0.1
|
8
|
85
|
7
|
|
GN 50.3-ND-16-M6
|
16 ±0.1
|
M 6
|
4.5 ±0.1
|
8
|
95
|
8
|
|
GN 50.3-ND-20-M6
|
20 ±0.1
|
M 6
|
6 ±0.1
|
10
|
140
|
16
|
|
GN 50.3-ND-25-M6
|
25 ±0.1
|
M 6
|
7 ±0.2
|
10
|
200
|
28
|
|
GN 50.3-ND-32-M6
|
32 ±0.1
|
M 6
|
7 ±0.2
|
10
|
350
|
42
|
|
GN 50.3-ND-40-M8
|
40 ±0.1
|
M 8
|
8 ±0.2
|
12
|
670
|
80
|
|
GN 50.3-ND-47-M8
|
47 +0.2/-0.1
|
M 8
|
9.2 ±0.2
|
13
|
790
|
107
|
Housing
Steel, zinc plated
Materials of the magnet:
Hard ferrite HF
Temperature resistant up to 200 °C
NdFeB ND
Neodymium, iron, boron
Temperature resistant up to 80 °C
Retaining magnets GN 50.3 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
