GN 417.1-STLocators

Staal

Staal / roestvrij staal, voor indexeerbouten GN 417

Technical datasheet

GN 417.1-ST

Reset

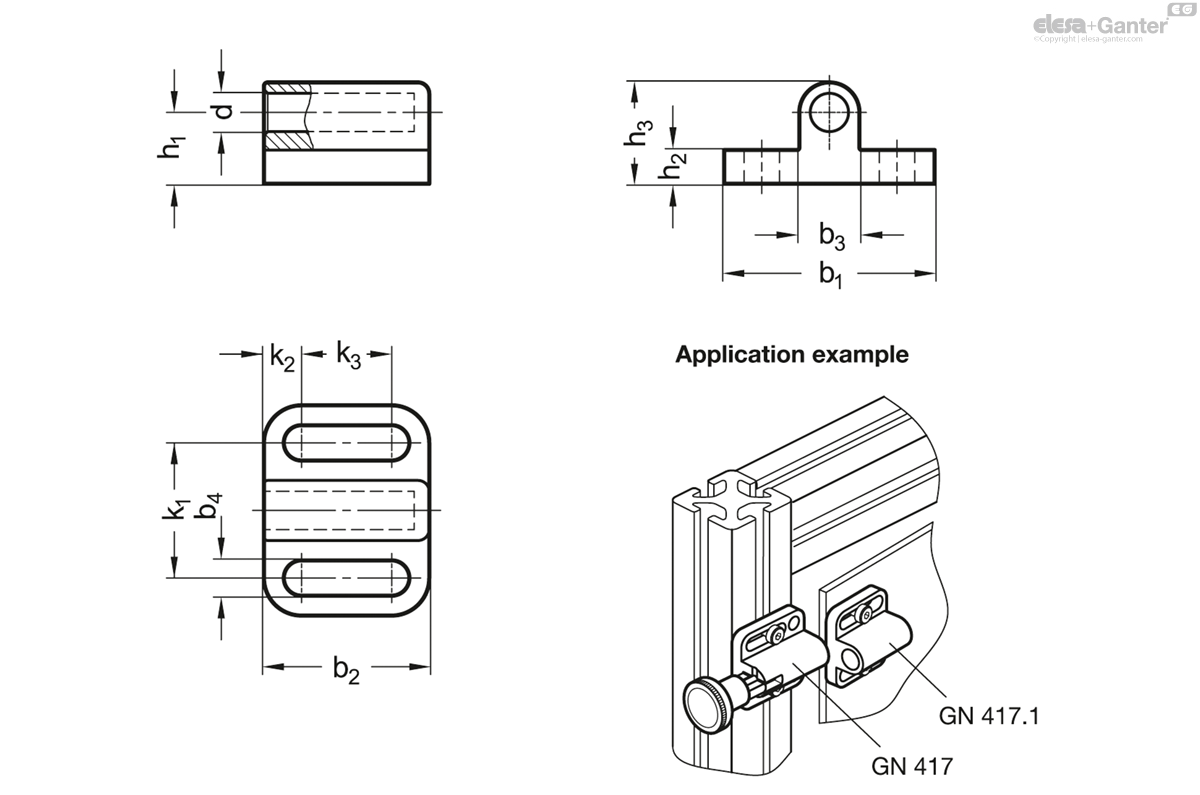

Code	d Nominal dimension	d Actual dimension +0.1	b₁	b₂	b₃	b₄ -0.2	h₁	h₂	h₃	k₁	k₂	k₃

GN 417.1-4-ST-SW	4	4.1	22	16.5	6	3.3	7	4	10	14	4	8.5
GN 417.1-5-ST-SW	5	5.1	28	22	8	4.3	9.5	4.5	13.5	18	5	12
GN 417.1-6-ST-SW	6	6.2	32	27.5	10	5.4	10.5	5	15.5	21	5.5	16.5
GN 417.1-8-ST-SW	8	8.2	34	33	12	5.4	12.5	6	18.5	23	5.5	22
GN 417.1-10-ST-SW	10	10.2	39	35	14.5	6.8	14.5	6	21.75	27	6	23

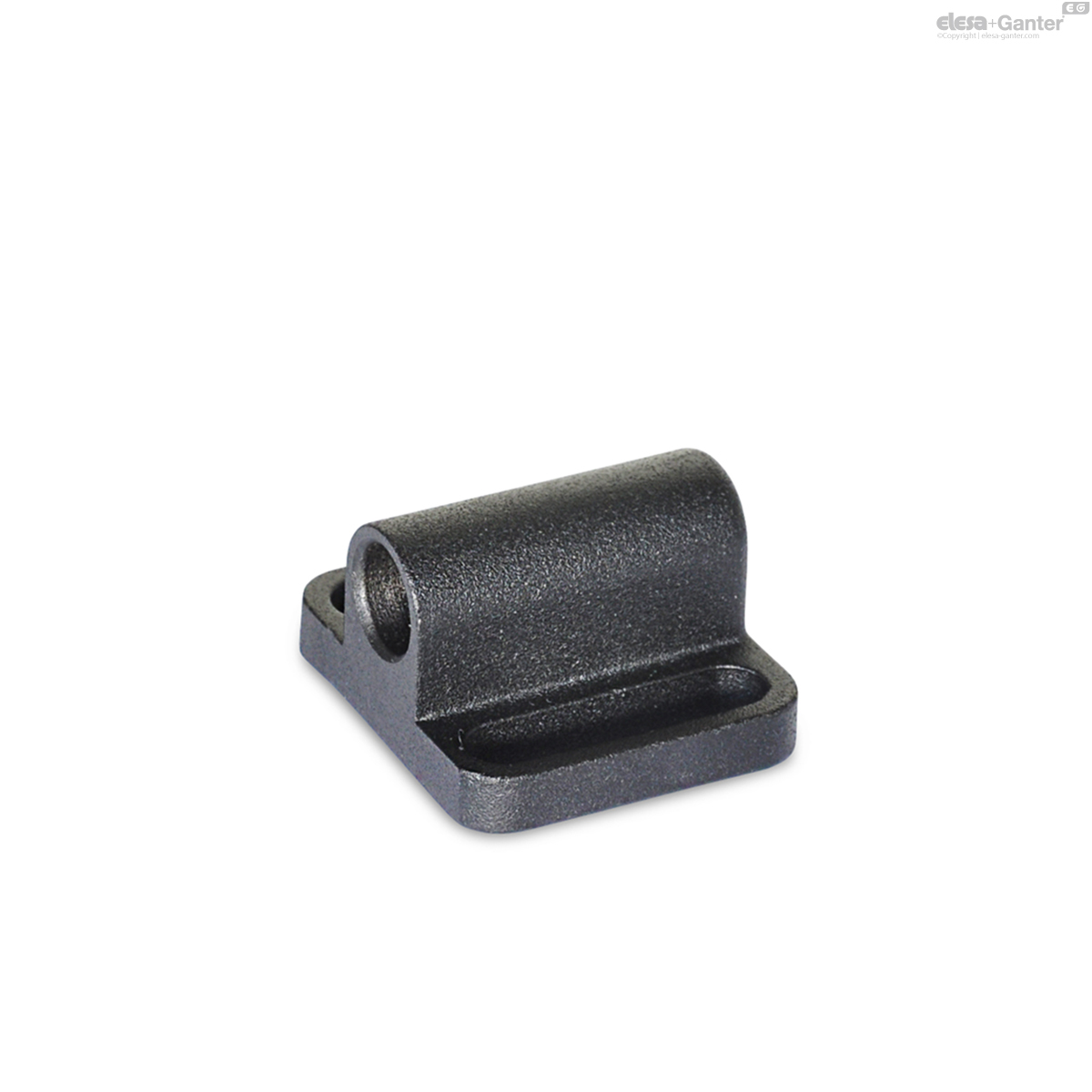

Version in Steel precision casting ST

Powder coated

Black, RAL 9005, textured finish SW

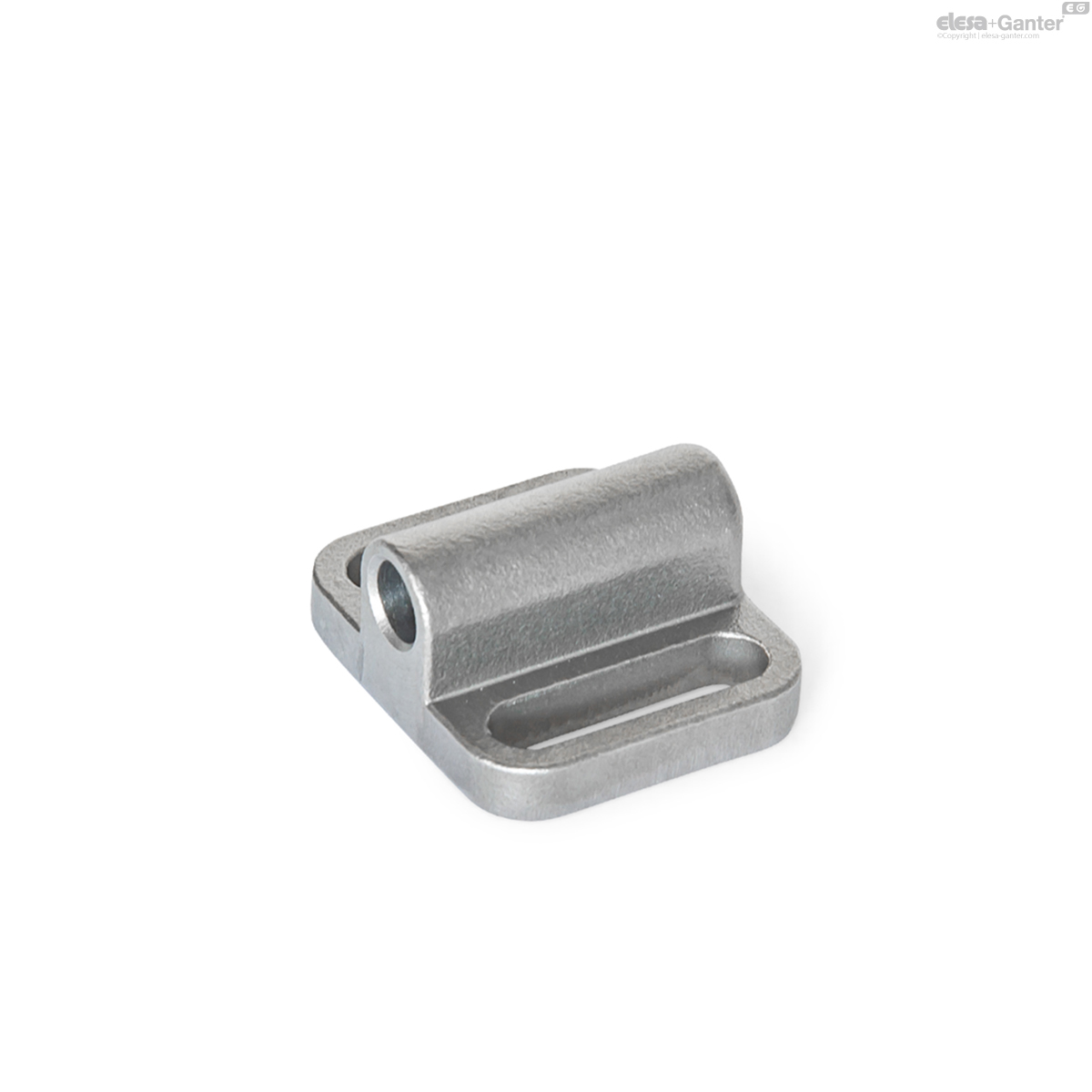

Version in Stainless Steel precision casting NI

AISI CF-8

Blank, matte shot-blasted GS

Locators GN 417.1 are used for positioning the indexing pins of indexing plungers GN 417.

They are mounted using slots that permit adjustment parallel to the mounting hole. For example, this allows gap dimensions to be adjusted for doors or tolerance errors to be compensated. Washers make it easier to mount the parts using the slots.
