Technical datasheet
GN 350-NINivelleersets
Nivelleersets, roestvrijstaal
Staal/roestvrij staal, lange uitvoering
GN 350-NI
|

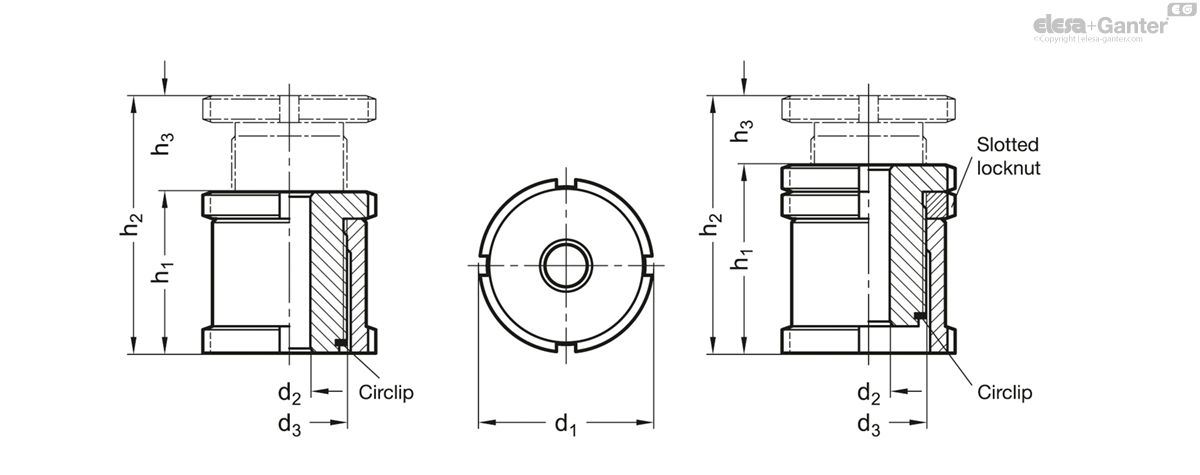

Code
|
d1
|
d2
|
d3
|
h1
|
h2
|
h3
|
For screw
|
r
|
Static load F
in kN F1 |
Static load F
in kN F2 |
Code no. for
C-Spanner |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GN 350-25-6,6-A-NI
|
25
|
6.6
|
M 15 x 1
|
33
|
43
|
10
|
M 6
|
M 6
|
40
|
30.7
|
1810-A25-28
|
69
|
|
GN 350-32-6,6-A-NI
|
32
|
6.6
|
M 20 x 1
|
41
|
55
|
14
|
M 6
|
M 6
|
65
|
55.7
|
1810-A30-32
|
163
|
|
GN 350-32-9-A-NI
|
32
|
9
|
M 20 x 1
|
41
|
55
|
14
|
M 8
|
M 8
|
65
|
48
|
1810-A30-32
|
154
|
|
GN 350-32-11-A-NI
|
32
|
11
|
M 20 x 1
|
41
|
55
|
14
|
M 10
|
M 10
|
65
|
37.9
|
1810-A30-32
|
140
|
|
GN 350-45-11-A-NI
|
45
|
11
|
M 30 x 1.5
|
49
|
67
|
18
|
M 10
|
M 10
|
120
|
92.9
|
1810-A45-50
|
390
|
|
GN 350-45-13,5-A-NI
|
45
|
13.5
|
M 30 x 1.5
|
49
|
67
|
18
|
M 12
|
M 12
|
120
|
80.4
|
1810-A45-50
|
377
|
|
GN 350-45-17,5-A-NI
|
45
|
17.5
|
M 30 x 1.5
|
49
|
67
|
18
|
M 16
|
M 16
|
120
|
45.5
|
1810-A45-50
|
320
|
|
GN 350-58-17,5-A-NI
|
58
|
17.5
|
M 40 x 1.5
|
63
|
86
|
23
|
M 16
|
M 16
|
210
|
136
|
1810-A58-62
|
791
|
|
GN 350-58-22-A-NI
|
58
|
22
|
M 40 x 1.5
|
63
|
86
|
23
|
M 20
|
M 20
|
210
|
90
|
1810-A58-62
|
733
|
|
GN 350-58-26-A-NI
|
58
|
26
|
M 40 x 1.5
|
63
|
86
|
23
|
M 24
|
M 24
|
210
|
37
|
1810-A58-62
|
668
|
|
GN 350-70-22-A-NI
|
70
|
22
|
M 50 x 1.5
|
77
|
106
|
29
|
M 20
|
M 20
|
330
|
210
|
1810-A68-75
|
1452
|
|
GN 350-70-26-A-NI
|
70
|
26
|
M 50 x 1.5
|
77
|
106
|
29
|
M 24
|
M 24
|
330
|
157
|
1810-A68-75
|
1370
|
|
GN 350-70-33-A-NI
|
70
|
33
|
M 50 x 1.5
|
77
|
106
|
29
|
M 30
|
M 30
|
330
|
53
|
1810-A68-75
|
1210
|
|
GN 350-80-26-A-NI
|
80
|
26
|
M 60 x 2
|
87
|
126
|
39
|
M 24
|
M 24
|
495
|
322
|
1810-A80-90
|
2180
|
|
GN 350-80-33-A-NI
|
80
|
33
|
M 60 x 2
|
87
|
126
|
39
|
M 30
|
M 30
|
495
|
218
|
1810-A80-90
|
1875
|
|
GN 350-80-39-A-NI
|
80
|
39
|
M 60 x 2
|
87
|
126
|
39
|
M 36
|
M 36
|
495
|
101
|
1810-A80-90
|
1683
|
|
GN 350-25-6,6-AK-NI
|
25
|
6.6
|
M 15 x 1
|
33
|
43
|
10
|
M 6
|
M 6
|
40
|
30.7
|
1810-A25-28
|
79
|
|
GN 350-32-6,6-AK-NI
|
32
|
6.6
|
M 20 x 1
|
41
|
55
|
14
|
M 6
|
M 6
|
65
|
55.7
|
1810-A30-32
|
181
|
|
GN 350-32-9-AK-NI
|
32
|
9
|
M 20 x 1
|
41
|
55
|
14
|
M 8
|
M 8
|
65
|
48
|
1810-A30-32
|
174
|
|
GN 350-32-11-AK-NI
|
32
|
11
|
M 20 x 1
|
41
|
55
|
14
|
M 10
|
M 10
|
65
|
37.9
|
1810-A30-32
|
167
|
|
GN 350-45-11-AK-NI
|
45
|
11
|
M 30 x 1.5
|
49
|
67
|
18
|
M 10
|
M 10
|
120
|
92.9
|
1810-A45-50
|
411
|
|
GN 350-45-13,5-AK-NI
|
45
|
13.5
|
M 30 x 1.5
|
49
|
67
|
18
|
M 12
|
M 12
|
120
|
80.4
|
1810-A45-50
|
405
|
|
GN 350-45-17,5-AK-NI
|
45
|
17.5
|
M 30 x 1.5
|
49
|
67
|
18
|
M 16
|
M 16
|
120
|
45.5
|
1810-A45-50
|
365
|
|
GN 350-58-17,5-AK-NI
|
58
|
17.5
|
M 40 x 1.5
|
63
|
86
|
23
|
M 16
|
M 16
|
210
|
136
|
1810-A58-62
|
893
|
|
GN 350-58-22-AK-NI
|
58
|
22
|
M 40 x 1.5
|
63
|
86
|
23
|
M 20
|
M 20
|
210
|
90
|
1810-A58-62
|
834
|
|
GN 350-58-26-AK-NI
|
58
|
26
|
M 40 x 1.5
|
63
|
86
|
23
|
M 24
|
M 24
|
210
|
37
|
1810-A58-62
|
775
|
|
GN 350-70-22-AK-NI
|
70
|
22
|
M 50 x 1.5
|
77
|
106
|
29
|
M 20
|
M 20
|
330
|
210
|
1810-A68-75
|
1607
|
|
GN 350-70-26-AK-NI
|
70
|
26
|
M 50 x 1.5
|
77
|
106
|
29
|
M 24
|
M 24
|
330
|
157
|
1810-A68-75
|
1426
|
|
GN 350-70-33-AK-NI
|
70
|
33
|
M 50 x 1.5
|
77
|
106
|
29
|
M 30
|
M 30
|
330
|
53
|
1810-A68-75
|
1354
|
|
GN 350-80-26-AK-NI
|
80
|
26
|
M 60 x 2
|
87
|
126
|
39
|
M 24
|
M 24
|
495
|
322
|
1810-A80-90
|
2356
|
|
GN 350-80-33-AK-NI
|
80
|
33
|
M 60 x 2
|
87
|
126
|
39
|
M 30
|
M 30
|
495
|
218
|
1810-A80-90
|
2155
|
|
GN 350-80-39-AK-NI
|
80
|
39
|
M 60 x 2
|
87
|
126
|
39
|
M 36
|
M 36
|
495
|
101
|
1810-A80-90
|
1852
|
Types
- Type A: without lock nut
- Type AK: with lock nut
Version in Steel
Steel, 1.7225 (42 CrMo 4V) ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 303
(X 10 CrNiS 18-9) NI
F1: max. total load
F2: max. load after deduction of the max. preload
- for screws 8.8 µ = 0.125 (Steel version)
- for screws 6.8 µ = 0.14 (Stainless Steel version)
Levelling sets GN 350 are used for levelling and linking operations. They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.
Normally this screw is permanently and securely locked by the static load created when the mounting screw is tightened.
Should this not be sufficient, the use of a locknut (Type AK) is recommended.
- C-Spanner DIN 1810 (code no. see table)
