Technical datasheet
GN 3490Schroefdraadflenzen
Schroefdraadflenzen
voor profielsystemen
GN 3490
|

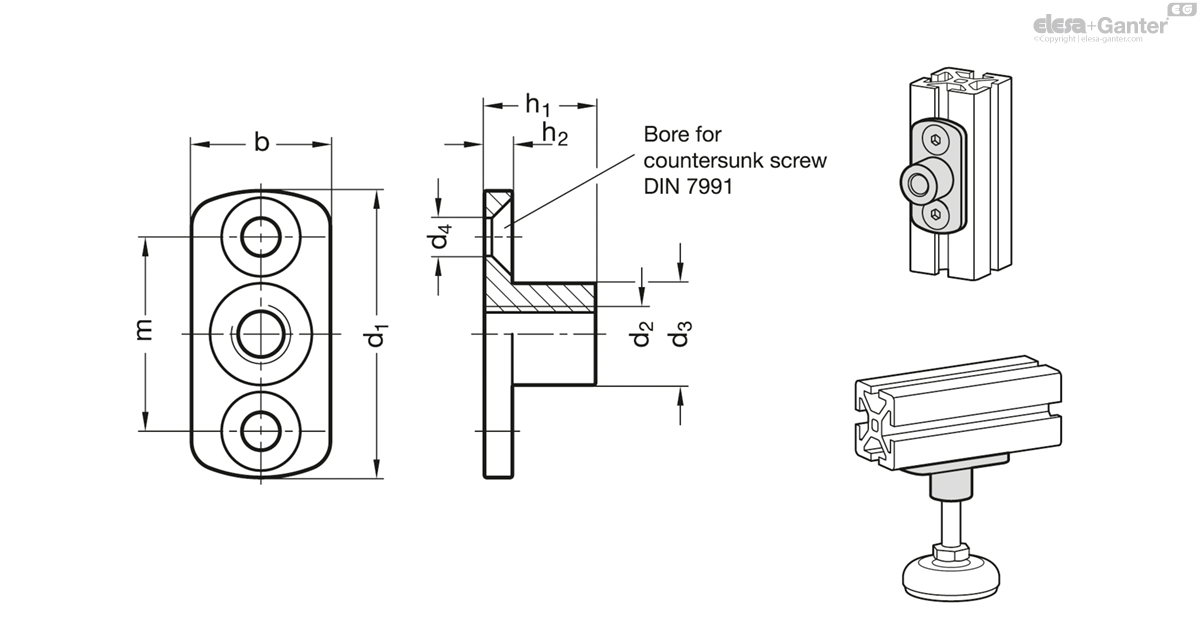

Code
|
d1
|
d2
|
h1
|
b
|
d3
|
d4
|
h2
|
m
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
45
|
M 6
|
16
|
25
|
15
|
M 6
|
6
|
30
|
52
| ||
|
45
|
M 6
|
16
|
25
|
15
|
M 6
|
6
|
30
|
52
| ||
|
45
|
M 8
|
16
|
25
|
15
|
M 6
|
6
|
30
|
50
| ||
|
45
|
M 8
|
16
|
25
|
15
|
M 6
|
6
|
30
|
50
| ||
|
60
|
M 10
|
24
|
30
|
21.5
|
M 8
|
6
|
40
|
108
| ||
|
60
|
M 10
|
24
|
30
|
21.5
|
M 8
|
6
|
40
|
108
| ||
|
60
|
M 12
|
24
|
30
|
21.5
|
M 8
|
6
|
40
|
103
| ||
|
60
|
M 12
|
24
|
30
|
21.5
|
M 8
|
6
|
40
|
103
|

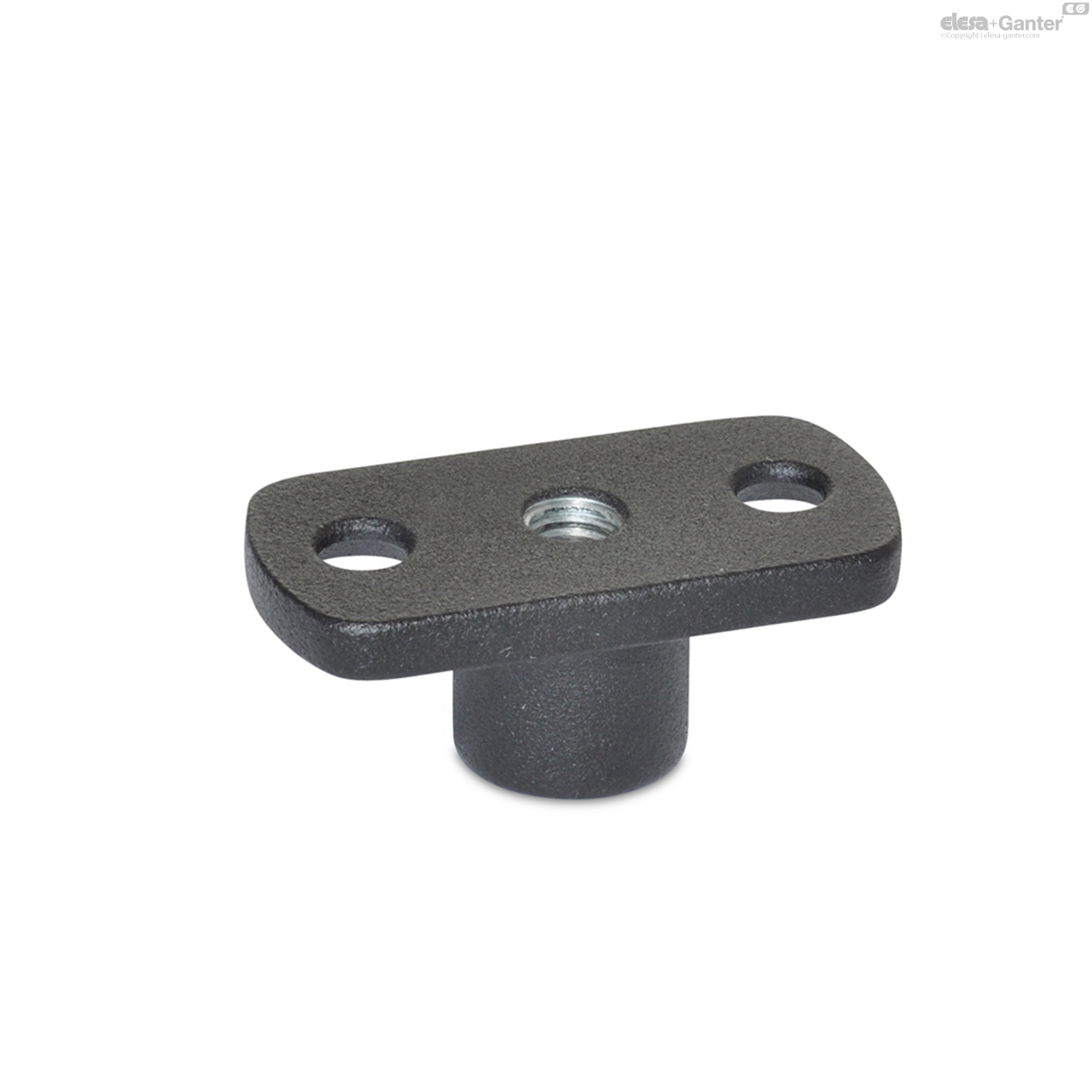

Steel fine casting
- zinc plated, blue passivated ZB
- zinc plated and plastic coated black, RAL 9005, textured finish SW
Threaded flanges GN 3490 are used in connection with T-slot profile systems and allow elements to be assembled on or underneath the profiles, e.g. levelling feet.
Depending on the threaded flange, thread size and thread depth dimensions that are available can exceed the dimensions of the profile groove.
