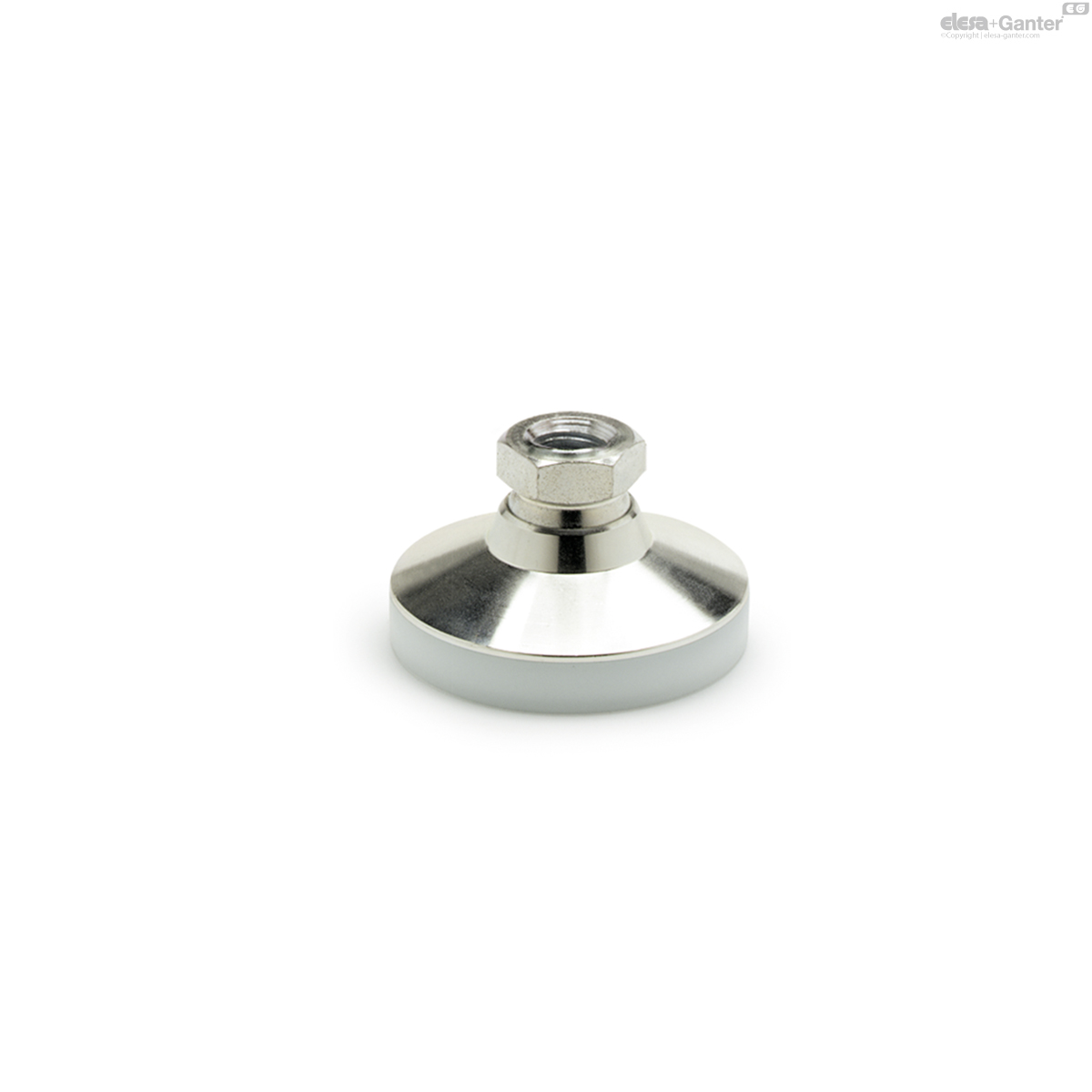

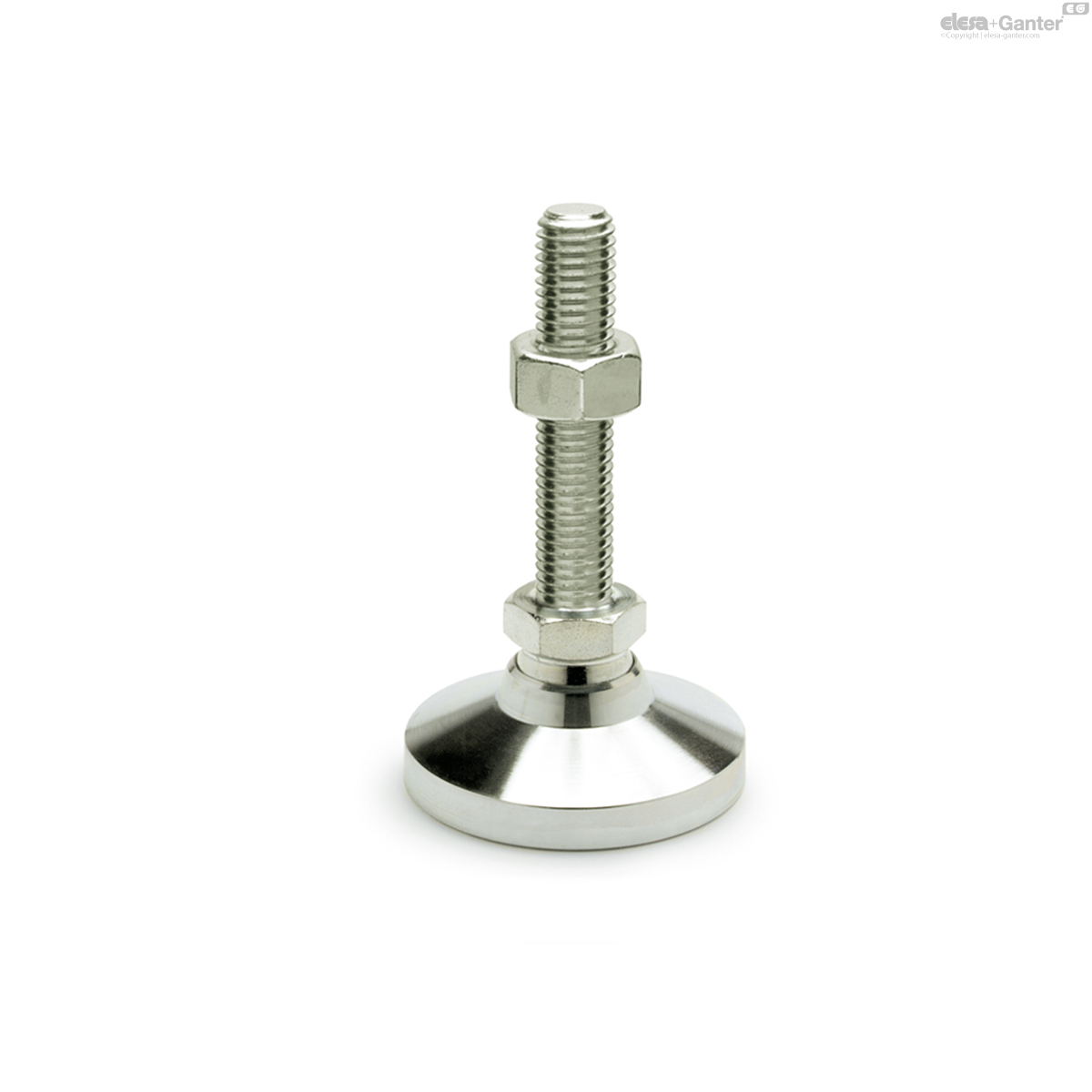

GN 343.6RVS stelvoeten

RVS stelvoeten

Verstelbare spindel

  • Icons/__logo__INOX__.png
  • Icons/__logo__ESD__.png
  • Icons/__logo__RoHS__.png
RVS stelvoeten
RVS stelvoeten
RVS stelvoeten

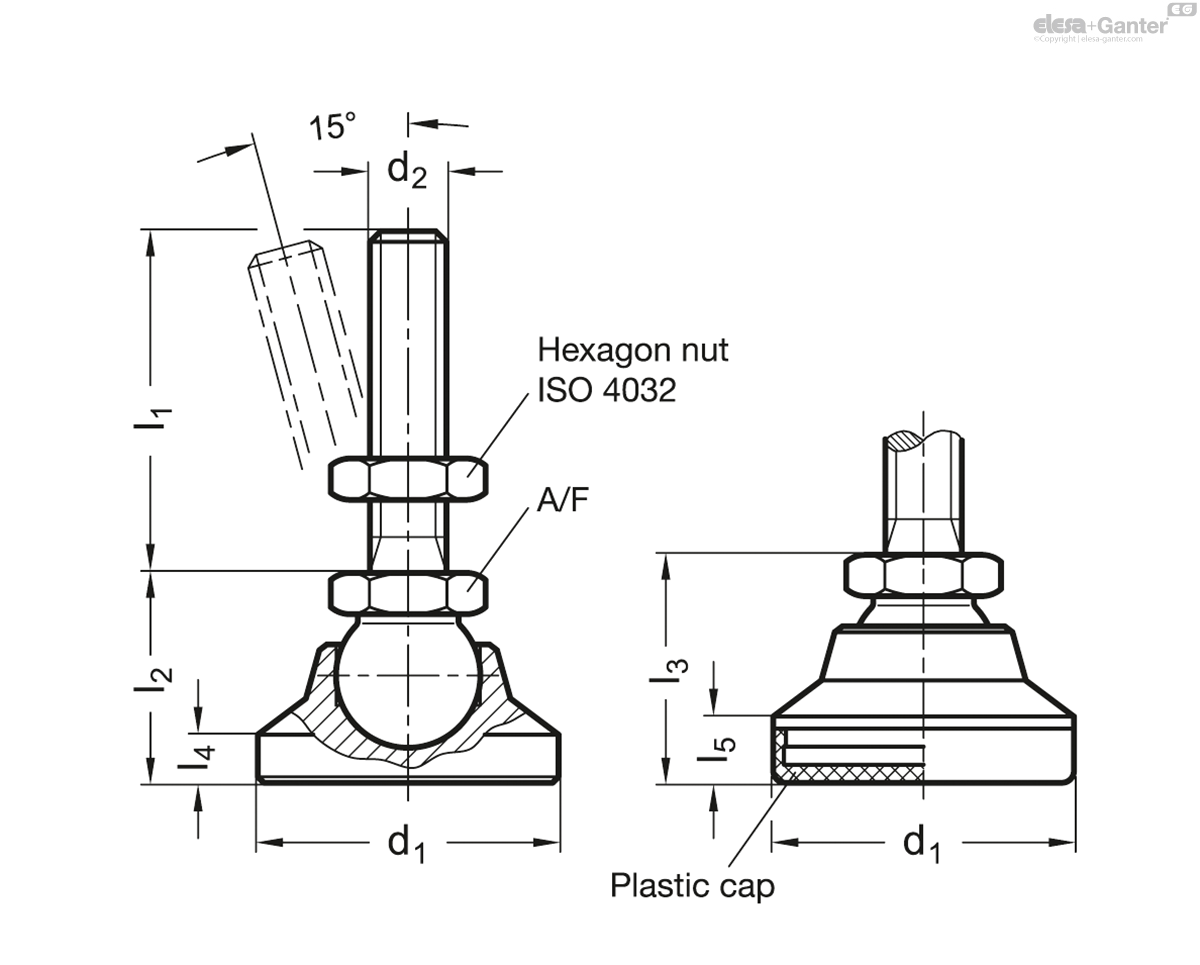

GN 343.6

Code
d1
d2
l1
l2
l3
l4
l5
A/F
Static load
in kN
GN 343.6-25-M6-40-KR
25
M 6
40
-
20.5
-
5.5
12
4
42
GN 343.6-25-M6-50-KR
25
M 6
50
-
20.5
-
5.5
12
4
44
GN 343.6-25-M6-63-KR
25
M 6
63
-
20.5
-
5.5
12
4
46
GN 343.6-25-M8-40-KR
25
M 8
40
-
20.5
-
5.5
12
7
50
GN 343.6-25-M8-50-KR
25
M 8
50
-
20.5
-
5.5
12
7
53
GN 343.6-25-M8-63-KR
25
M 8
63
-
20.5
-
5.5
12
7
57
GN 343.6-25-M10-50-KR
25
M 10
50
-
20.5
-
5.5
12
11
67
GN 343.6-25-M10-63-KR
25
M 10
63
-
20.5
-
5.5
12
11
73
GN 343.6-25-M10-80-KR
25
M 10
80
-
20.5
-
5.5
12
11
81
GN 343.6-32-M8-40-KR
32
M 8
40
-
24.5
-
6.5
12
7
77
GN 343.6-32-M8-50-KR
32
M 8
50
-
24.5
-
6.5
12
7
80
GN 343.6-32-M8-63-KR
32
M 8
63
-
24.5
-
6.5
12
7
84
GN 343.6-32-M10-50-KR
32
M 10
50
-
24.5
-
6.5
15
11
100
GN 343.6-32-M10-63-KR
32
M 10
63
-
24.5
-
6.5
15
11
106
GN 343.6-32-M10-80-KR
32
M 10
80
-
24.5
-
6.5
15
11
115
GN 343.6-32-M12-63-KR
32
M 12
63
-
24.5
-
6.5
15
16
121
GN 343.6-32-M12-80-KR
32
M 12
80
-
24.5
-
6.5
15
16
134
GN 343.6-32-M12-100-KR
32
M 12
100
-
24.5
-
6.5
15
16
148
GN 343.6-40-M8-50-KR
40
M 8
50
-
27.5
-
7.5
15
7
126
GN 343.6-40-M8-63-KR
40
M 8
63
-
27.5
-
7.5
15
7
130
GN 343.6-40-M8-80-KR
40
M 8
80
-
27.5
-
7.5
15
7
136
GN 343.6-40-M10-50-KR
40
M 10
50
-
27.5
-
7.5
15
11
142
GN 343.6-40-M10-63-KR
40
M 10
63
-
27.5
-
7.5
15
11
148
GN 343.6-40-M10-80-KR
40
M 10
80
-
27.5
-
7.5
15
11
157
GN 343.6-40-M12-63-KR
40
M 12
63
-
27.5
-
7.5
17
16
167
GN 343.6-40-M12-80-KR
40
M 12
80
-
27.5
-
7.5
17
16
177
GN 343.6-40-M12-100-KR
40
M 12
100
-
27.5
-
7.5
17
16
194
GN 343.6-50-M8-50-KR
50
M 8
50
-
29.5
-
8.5
15
7
190
GN 343.6-50-M8-63-KR
50
M 8
63
-
29.5
-
8.5
15
7
194
GN 343.6-50-M8-80-KR
50
M 8
80
-
29.5
-
8.5
15
7
200
GN 343.6-50-M10-50-KR
50
M 10
50
-
29.5
-
8.5
15
11
206
GN 343.6-50-M10-63-KR
50
M 10
63
-
29.5
-
8.5
15
11
212
GN 343.6-50-M10-80-KR
50
M 10
80
-
29.5
-
8.5
15
11
221
GN 343.6-50-M12-63-KR
50
M 12
63
-
29.5
-
8.5
17
16
230
GN 343.6-50-M12-80-KR
50
M 12
80
-
29.5
-
8.5
17
16
240
GN 343.6-50-M12-100-KR
50
M 12
100
-
29.5
-
8.5
17
16
257
GN 343.6-50-M16-63-KR
50
M 16
63
-
29.5
-
8.5
17
30
284
GN 343.6-50-M16-80-KR
50
M 16
80
-
29.5
-
8.5
17
30
306
GN 343.6-50-M16-100-KR
50
M 16
100
-
29.5
-
8.5
17
30
332
GN 343.6-60-M10-50-KR
60
M 10
50
-
37.5
-
10
17
11
359
GN 343.6-60-M10-63-KR
60
M 10
63
-
37.5
-
10
17
11
365
GN 343.6-60-M10-80-KR
60
M 10
80
-
37.5
-
10
17
11
373
GN 343.6-60-M12-63-KR
60
M 12
63
-
37.5
-
10
17
16
383
GN 343.6-60-M12-80-KR
60
M 12
80
-
37.5
-
10
17
16
393
GN 343.6-60-M12-100-KR
60
M 12
100
-
37.5
-
10
17
16
410
GN 343.6-60-M16-80-KR
60
M 16
80
-
37.5
-
10
24
30
455
GN 343.6-60-M16-100-KR
60
M 16
100
-
37.5
-
10
24
30
485
GN 343.6-60-M16-125-KR
60
M 16
125
-
37.5
-
10
24
30
514
GN 343.6-60-M20-98-KR
60
M 20
98
-
37.5
-
10
24
45
575
GN 343.6-60-M20-138-KR
60
M 20
138
-
37.5
-
10
24
45
656
GN 343.6-60-M20-158-KR
60
M 20
158
-
37.5
-
10
24
45
700
GN 343.6-60-M24-98-KR
60
M 24
98
-
37.5
-
10
24
45
710
GN 343.6-60-M24-138-KR
60
M 24
138
-
37.5
-
10
24
45
824
GN 343.6-60-M24-158-KR
60
M 24
158
-
37.5
-
10
24
45
885
