Technical datasheet
GN 323-BSchijfhandwielen
Zonder spiebaan
Aluminium, zwart, poedercoated
|
Code
|
d1
|
d2 H7
Bore |
b
|
d3
|
l1
|
l2 ≈
|
l3 ≈
|
r
|
Ø Handle GN 798
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 323-80-B10-A
|
80
|
10
|
13
|
26
|
16
|
26
|
44
|
33.5
|
-
|
133
|
|
GN 323-80-B10-R
|
80
|
10
|
13
|
26
|
16
|
26
|
44
|
33.5
|
16
|
155
|
|
GN 323-80-B12-A
|
80
|
12
|
13
|
26
|
16
|
26
|
44
|
33.5
|
-
|
131
|
|
GN 323-80-B12-R
|
80
|
12
|
13
|
26
|
16
|
26
|
44
|
33.5
|
16
|
160
|
|
GN 323-100-B10-A
|
100
|
10
|
14
|
28
|
17
|
30
|
58.5
|
42.5
|
-
|
150
|
|
GN 323-100-B10-R
|
100
|
10
|
14
|
28
|
17
|
30
|
58.5
|
42.5
|
18
|
210
|
|
GN 323-100-B12-A
|
100
|
12
|
14
|
28
|
17
|
30
|
58.5
|
42.5
|
-
|
214
|
|
GN 323-100-B12-R
|
100
|
12
|
14
|
28
|
17
|
30
|
58.5
|
42.5
|
18
|
216
|
|
GN 323-125-B12-A
|
125
|
12
|
15
|
31
|
18
|
33
|
61.5
|
54
|
-
|
316
|
|
GN 323-125-B12-R
|
125
|
12
|
15
|
31
|
18
|
33
|
61.5
|
54
|
22
|
380
|
|
GN 323-125-B14-A
|
125
|
14
|
15
|
31
|
18
|
33
|
61.5
|
54
|
-
|
300
|
|
GN 323-125-B14-R
|
125
|
14
|
15
|
31
|
18
|
33
|
61.5
|
54
|
22
|
350
|
|
GN 323-140-B14-A
|
140
|
14
|
16.5
|
36
|
19
|
36
|
76.5
|
61
|
-
|
431
|
|
GN 323-140-B14-R
|
140
|
14
|
16.5
|
36
|
19
|
36
|
76.5
|
61
|
24
|
438
|
|
GN 323-140-B16-A
|
140
|
16
|
16.5
|
36
|
19
|
36
|
76.5
|
61
|
-
|
427
|
|
GN 323-140-B16-R
|
140
|
16
|
16.5
|
36
|
19
|
36
|
76.5
|
61
|
24
|
507
|
|
GN 323-160-B14-A
|
160
|
14
|
18
|
36
|
20
|
39
|
76.5
|
71
|
-
|
570
|
|
GN 323-160-B14-R
|
160
|
14
|
18
|
36
|
20
|
39
|
76.5
|
71
|
24
|
660
|
|
GN 323-160-B16-A
|
160
|
16
|
18
|
36
|
20
|
39
|
76.5
|
71
|
-
|
560
|
|
GN 323-160-B16-R
|
160
|
16
|
18
|
36
|
20
|
39
|
76.5
|
71
|
24
|
643
|
|
GN 323-200-B18-A
|
200
|
18
|
20.5
|
45
|
24
|
45
|
86.5
|
89
|
-
|
885
|
|
GN 323-200-B18-R
|
200
|
18
|
20.5
|
45
|
24
|
45
|
86.5
|
89
|
25
|
1051
|
|
GN 323-200-B20-A
|
200
|
20
|
20.5
|
45
|
24
|
45
|
86.5
|
89
|
-
|
875
|
|
GN 323-200-B20-R
|
200
|
20
|
20.5
|
45
|
24
|
45
|
86.5
|
89
|
25
|
1021
|
|
GN 323-250-B22-A
|
250
|
22
|
23
|
48
|
28
|
51
|
86.5
|
113
|
-
|
1500
|
|
GN 323-250-B22-R
|
250
|
22
|
23
|
48
|
28
|
51
|
86.5
|
113
|
25
|
1671
|
|
GN 323-250-B26-A
|
250
|
26
|
23
|
48
|
28
|
51
|
86.5
|
113
|
-
|
1480
|
|
GN 323-250-B26-R
|
250
|
26
|
23
|
48
|
28
|
51
|
86.5
|
113
|
25
|
1536
|
Bore codes
Bore codes
- Version B: Without keyway

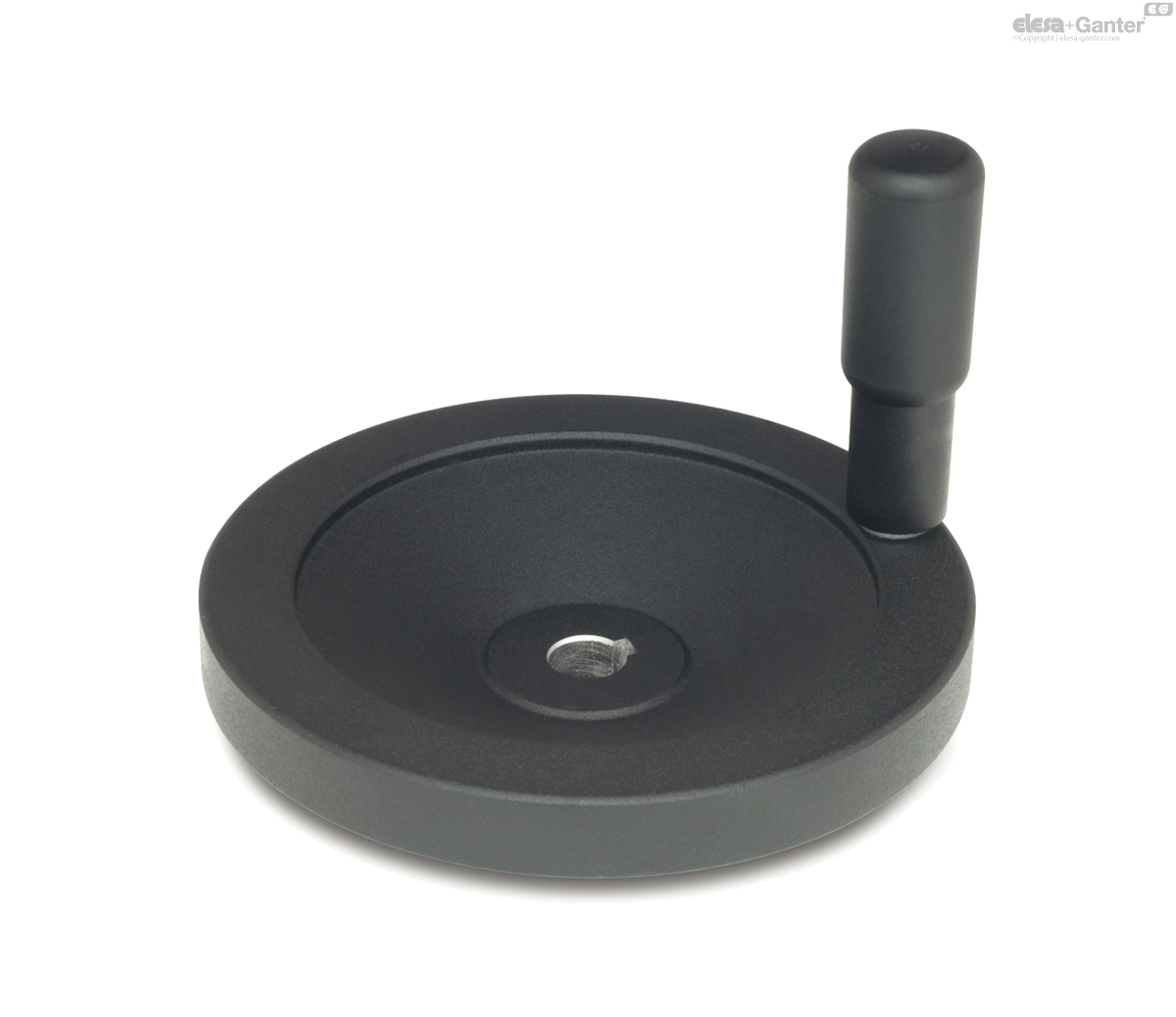

- Version K: With keyway DIN 6885-1 P9
Types
Types
- Type A: Without handle
- Type R: With revolving handle
Wheel body
Wheel body
Aluminum
- Hub machined
- Rim
- Turned on all sides
- Radial and axial runout < 0,4
- Completely powder coated
- Black, textured finish
Revolving handle GN 798
Revolving handle GN 798
Plastic, Polyamide (PA)
- Black, matte
- Spindle steel
- Zinc plated, blue passivated
Disk handwheels GN 323 have recessed grips at their back.
- GN 184 Countersunk Washers (for Axial Fixing)
- Keyway P9 DIN 6885-1
- Cross Holes GN 110
- ISO-Fundamental Tolerances
