Technical datasheet

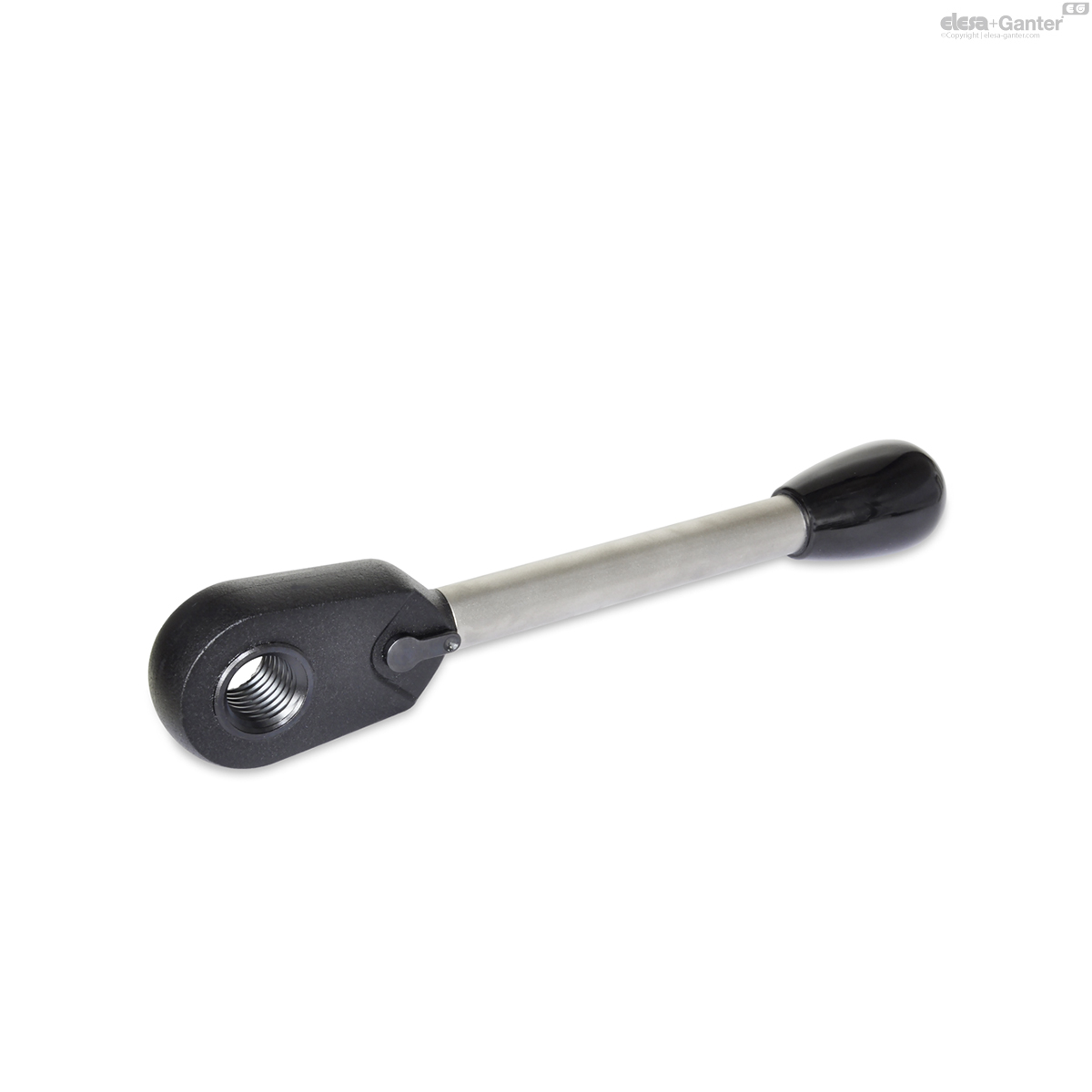

GN 316Ratelspanner

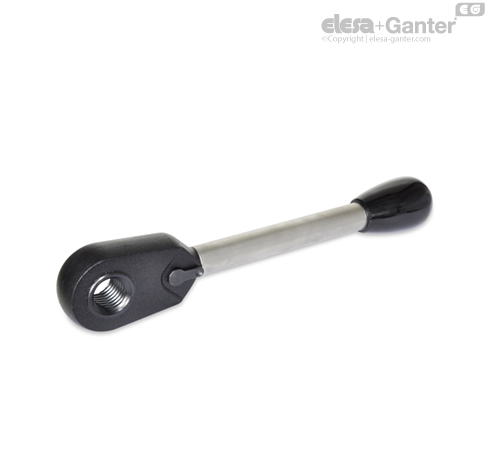

Ratelspanners — Version M
Behuizing staal / as roestvrij staal
GN 316
|

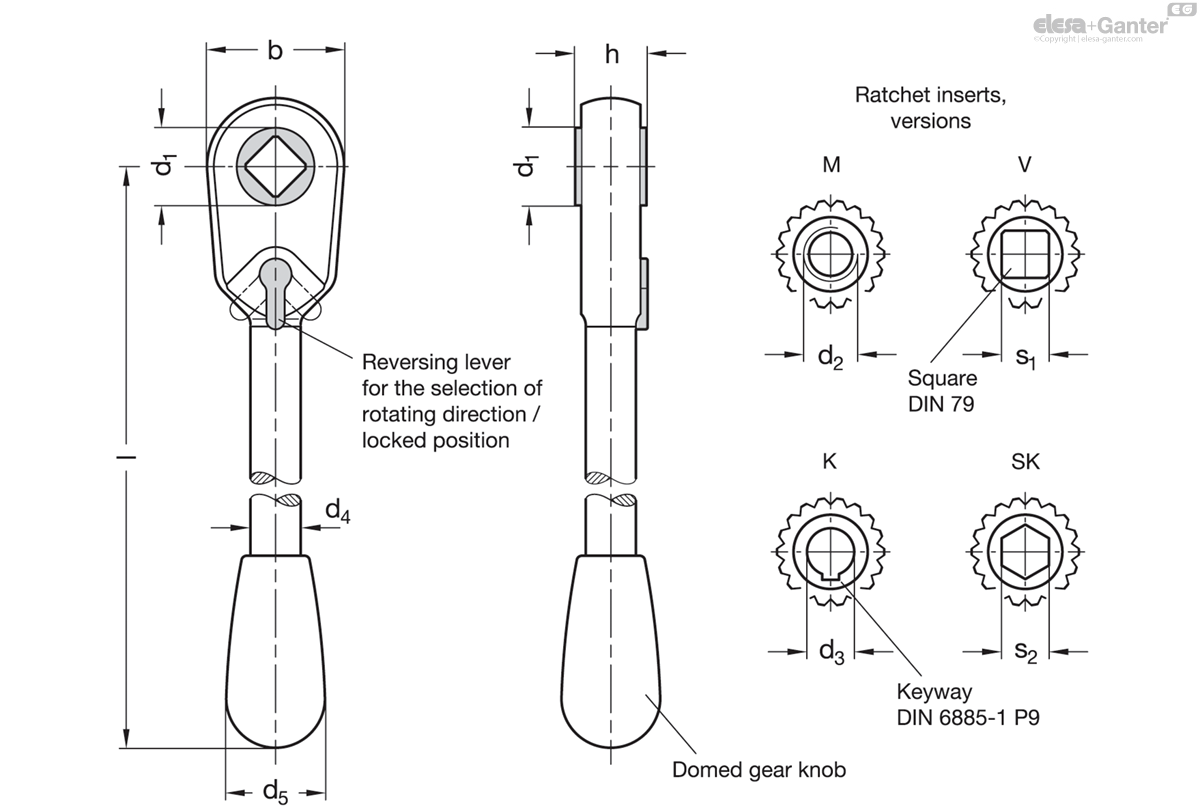

Code
|
d1
Ø Insert |
d2
Thread |
d3 H7 Bore with keyway
|
s1 Square
|
s2 Hex
|
b
|
d4
|
d5
|
h
|
Length l
|
Max. torque
in Nm |
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12
|
M 8
|
-
|
-
|
-
|
22
|
9
|
20
|
11
|
118
|
40
|
89
| ||
|
17
|
M 10
|
-
|
-
|
-
|
30
|
11
|
26
|
14
|
156
|
70
|
190
| ||
|
17
|
M 12
|
-
|
-
|
-
|
30
|
11
|
26
|
14
|
156
|
70
|
180
| ||
|
22
|
M 14
|
-
|
-
|
-
|
39.5
|
14
|
33
|
17
|
187
|
130
|
97
| ||
|
22
|
M 16
|
-
|
-
|
-
|
39.5
|
14
|
33
|
17
|
187
|
130
|
380
| ||
|
26
|
M 20
|
-
|
-
|
-
|
46
|
17
|
33
|
22
|
219
|
180
|
602
|
Housing
Housing
Steel
Powder coated
Black matte, textured finish
Shaft
Shaft
Stainless steel AISI 303
Matte shot-blasted
Wearing parts
Wearing parts
Steel, hardened
Domed gear knobs I.222-N
Domed gear knobs I.222-N
Plastic, phenolic resin (PF)
Black, shiny finish
Ratchet spanners GN 316 are robust, easy to handle and have an appropriate and attractive design.
Ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a 'stationary' tool.Various different versions of ratchet insert are available and these can be exchanged as required by loosening the retaining screw and removing the cover plate.
The ratchet action is deactivated when the reversing lever is in the locked position (central position), allowing torque to be applied in both directions.
- GN 184 Countersunk Washers (for Axial Fixing)
- Other inserts
