GN 282-SDraaibare klemconnectorverbindingen

Traploze aanpassing

Aluminium

  • Icons/__logo__RoHS__.png
pdf Other documents
Traploze aanpassing
Traploze aanpassing
GN 282-S
Traploze aanpassing
GN 282-T
Verstelling met 15° verdeling (vertanding)
SW - RAL 9005
BL - Plain finish

GN 282-S

Reset
Code
d1
Bore
b Swivel width
d2
k
l1
l2
m1
m2
t
x1
x2
y1
GN 282-B20-S-2-BL
B 20
40
6.5
42.5
104.5
52
32.5
72
7
60
42
60
GN 282-B25-S-2-BL
B 25
40
6.5
42.5
104.5
52
32.5
72
7
60
42
60
GN 282-B30-S-2-BL
B 30
40
6.5
42.5
104.5
52
32.5
72
7
60
42
60
GN 282-B40-S-2-BL
B 40
65
11
74
167
77.5
52
115
14
105
74
105
GN 282-B42-S-2-BL
B 42
65
11
74
167
77.5
52
115
14
105
74
105
GN 282-B45-S-2-BL
B 45
65
11
74
167
77.5
52
115
14
105
74
105
GN 282-B48-S-2-BL
B 48
65
11
74
167
77.5
52
115
14
105
74
105
GN 282-B50-S-2-BL
B 50
65
11
74
167
77.5
52
115
14
105
74
105

Types

  • Type S: Stepless adjustment
  • Type T: Adjustment with 15° division (serration)

Identification no.

  • No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

  • Powder coated
  • Black, RAL 9005, textured finish SW
  • Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

Swivel clamp connector joints GN 282 are an assembly of of the swivel clamp connectors GN 272 and GN 276.

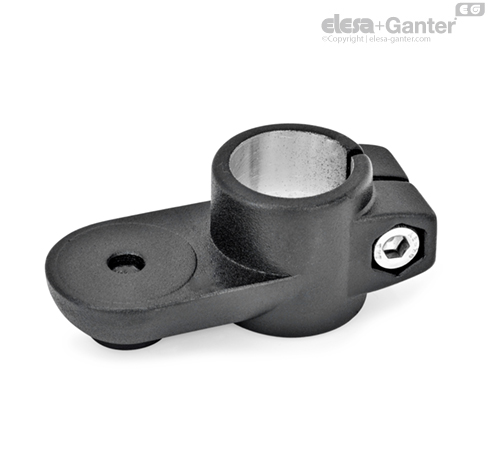

For the version with stepless adjustment (Type S) swivel clamp connectors with a centring step are used.

The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z1, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.

  • GN 911 Adjustable Hand Levers
