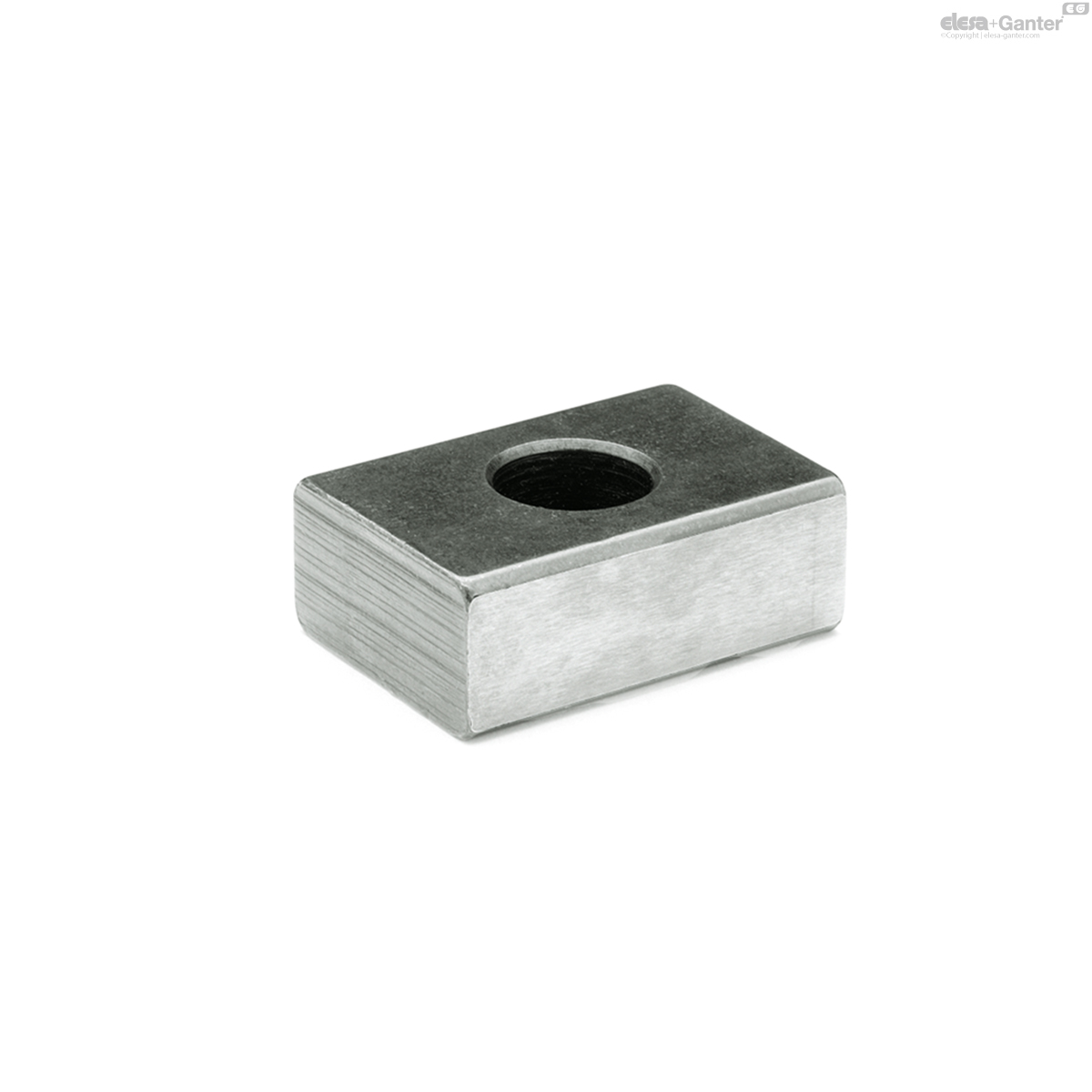

GN 230Vlakke T-moeren

Vlakke T-moeren

  • Icons/__logo__RoHS__.png
Vlakke T-moeren
Vlakke T-moeren

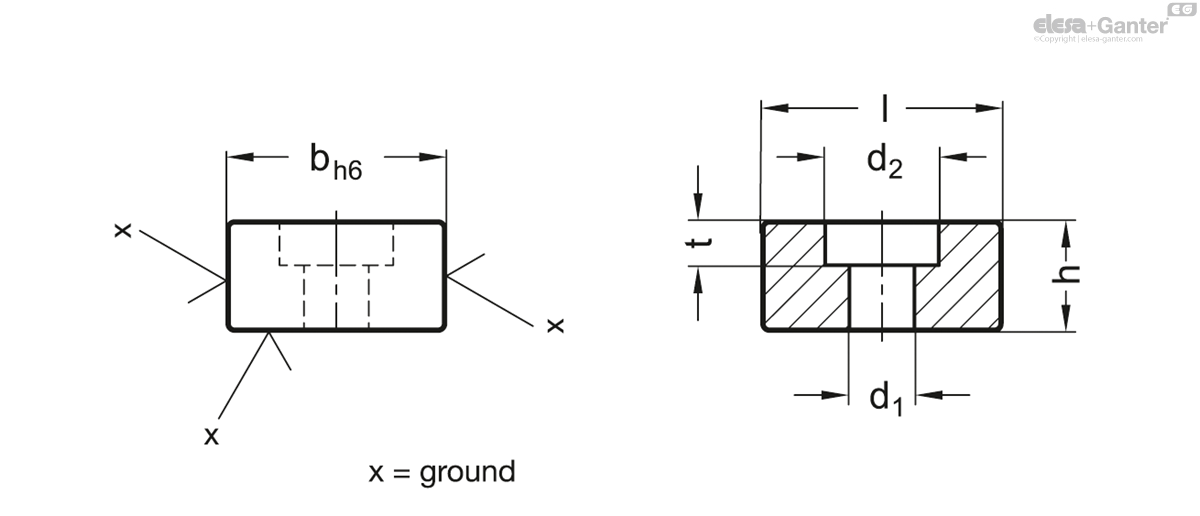

GN 230

Code
b h6
d1
d2
h
l
t
For screws
DIN 84
DIN 912
10
4.5
8
8
20
4.3
M4 x 10
10
12
5.5
10
8
20
5.3
M5x12
9
14
6.6
11
10
22
6.3
M6x16
19
16
6.6
11
10
22
6.3
M6x16
20
18
6.6
11
10
22
6.3
M6x16
25
20
6.6
11
10
22
6.3
M6x16
28
22
6.6
11
12
32
6.3
M6x16
59

Steel

  • case hardened
  • blackened

Shallow T-nuts GN 230 are used for aligning and positioning of jigs and fixtures on machining tables with T-slots DIN 650.

For this purpose they are inserted into the aligning slots of the jig or fixture.
