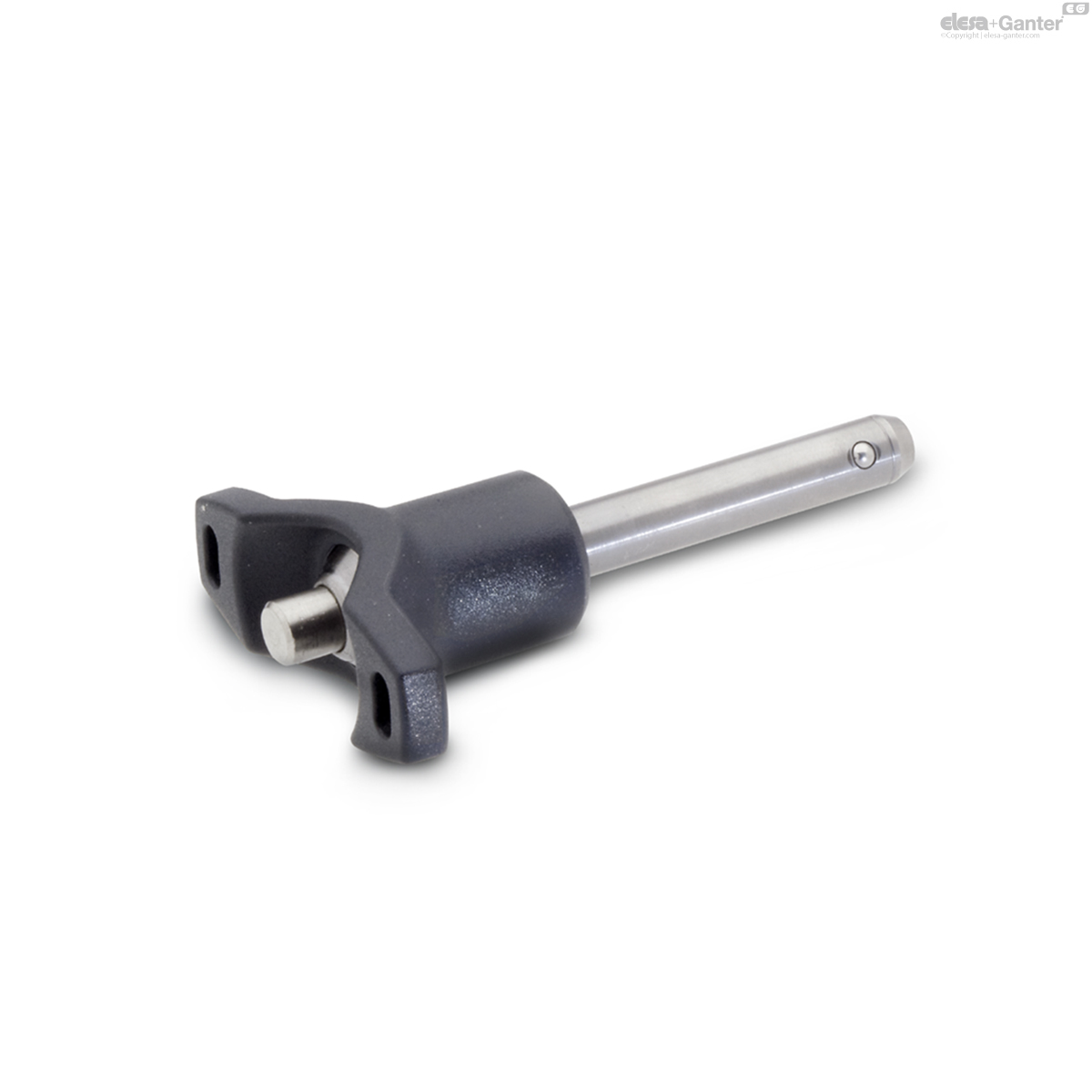

GN 113.7Kogelvergrendelpennen

Kogelvergrendelpennen

Pen roestvrij staal AISI 303, met T-greep

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Kogelvergrendelpennen
Kogelvergrendelpennen

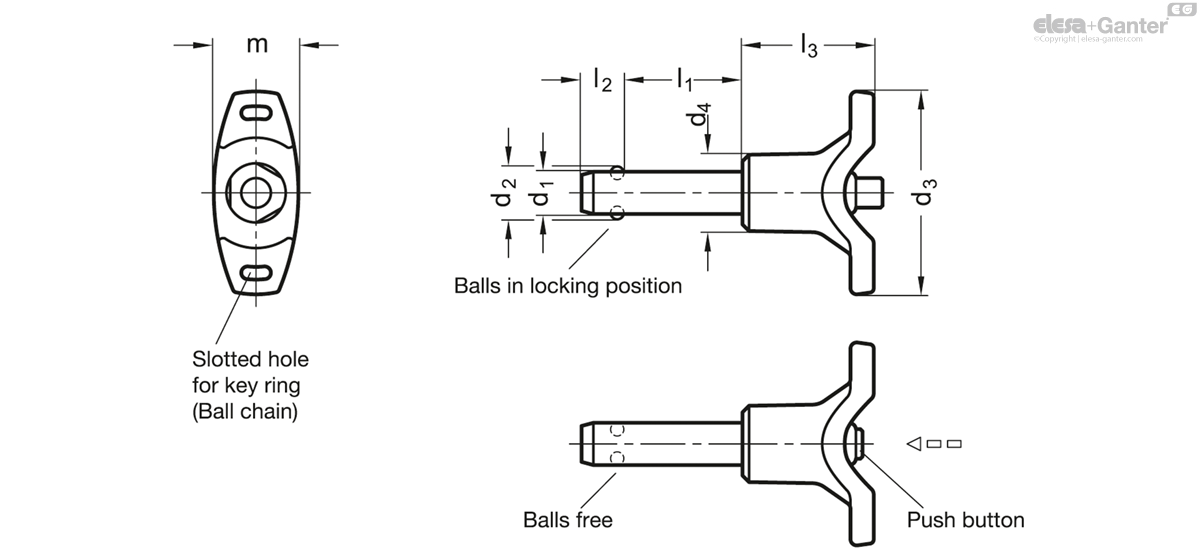

GN 113.7

Code
d1 -0.04/-0.08
l1 +0.6
d2
d3
d4
l2 ±1
l3
m
Location
bore H11
Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
5
10
5.5
40
13.5
6
25
15.5
5
14
14
5
15
5.5
40
13.5
6
25
15.5
5
14
14
5
20
5.5
40
13.5
6
25
15.5
5
14
15
5
25
5.5
40
13.5
6
25
15.5
5
14
16
5
30
5.5
40
13.5
6
25
15.5
5
14
17
5
35
5.5
40
13.5
6
25
15.5
5
14
17
5
40
5.5
40
13.5
6
25
15.5
5
14
18
5
45
5.5
40
13.5
6
25
15.5
5
14
18
5
50
5.5
40
13.5
6
25
15.5
5
14
19
5
60
5.5
40
13.5
6
25
15.5
5
14
20
5
70
5.5
40
13.5
6
25
15.5
5
14
22
5
80
5.5
40
13.5
6
25
15.5
5
14
23
6
10
7
40
13.5
7.1
25
15.5
6
21
15
6
15
7
40
13.5
7.1
25
15.5
6
21
16
6
20
7
40
13.5
7.1
25
15.5
6
21
16
6
25
7
40
13.5
7.1
25
15.5
6
21
17
6
30
7
40
13.5
7.1
25
15.5
6
21
18
6
35
7
40
13.5
7.1
25
15.5
6
21
20
6
40
7
40
13.5
7.1
25
15.5
6
21
21
6
45
7
40
13.5
7.1
25
15.5
6
21
22
6
50
7
40
13.5
7.1
25
15.5
6
21
23
6
60
7
40
13.5
7.1
25
15.5
6
21
24
6
70
7
40
13.5
7.1
25
15.5
6
21
26
6
80
7
40
13.5
7.1
25
15.5
6
21
28
8
10
9.5
48
18
8.2
31
20.5
8
38
35
8
15
9.5
48
18
8.2
31
20.5
8
38
37
8
20
9.5
48
18
8.2
31
20.5
8
38
39
8
25
9.5
48
18
8.2
31
20.5
8
38
40
8
30
9.5
48
18
8.2
31
20.5
8
38
43
8
35
9.5
48
18
8.2
31
20.5
8
38
45
8
40
9.5
48
18
8.2
31
20.5
8
38
46
8
45
9.5
48
18
8.2
31
20.5
8
38
48
8
50
9.5
48
18
8.2
31
20.5
8
38
50
8
60
9.5
48
18
8.2
31
20.5
8
38
53
8
70
9.5
48
18
8.2
31
20.5
8
38
57
8
80
9.5
48
18
8.2
31
20.5
8
38
61
8
90
9.5
48
18
8.2
31
20.5
8
38
64
8
100
9.5
48
18
8.2
31
20.5
8
38
68
10
15
12
48
18
9.6
31
20.5
10
60
42
10
20
12
48
18
9.6
31
20.5
10
60
46
10
25
12
48
18
9.6
31
20.5
10
60
48
10
30
12
48
18
9.6
31
20.5
10
60
52
10
35
12
48
18
9.6
31
20.5
10
60
54
10
40
12
48
18
9.6
31
20.5
10
60
57
10
45
12
48
18
9.6
31
20.5
10
60
60
10
50
12
48
18
9.6
31
20.5
10
60
63
10
60
12
48
18
9.6
31
20.5
10
60
69
10
70
12
48
18
9.6
31
20.5
10
60
74
10
80
12
48
18
9.6
31
20.5
10
60
80
10
90
12
48
18
9.6
31
20.5
10
60
86
10
100
12
48
18
9.6
31
20.5
10
60
92
10
110
12
48
18
9.6
31
20.5
10
60
98
10
120
12
48
18
9.6
31
20.5
10
60
104
12
20
14.5
58
24
10.6
36.5
27.5
12
87
89
12
25
14.5
58
24
10.6
36.5
27.5
12
87
94
12
30
14.5
58
24
10.6
36.5
27.5
12
87
98
12
35
14.5
58
24
10.6
36.5
27.5
12
87
103
12
40
14.5
58
24
10.6
36.5
27.5
12
87
107
12
45
14.5
58
24
10.6
36.5
27.5
12
87
111
12
50
14.5
58
24
10.6
36.5
27.5
12
87
115
12
60
14.5
58
24
10.6
36.5
27.5
12
87
124
12
70
14.5
58
24
10.6
36.5
27.5
12
87
132
12
80
14.5
58
24
10.6
36.5
27.5
12
87
141
12
90
14.5
58
24
10.6
36.5
27.5
12
87
149
12
100
14.5
58
24
10.6
36.5
27.5
12
87
157
12
110
14.5
58
24
10.6
36.5
27.5
12
87
166
12
120
14.5
58
24
10.6
36.5
27.5
12
87
175
16
30
19
58
24
14
36.5
27.5
16
155
130
16
35
19
58
24
14
36.5
27.5
16
155
138
16
40
19
58
24
14
36.5
27.5
16
155
146
16
45
19
58
24
14
36.5
27.5
16
155
153
16
50
19
58
24
14
36.5
27.5
16
155
166
16
60
19
58
24
14
36.5
27.5
16
155
176
16
70
19
58
24
14
36.5
27.5
16
155
192
16
80
19
58
24
14
36.5
27.5
16
155
206
16
90
19
58
24
14
36.5
27.5
16
155
226
16
100
19
58
24
14
36.5
27.5
16
155
242
16
110
19
58
24
14
36.5
27.5
16
155
258
16
120
19
58
24
14
36.5
27.5
16
155
273
16
130
19
58
24
14
36.5
27.5
16
155
289
16
140
19
58
24
14
36.5
27.5
16
155
305
16
150
19
58
24
14
36.5
27.5
16
155
320
20
50
25
80
34
20.5
46.5
38
20
244
306
20
60
25
80
34
20.5
46.5
38
20
244
324
20
70
25
80
34
20.5
46.5
38
20
244
354
20
80
25
80
34
20.5
46.5
38
20
244
373
20
90
25
80
34
20.5
46.5
38
20
244
403
20
100
25
80
34
20.5
46.5
38
20
244
225
20
110
25
80
34
20.5
46.5
38
20
244
421
20
120
25
80
34
20.5
46.5
38
20
244
451
20
130
25
80
34
20.5
46.5
38
20
244
500
20
140
25
80
34
20.5
46.5
38
20
244
523
20
150
25
80
34
20.5
46.5
38
20
244
548
25
50
30.8
80
34
22
46.5
38
25
386
404
25
60
30.8
80
34
22
46.5
38
25
386
442
25
70
30.8
80
34
22
46.5
38
25
386
480
25
80
30.8
80
34
22
46.5
38
25
386
516
25
90
30.8
80
34
22
46.5
38
25
386
557
25
100
30.8
80
34
22
46.5
38
25
386
594
25
110
30.8
80
34
22
46.5
38
25
386
633
25
120
30.8
80
34
22
46.5
38
25
386
671
25
130
30.8
80
34
22
46.5
38
25
386
709
25
140
30.8
80
34
22
46.5
38
25
386
746
25
150
30.8
80
34
22
46.5
38
25
386
786

Pin

Stainless steel AISI 303

T-Handle

Plastic (Polyamide PA)

  • Black
  • Temperature resistant up to 80 °C

Balls

Stainless steel AISI 420C

Pressure spring

Stainless steel German Material No. 14565

Ball lock pins GN 113.7 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).



Information

The load capacities specified in the table for the double sided shearing resistance (breaking strength) have been calculated or theoretically defined on the basis of DIN 50141.

At the same time, the endangered bolt cross-section S, according to a nearby sketch, was considered in two shear planes before breakage.

The details given on load rating are non-binding guide values without any liability. In general, they do not constitute a warranty of condition.

The user must determine whether the product is suitable for the intended purpose. Environmental factors can influence the specified values.

An appropriate safety factor must be taken into account in the design.

Load capacity F in kN ≈ double sided shearing resistance acc. DIN 50141 (breaking strength)

Gerelateerde producten
Staal

DIN 172-ST

Geleidebussen Boorbussen, met kraag
Staal

DIN 179-ST

Geleidebussen Boorbussen, zonder kraag
Spiraalvormige bevestigingskabels

GN 111.4

Spiraalvormige bevestigingskabels Kunststof, met twee sleutelringen
Kogelkettingen

GN 111.5

Kogelkettingen Roestvrij staal, met twee sleutelringen

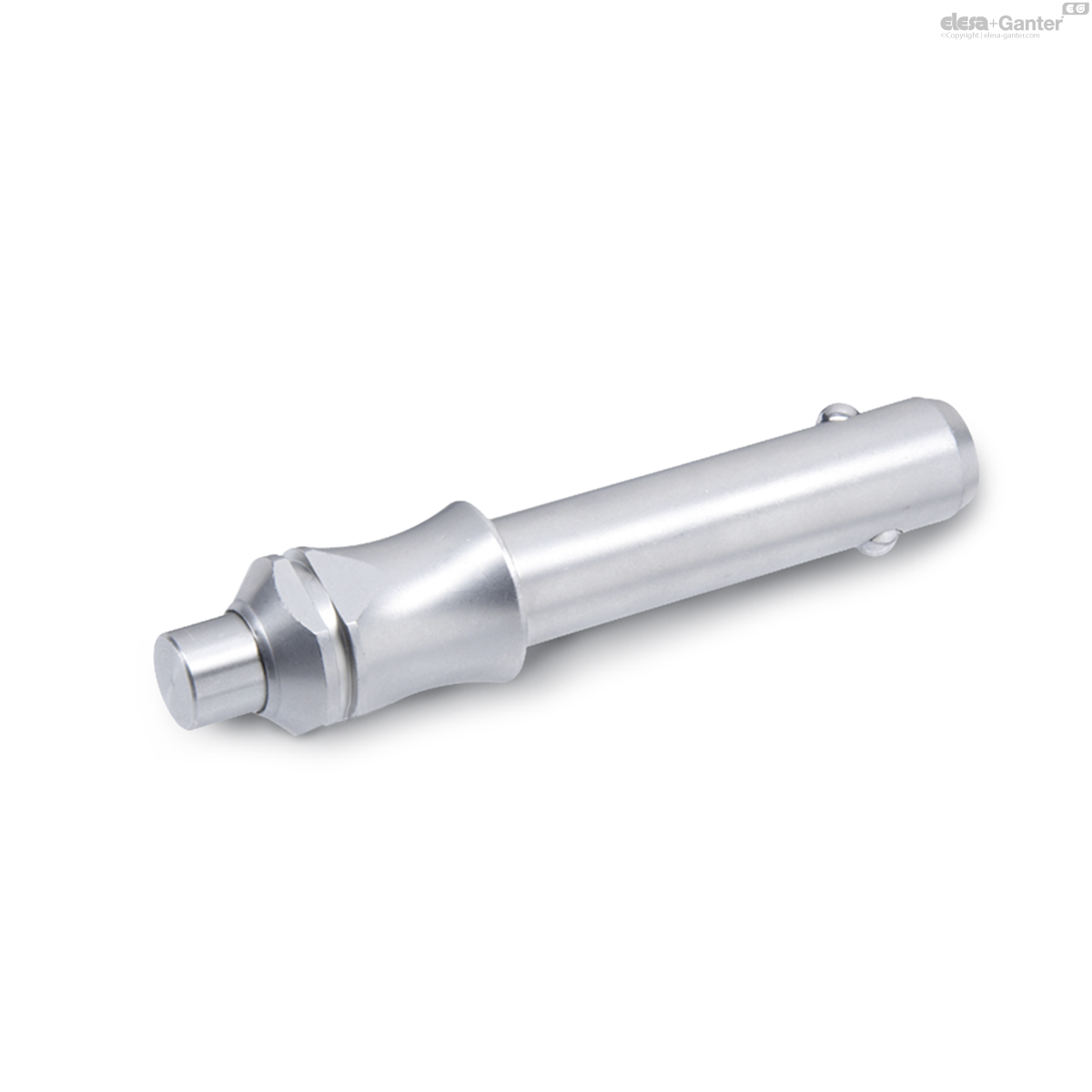

Roestvrijstalen kogelvergrendelpennen
