WAD.125Sluitringen

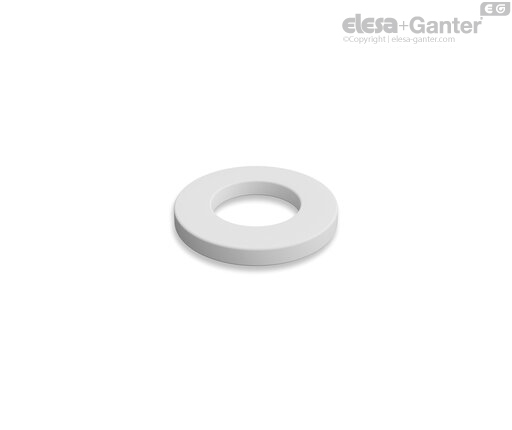

Sluitringen

Technopolymeer

Technical datasheet

WAD.125

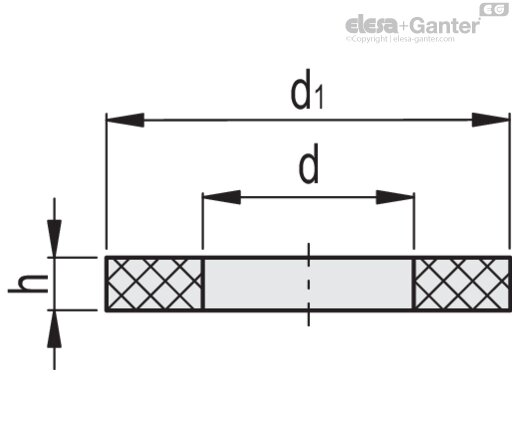

Code	Omschrijving	d	d₁	h
505301	WAD.125-4.3-TP-N	4.5	9	1	1
505302	WAD.125-5.3-TP-N	5.5	10	1	1
505303	WAD.125-6.4-TP-N	6.5	12	1.5	1
505304	WAD.125-8.4-TP-N	8.5	16	1.5	1
505305	WAD.125-10.5-TP-N	10.5	20	2	1
505306	WAD.125-13.0-TP-N	13	24	2.5	1
505307	WAD.125-17.0-TP-N	17	30	3	1.5

Main specifications
General information

Material

Polyamide based (PA) technopolymer, natural colour.

Features and applications

The washer is similar in shape and size to that specified in DIN 125 or ISO 7089.

It is made entirely from insulating material that is resistant to corrosion and chemicals. It is suitable for use in automotive applications, as well as in industry, aeronautics, electronics and in all cases where weight reduction is required.

The product is tested for mechanical and dimensional performance. Slight colour variations are perfectly normal and do not affect the quality of the product.
