Technical datasheet
VVH-12-T-NZuignappen
Natuurrubber, met steun
Diameter 12 mm, met of zonder steun, rubber
|

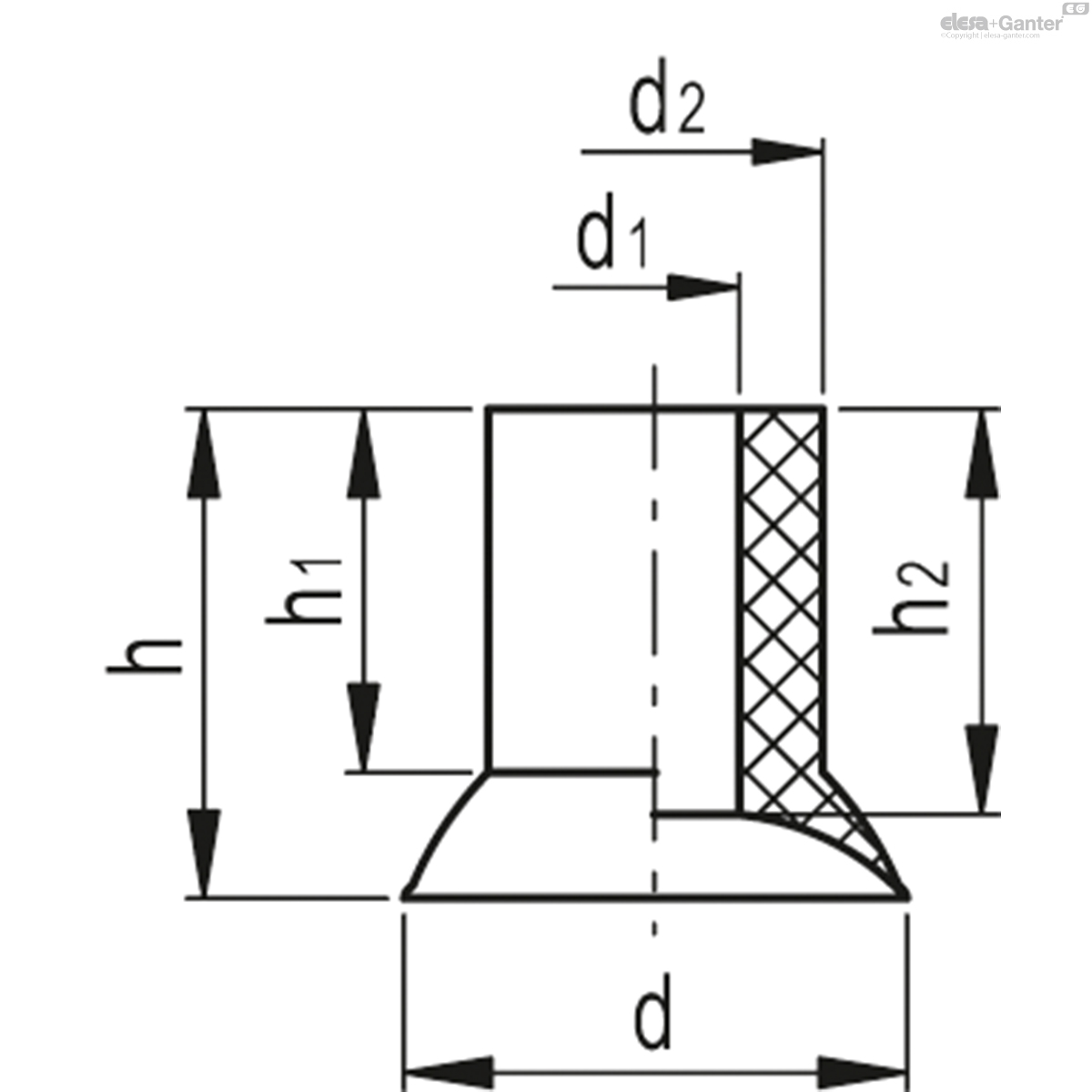

Code
|
Omschrijving
|
d
|
d1
|
h
|
h1
|
h2
|
h3
|
s
|
F*
[Kg] |
Volume#
[mm3] |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VV.52042
|
VVH-12-G1/8-T-N
|
12
|
G1/8
|
24
|
8
|
5
|
11
|
12
|
0.3
|
254
|
10
|
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).
Nickel-plated brass support.
Standard executions

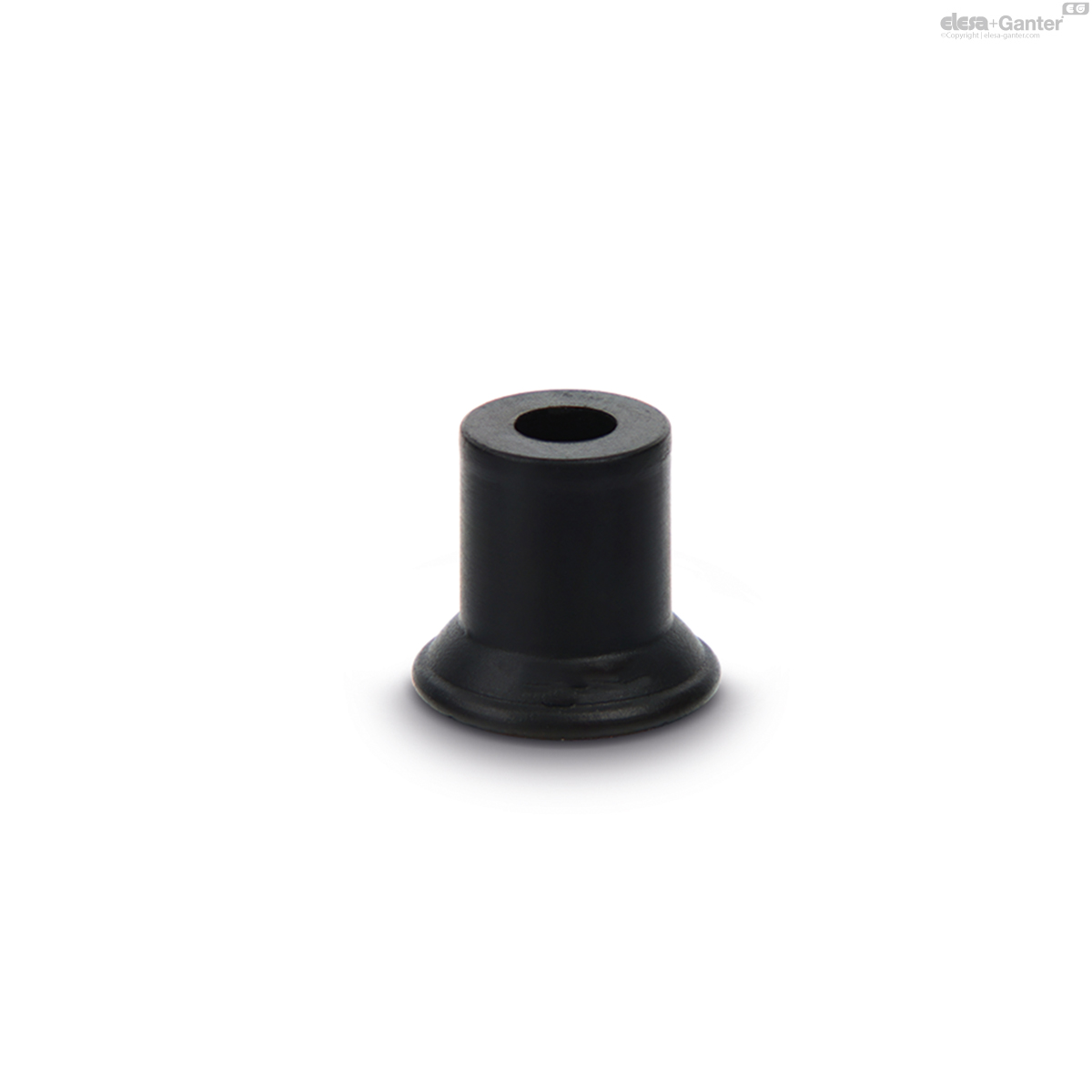

- VVH-12-A: oil-proof rubber, without support.
- VVH-12-N: natural rubber, without support.
- VVH-12-S: silicone rubber, without support.
- VVH-12-T-A: oil-proof rubber, with support.
- VVH-12-T-N: natural rubber, with support.
- VVH-12-T-S: silicone rubber, with support.
Features and applications
They can also be used in various sectors including electronics for gripping of electrical components, food packaging, and for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).
