VLS-SST-pVeiligheidsknoppen

Draadstang

Technopolymeer

Technical datasheet

VLS-SST-p

Reset

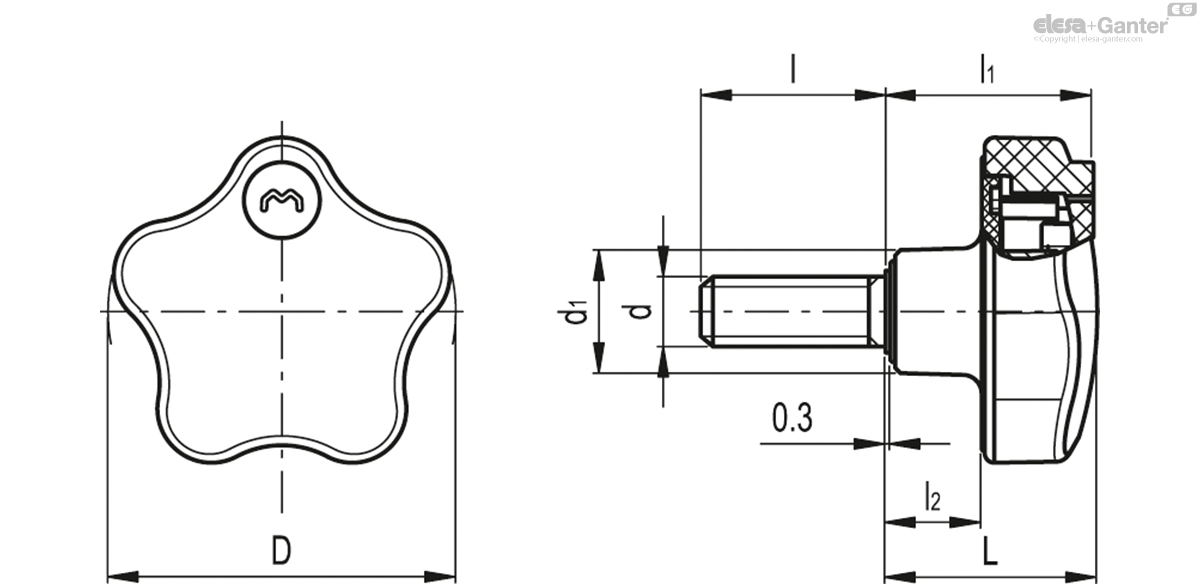

Code	Omschrijving	D	d_6g	L	d₁	l	l₁	l₂

76521	VLS.42-SST-p-M8x16	41.5	M8	30	16.5	16	29.5	14.5	25
76523	VLS.42-SST-p-M8x25	41.5	M8	30	16.5	25	29.5	14.5	33
76621	VLS.55-SST-p-M10x20	55	M10	33	19	20	32	15	54
76625	VLS.55-SST-p-M10x40	55	M10	33	19	40	32	15	63

* Keys are not supplied with the knobs, to be ordered separately.

Main specifications
General information

Lobe solid cap

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish, with security anti-intrusion-profiled key slot.

Flange

Technopolymer, ultrasonically welded.

Clamping element

Acetal resin based (POM) technopolymer, black colour, matte finish.

Standard executions

VLS-B: brass boss, threaded blind hole.

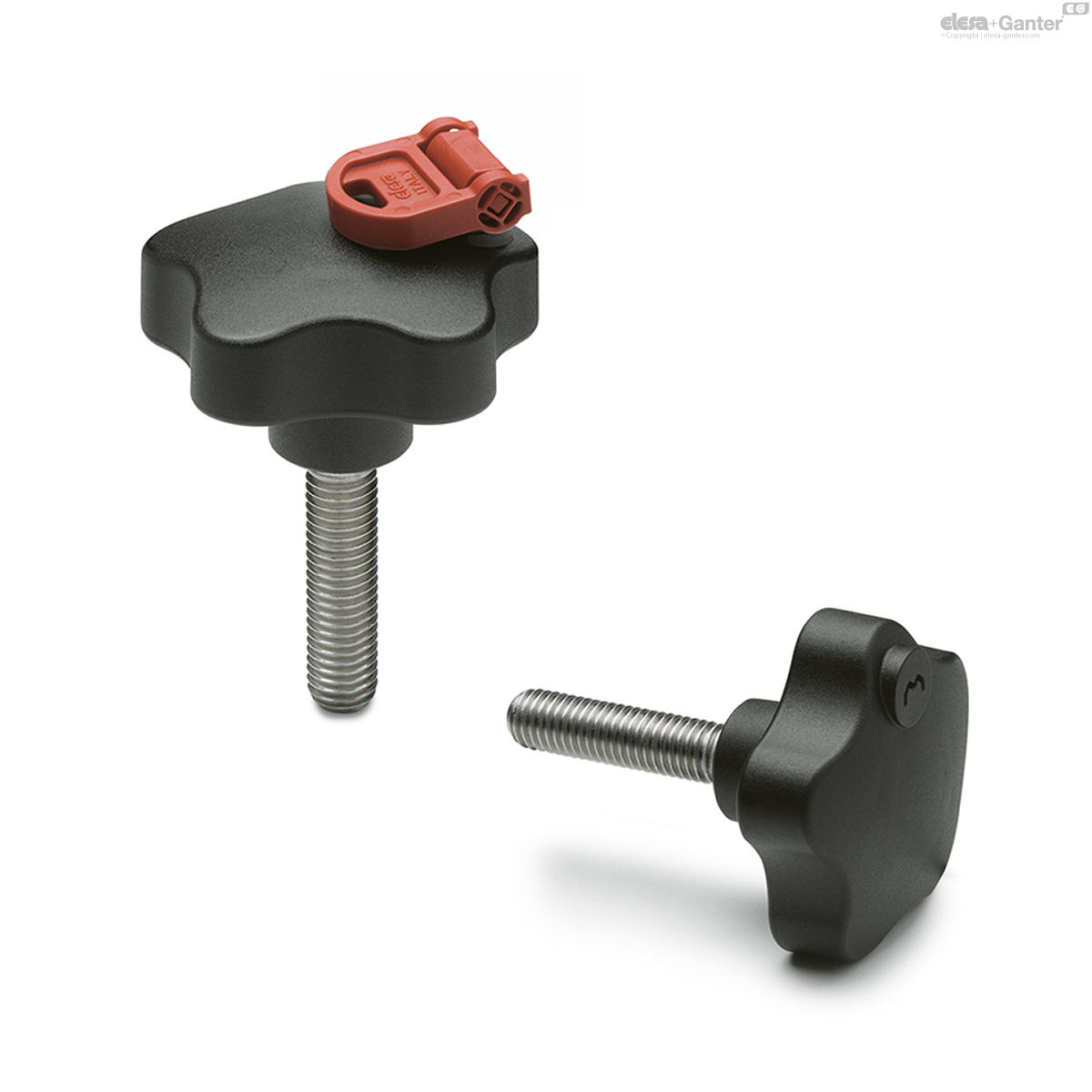

VLS-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

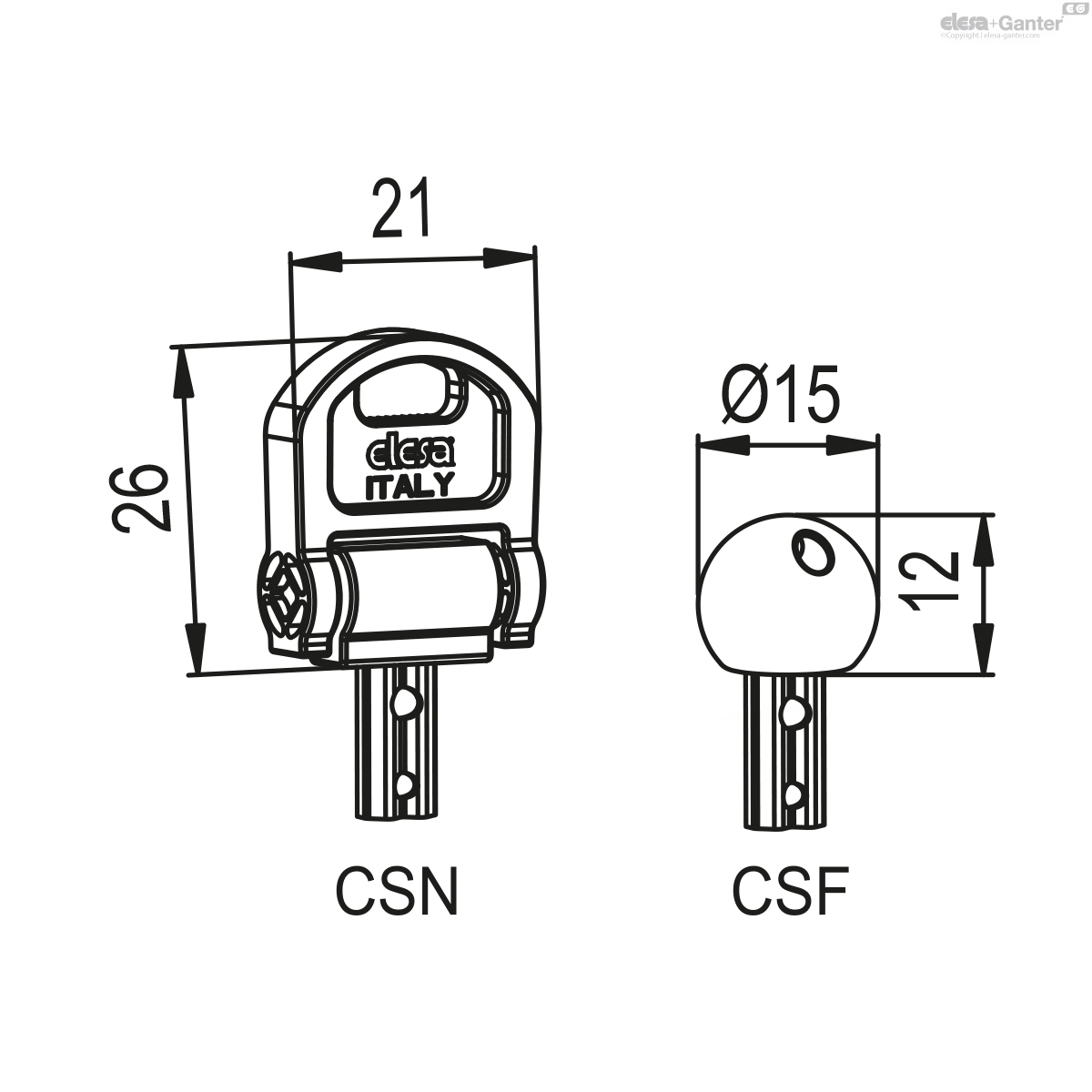

Security key (to be ordered separately)

CSN acetal resin based (POM) technopolymer fold-away key, red colour, anti-intrusion-profiled stainless steel insert.

CSF polyamide based (PA) technopolymer ball key, red colour, anti-intrusion-profiled stainless steel insert.

On request and for sufficient quantities the security keys can be supplied in black colour too.

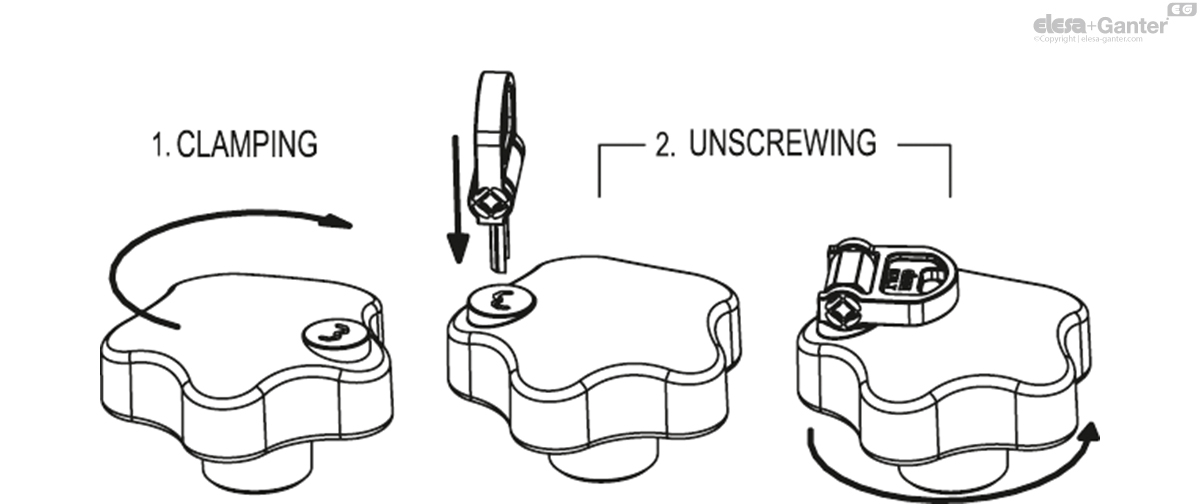

Security device operation

VLS. security lobe knobs have been designed to be unscrewed only by authorised people, provided with the security key. Without the security key, the knob turns without unscrewing.

Clamping: clamp the knob by screwing it as for a normal knob. Mind that the security key is not inserted.
Unscrewing: simply insert the security key (without turning it) and unscrew the knob.
